OPTICAL STANDARDS

What is the Difference: G.652.D vs. G.657.A1?

A technical comparison of the industry-standard G.652.D and the bend-insensitive G.657.A1 single-mode fibers.

G.652.D has been the industry standard for many years, but its inherent bend sensitivity became a problem in tight environments like racks, enclosures, and customer premises. G.657.A1 was developed specifically to solve these issues, offering a reduced bend radius that helps to maintain signal integrity in cramped spaces.

G.652.D (Standard SMF)

  • ✕
    Bend Sensitivity: High macrobending loss; signal failure occurs at radii below 30mm.
  • ✕
    Legacy Backbone: The global ‘workhorse’ optimized for long-haul and rural spans.
  • ✕
    Cost Leader: Most economical fiber due to massive economies of scale.
  • ✕
    Rigid Deployment: Best for straight, underground conduits and long-span aerials.

G.657.A1 (Bend-Insensitive)

  • ✓
    Bend Resilience: Maintains signal integrity at radii as small as 10mm.
  • ✓
    Backward Compatible: Fully splice-compatible with existing G.652.D networks.
  • ✓
    Trench-Assisted: Features a refractive ’trench’ to keep light trapped in the core.
  • ✓
    Urban Specialty: Ideal for complex FTTH, MDUs, and data center routing.

The Bend-Insensitivity Advantage

Comparing the mechanical and optical resilience of G.657.A1 fiber against standard G.652.D.

10mm

Minimum Bend Radius

0.25dB

Max Loss at 15mm Bend

100%

Backward Compatibility

35%

Lower Maintenance Cost

ITU-T Standard Tiers

Correct fiber choice balances the physical constraints of the installation environment with cost and compatibility.

GENERAL STANDARD

G.652.D

Industry Workhorse

The global standard for non-dispersion shifted fiber. Optimized for 1310nm operation with a full-spectrum window from 1260nm to 1625nm.

  • Zero dispersion at 1310 nm
  • Lowest initial purchase cost
  • Higher loss from macrobending
SCALEFIBRE STANDARD

G.657.A1

Bend Insensitive

The first tier of bend-insensitive fiber. Designed for urban distribution where tight corners and crowded ducts are frequent.

  • 10 mm minimum bend radius
  • Full backward compatibility
  • Reduces failure 'truck rolls'
ALSO AVAILABLE

G.657.A2

Extreme Resilience

Engineered for customer premises and high-density patching. Can be routed around door frames and wall cavities with zero signal impact.

  • 7.5 mm bend radius (G.657.A2)
  • Trench-assisted light confinement
  • Maximum installation flexibility

Evolution of Single-Mode Standards

From the birth of fiber to the bend-insensitive revolution.

1984
Birth of G.652

ITU-T introduces the first standard for non-dispersion-shifted fiber.

2000s
The LWP Breakthrough

G.652.D eliminates the ‘water peak’ at 1383nm, enabling full-spectrum CWDM.

2006
G.657 Established

The G.657 standard is born to support the global Fiber-to-the-Home (FTTH) expansion.

2023 - 2028
The Density Revolution

Adoption of 200-micron and 180-micron BI fibers to maximize conduit capacity for 5G and AI.

Where Standards Meet Reality

Strategic deployment based on physical constraints and bend requirements.

FTTH & Premise Installs
FTTH & Premise Installs

G.657.A1 is essential for navigating tight corners and compact ONT housings where G.652.D would suffer high macrobend loss.

Hyperscale Infrastructure
Hyperscale Infrastructure

Provides the resilience needed for high-density, high-count fiber cabling that must be routed through complex facility pathways.

Data Center Patching
Data Center Patching

Manages congestion within 19-inch racks and cable trays where tight bends and slack storage are unavoidable.

Macrobending Loss at 1625nm (dB)

Mechanical Resilience
G.657.A1 exhibits massive improvements in loss over G.652.D at tight 15mm bends.
Product Image
Featured Solution

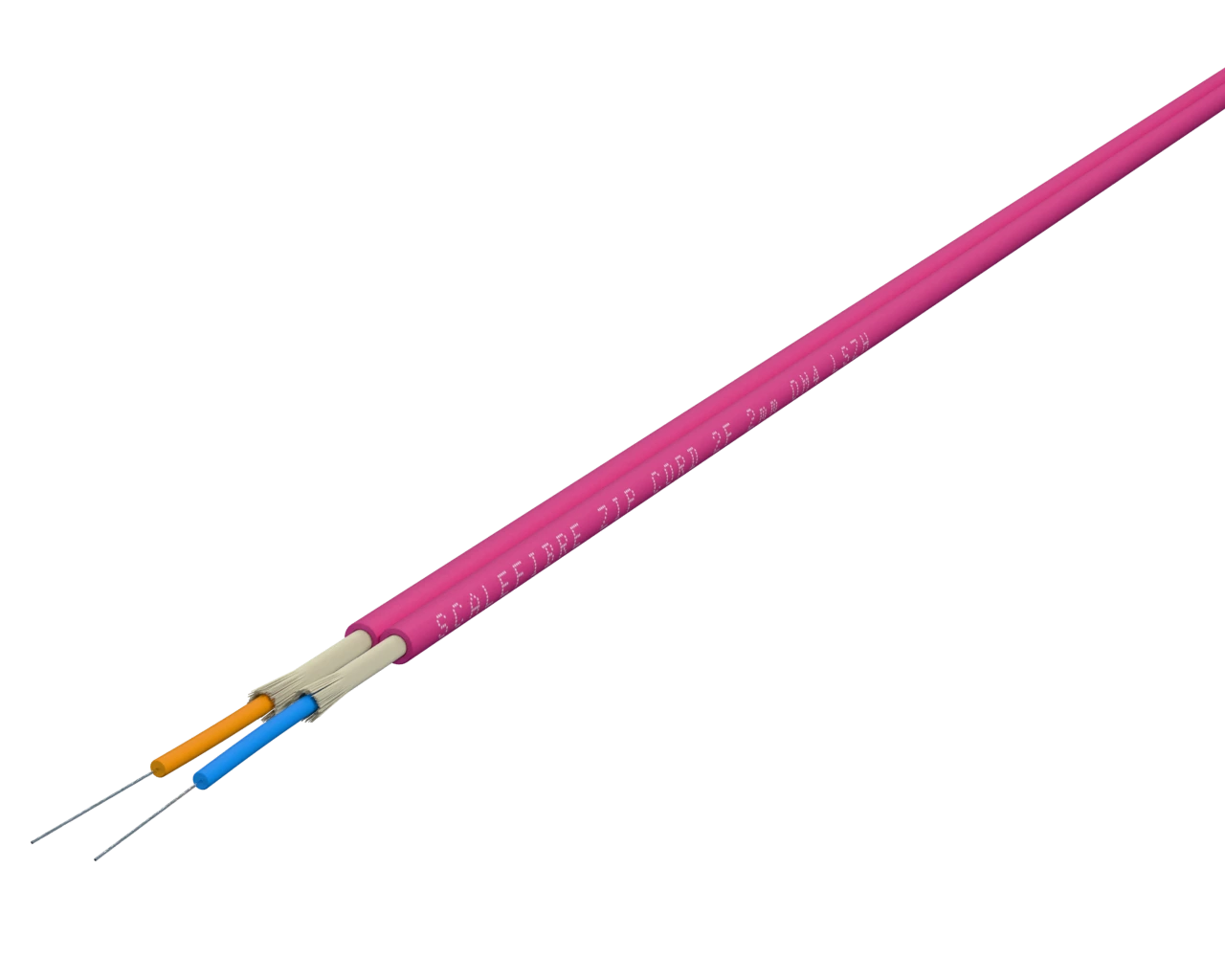

Figure-8 Duplex Fibre Patch Leads, 2mm

Figure-8 duplex patch cords with 2mm round cable, available in multi-mode and single-mode optical fibre types, supporting everything from legacy networks to modern 800G infrastructure.

View G.657.A1 Patch Cords

Technical FAQ

+ Can I splice G.652.D to G.657.A1?
Yes. G.657.A1 is designed for full backward compatibility. While they can be fused, using core-alignment splicing is critical to mitigate potential losses caused by subtle differences in their internal structures.
+ What is the difference between G.657.A1 and G.657.A2?
The primary difference is the minimum bend radius. G.657.A1 has a minimum bend radius of 10mm, while G.657.A2 is more resilient with a 7.5mm limit. A2 is essentially a more flexible version of A1 with the same backward compatibility. For more detail you can see this article on the differences between G.657.A1 and G.657.A2
+ Why not just use G.657.A1 for everything?
You essentially can. G.657.A1 provides the best balance of bend-insensitivity and seamless G.652.D compatibility. This is why ScaleFibre uses G.657.A1 as the default standard for many of our cables and assemblies.
+ Why not just use G.657.A2 for everything?
While G.657.A2 offers an even tighter bend radius (7.5mm), it is more expensive to produce. A1 is the ‘sweet spot’ for most network applications, providing the necessary resilience without the unnecessary cost of A2 or B-series glass.
+ Why not just use G.657.B2 or B3 for everything?
Category B fibers (B2/B3) are ‘Bend-Optimized’ for extreme environments but are not required to be compliant with G.652.D. This often leads to significant MFD mismatches and high splice losses when connecting to existing backbone networks.
+ Why does my OTDR show a 'gainer' on mixed links?
A ‘gainer’ is a measurement artifact that occurs when light moves from a fiber with a smaller MFD to one with a larger MFD. It isn’t real power gain; you must perform bi-directional testing and average the results to find the true loss.
+ What is a Mode Field Diameter (MFD) mismatch?
MFD refers to the actual area the light occupies as it travels through the fiber, which is slightly larger than the physical core. If the MFD of two fibers doesn’t match perfectly at a splice point, light escapes, resulting in higher insertion loss. This is often immaterial to the overall loss budget.
+ What is a 'Trench-Assisted' profile?
It is an optical design where a low-refractive-index ’trench’ surrounds the fiber core. This acts like a mirror, reflecting light back into the core when the fiber is bent, which is what gives G.657 its bend-insensitivity.
+ Is G.657.A1 more expensive?
While the material cost is higher than G.652.D, the reduction in installation failures, ‘hidden’ macrobend events, and maintenance calls typically results in a lower Total Cost of Ownership (TCO).
