- Simple, fast, and consistent field termination in under three minutes
- Factory-cleaved and pre-polished fibre stub for true fusion splice
- No adhesives, gels, or mechanical splices required
- APC and UPC factory polish for low insertion and return loss
- Compatible with AFL, Sumitomo, FiberFox, and OFS splicers (with appropriate fibre holder)
- Eliminates need for splice trays or splice panels
- EZ-Open packaging with organised components for faster installation
- Flame-retardant connector housings
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

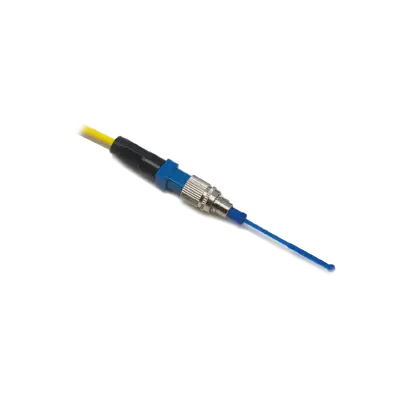

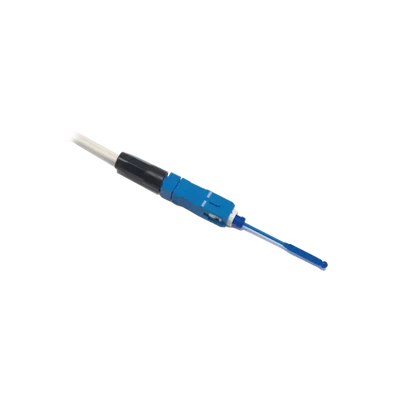

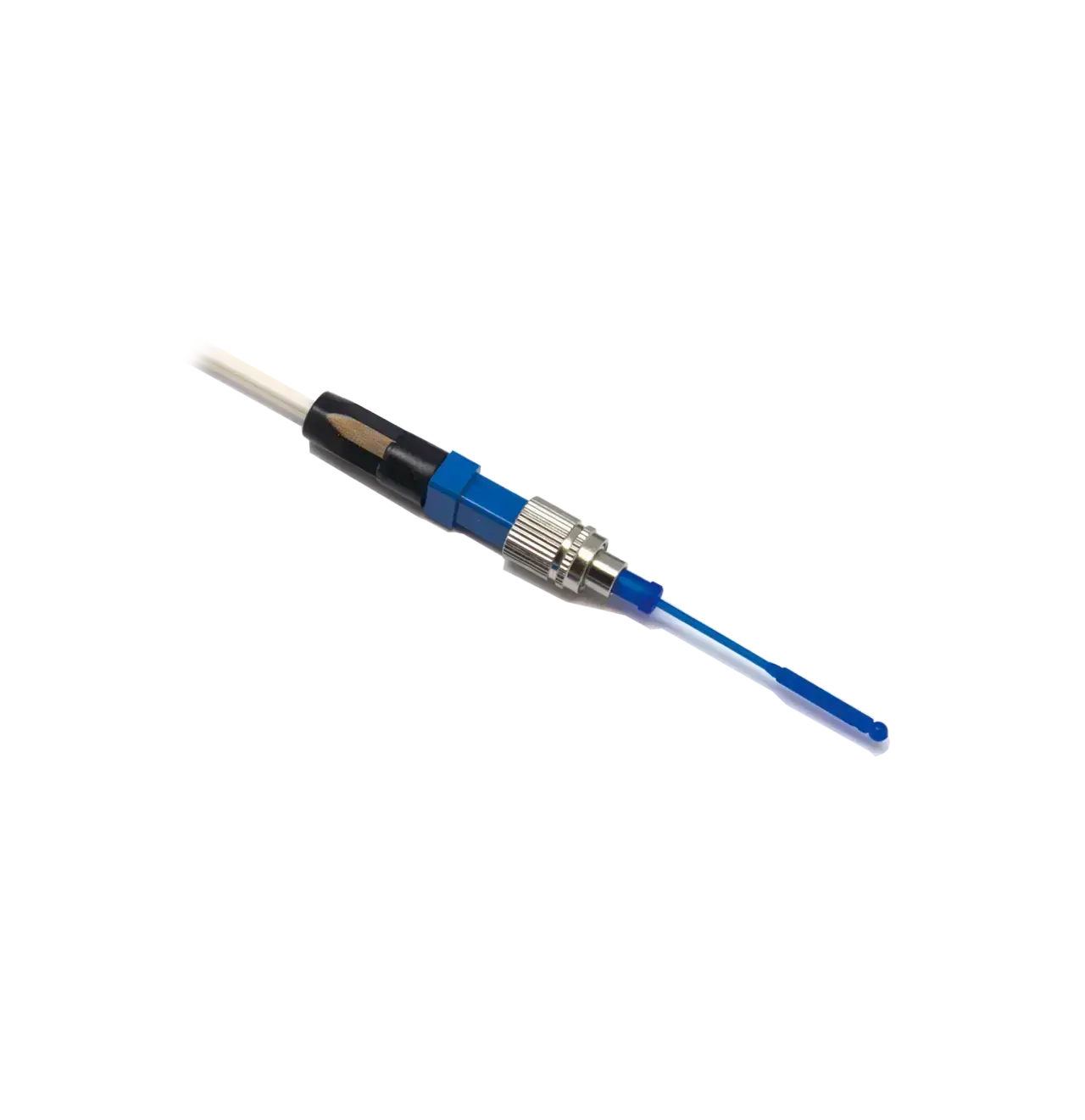

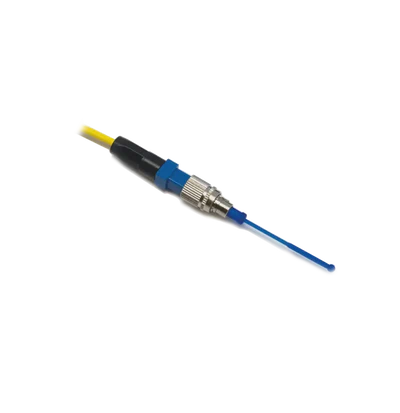

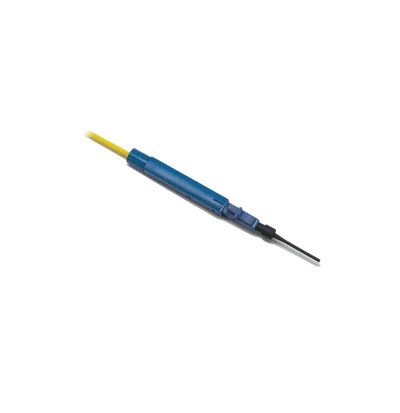

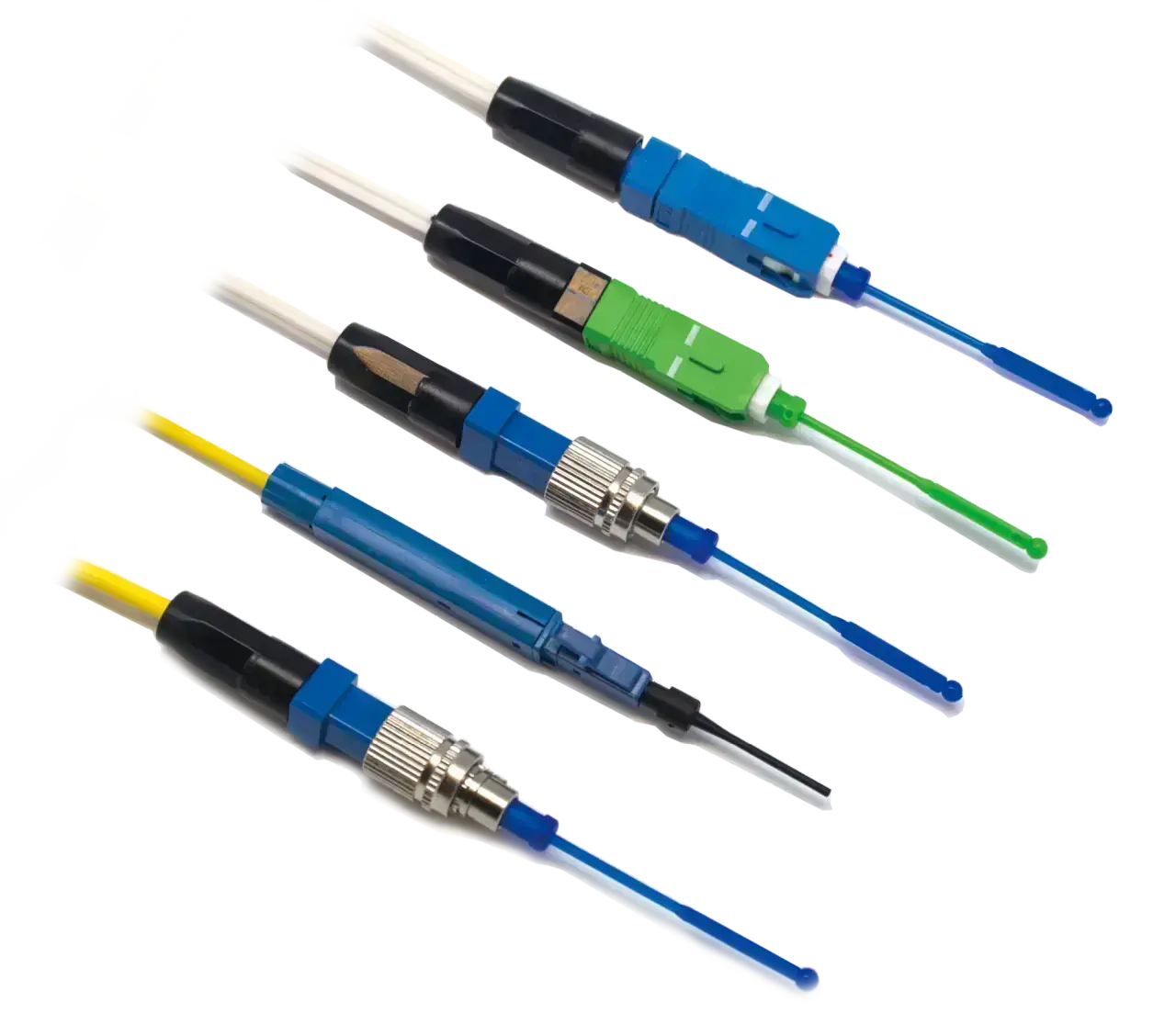

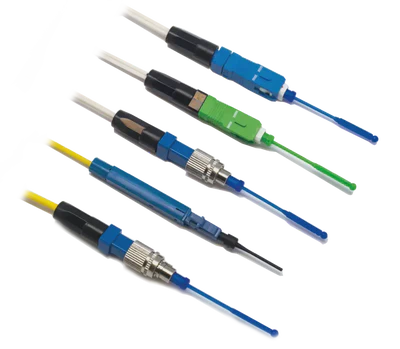

The FiberFox SOC range of splice-on connectors provide rapid, high-performance field termination for optical fibres without adhesives, crimping, or polishing. Each connector integrates a pre-cleaved fibre, enabling a true fusion splice directly to the field fibre for consistent low-loss connections.

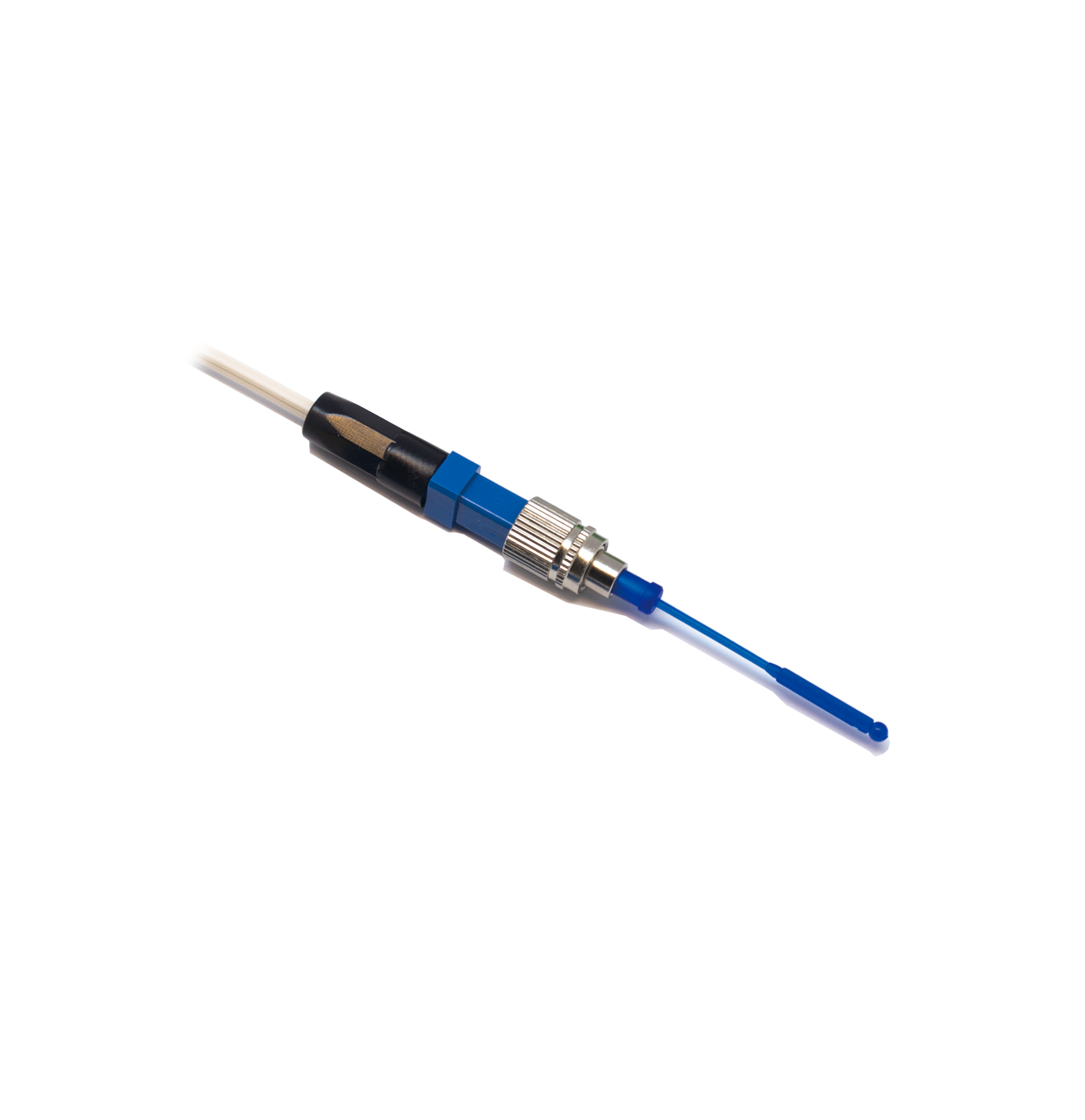

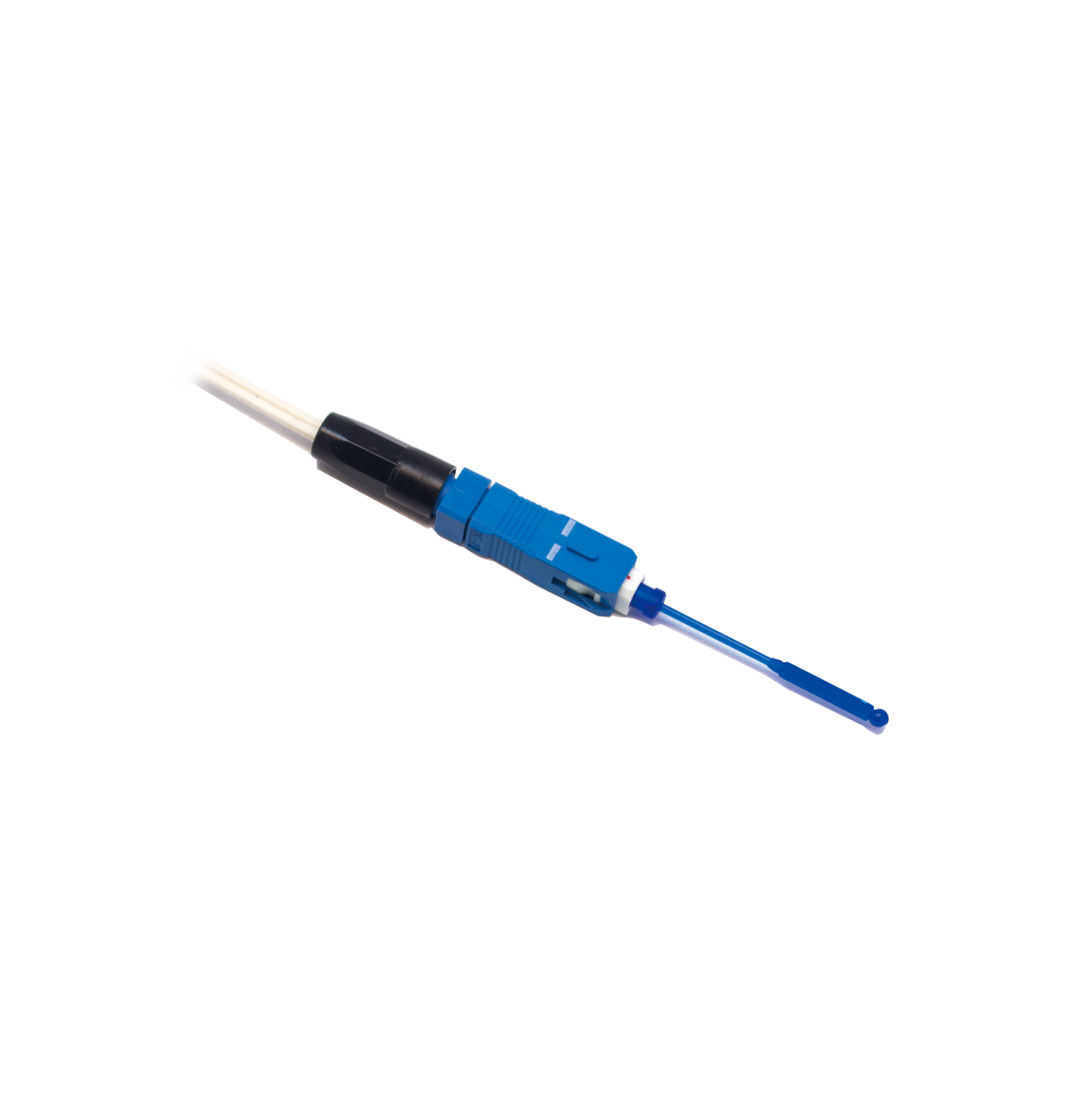

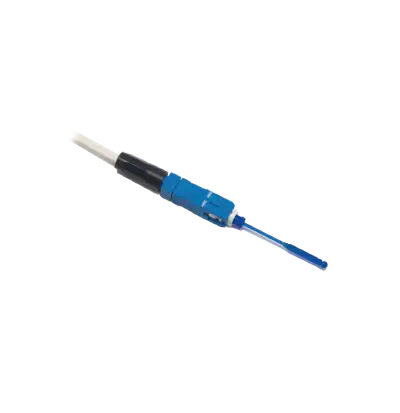

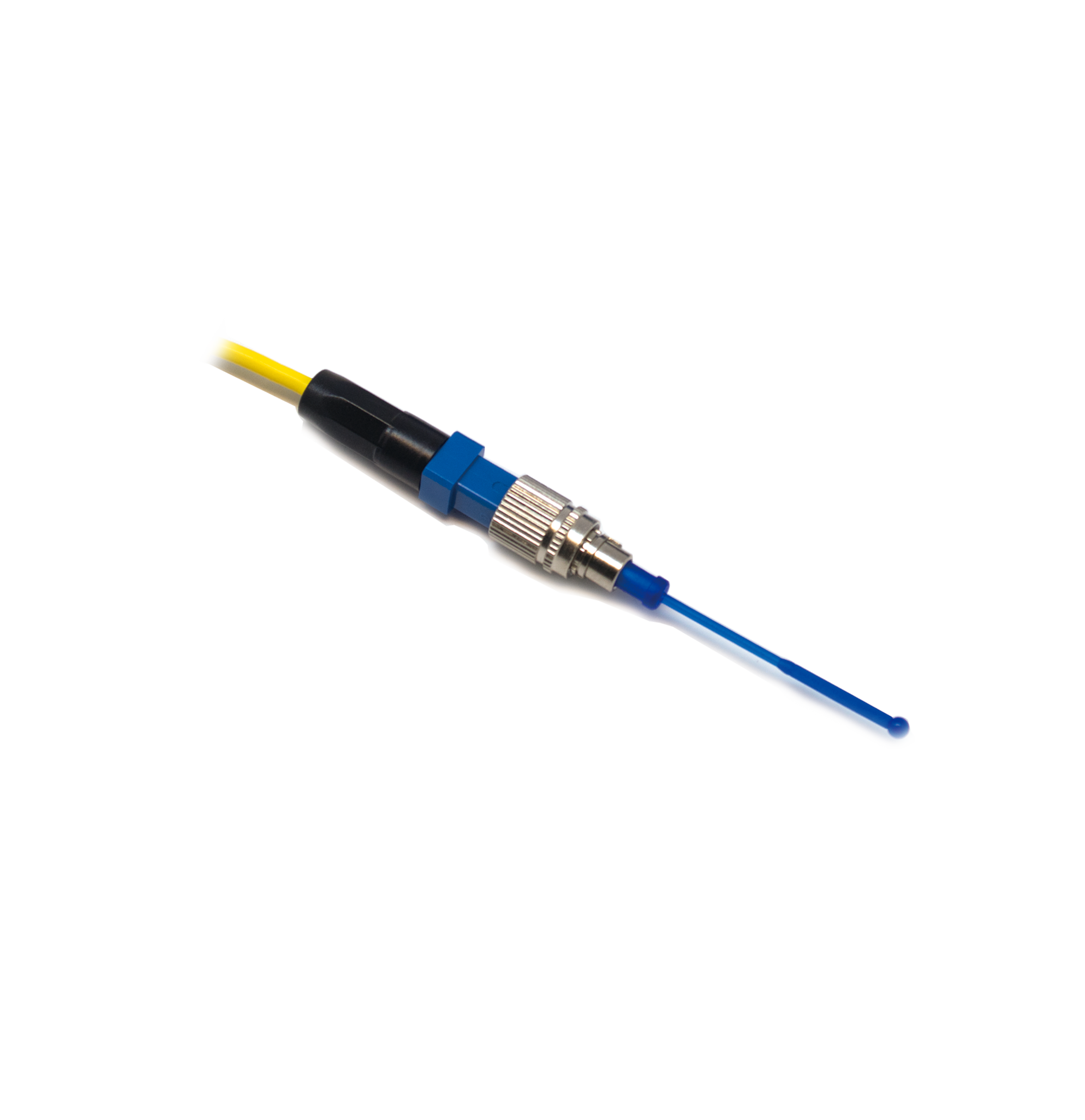

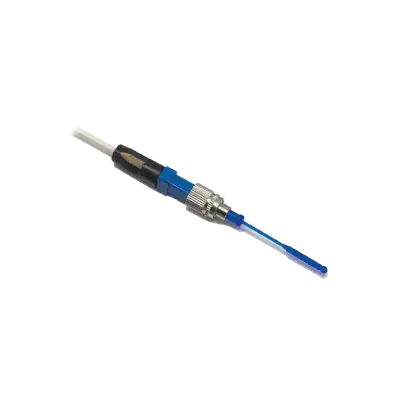

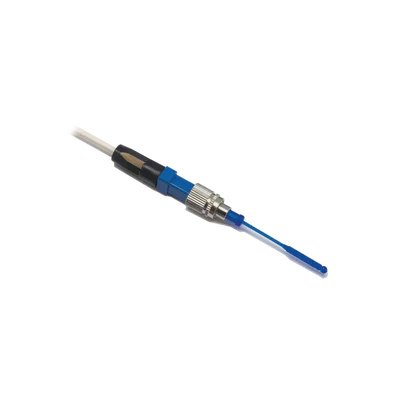

Designed for precision and repeatability, splice-on connectors support singlemode and multimode terminations with APC or UPC polish in LC and SC formats and UPC polish in ST and FC formats. Compatible with leading fusion splicers, including the FiberFox range of fusion splicers, they enable connectorisation in under three minutes and eliminate the need for splice trays or additional hardware.
Each connector features flame-retardant housings, pre-cleaved fibre stubs, and EZ-Open packaging to streamline installation and reduce waste. Available in 900 μm, 2 mm, and 3 mm cable variants, splice-on connectors meet Telcordia and TIA/EIA requirements.
| Connector Compatibility | |
| Supported Splicers | Fujikura 70S/60S/19S/18S, Sumitomo, OFS Fitel, FiberFox (each with appropriate fiber holder) |
| Connector Styles | LC / SC / ST / FC |
| Optical Performance | |
| Polish Types | UPC (Singlemode), APC (Singlemode), PC (Multimode) |
| Fibre Types | G.652.D Singlemode OM1 / OM4 Multimode |
| Cable Types | 900 µm tight buffer 2 mm or 3 mm jacketed |
| Insertion Loss | SM: ≤ 0.15 dB avg (0.3 dB max) MM: ≤ 0.10 dB avg (0.3 dB max) |
| Operating Temperature | –40 °C to +75 °C |
| FiberFox Splice-On Connector Variants, 900 µm | |
| FOX-SOC-S2-SC-900 | FiberFox SOC SC/UPC Singlemode 900 µm |

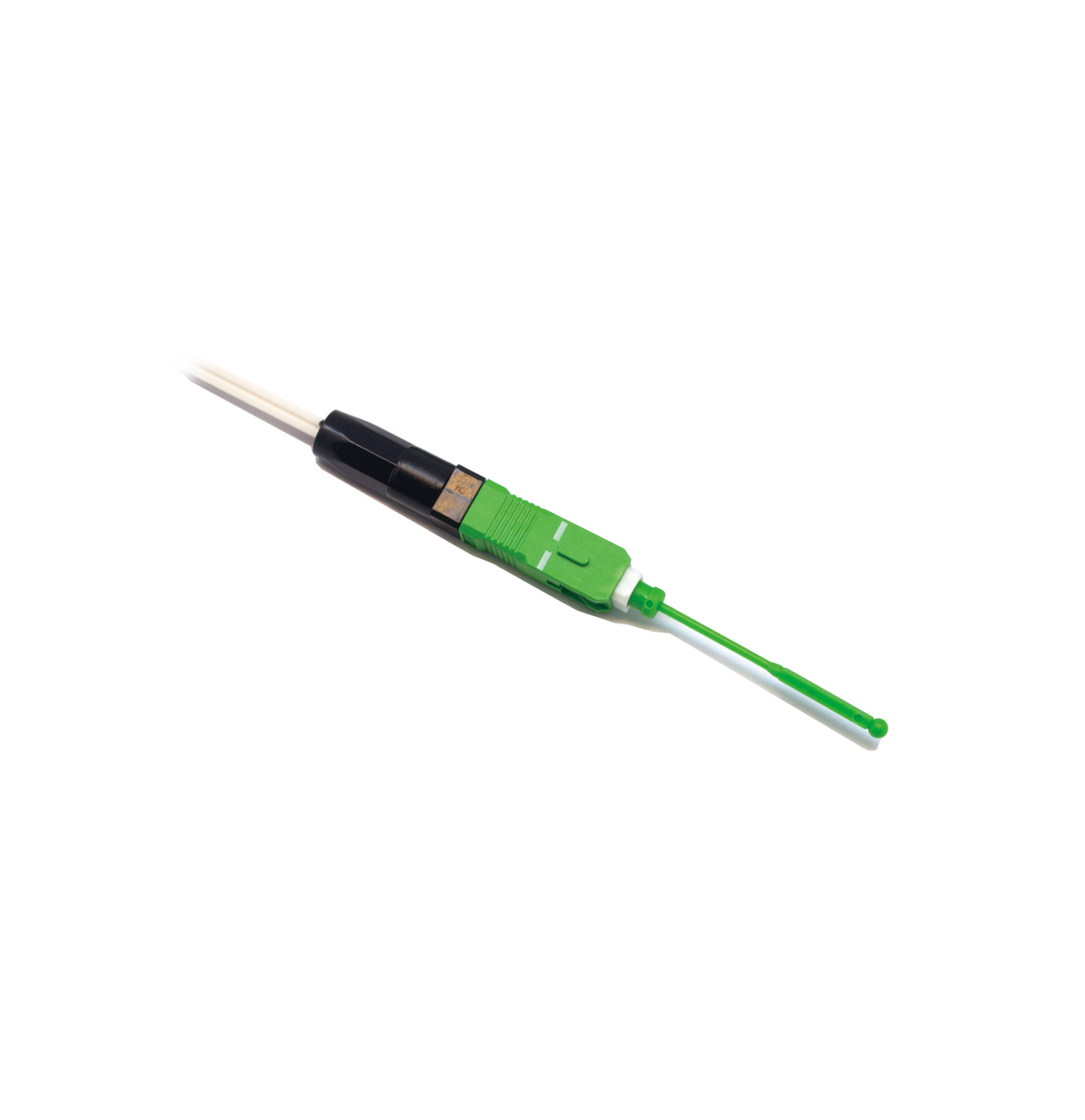

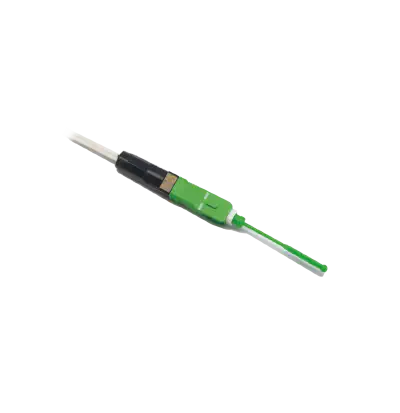

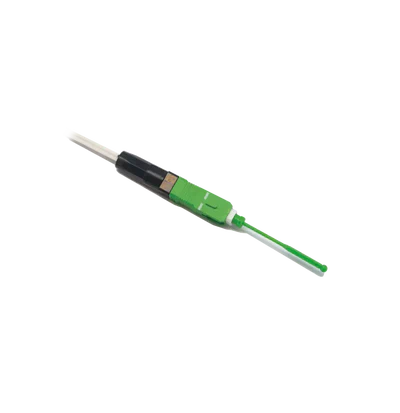

| FOX-SOC-S2-SCA-900 | FiberFox SOC SC/APC Singlemode 900 µm |

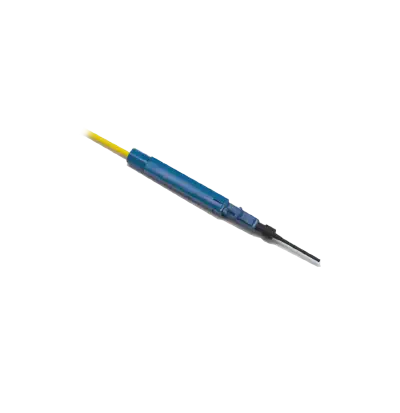

| FOX-SOC-S2-LC-900 | FiberFox SOC LC/UPC Singlemode 900 µm |
| FOX-SOC-S2-LCA-900 | FiberFox SOC LC/APC Singlemode 900 µm |
| FOX-SOC-M4-SC-900 | FiberFox SOC SC/PC Multimode OM4 900 µm |
| FOX-SOC-M4-LC-900 | FiberFox SOC LC/PC Multimode OM4 900 µm |
| FiberFox Splice-On Connector Variants, 2-3mm | |
| FOX-SOC-S2-SC-23 | FiberFox SOC SC/UPC Singlemode 2-3mm |
| FOX-SOC-S2-SCA-23 | FiberFox SOC SC/APC Singlemode 2-3mm |
| FOX-SOC-S2-LC-23 | FiberFox SOC LC/UPC Singlemode 2-3mm |
| FOX-SOC-S2-LCA-23 | FiberFox SOC LC/APC Singlemode 2-3mm |
| FOX-SOC-M4-SC-23 | FiberFox SOC SC/PC Multimode OM4 2-3mm |
| FOX-SOC-M4-LC-23 | FiberFox SOC LC/PC Multimode OM4 2-3mm |
