SlimCORE™ 12F and 24F Indoor Fibre Cable (LSZH, CPR Rated)

SlimCORE™ is a compact indoor fibre cable designed for easy routing, direct termination, and structured cabling simplicity.
  • 12 or 24 fibres in single-unit construction enable direct termination to MPO connectors
  • Sized for narrow fibre duct routing between racks and rows
  • Light enough for single-person rack-to-rack pulls
  • All-dielectric construction with aramid yarn strength members
  • Flame-retardant LSZH jacket suited to indoor data-centre environments
Category: ,
ENQUIRE NOW
Share:

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

The SlimCORE™ 12F and 24F cables are designed for low fibre-count MPO trunk deployments within data centres, typically routed through fibre duct between racks and rows. The single-unit construction supports direct termination to MPO connectors at the rack or row level, eliminating the requirement for fanout kits.

With a 4.5 mm outer diameter and a nominal weight of 17.7 kg/km (12F) or 18.6 kg/km (24F), the cables are suited to short-run patching, end-of-row aggregation, and constrained-pathway installations. Configurations are available in single-mode (G.657.A1) and multimode (OM3, OM4, OM5).

Intended for sub-rack patching and short cross-connect runs in datacentre cabinets across the Sydney and Melbourne metropolitan datacentre clusters, with applications in commercial-tower MDF and IDF stock throughout Australian and New Zealand business centres. The 4.5 mm OD suits subfloor tile cutouts and tight cabinet-side pathways, and the single-person pull weight matches the install practices used by local structured-cabling crews.
Construction Details
Fibre Count12 or 24 fibres
Fibre Coating250µm primary coated
Strength MembersAramid yarns
Jacket MaterialLow Smoke Zero Halogen (LSZH)
Cable Dimensions
Nominal Outer Diameter4.5 mm
Nominal Weight17.7 kg/km ±20% (12 Fibre)
18.6 kg/km ±20% (24 Fibre)
Mechanical Characteristics
Max Tensile Load (Short Term)500 N (12 Fibre)
500 N (24 Fibre)
Max Tensile Load (Long Term)160 N (12 Fibre)
160 N (24 Fibre)
Crush Resistance300 N / 10 cm (Long Term)
1000 N / 10 cm (Short Term)
Bend Radius (Installation)≥20 × OD
Bend Radius (Static)≥10 × OD
Environmental Characteristics
Temperature – Storage-20°C to +60°C
Temperature – Installation-10°C to +60°C
Temperature – Operation-20°C to +60°C
Compliance
Flame RatingIEC 60332-1, IEC 60332-3-24
StandardsIEC 60794
AS/CA S008
AS/NZS 11801
Construction Products Regulation (CPR) Cca-s1a, d1, a1

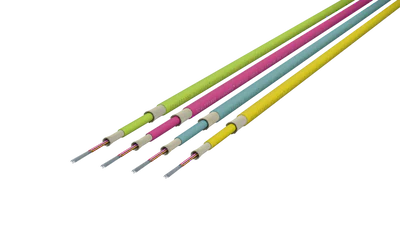

SlimCORE 12F Variants

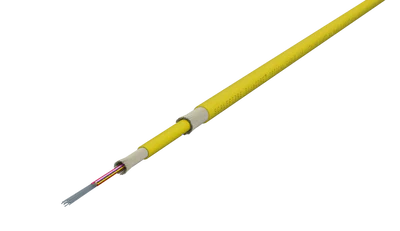

C-SC-S7-12-LSlimCore™ Cable, Single Mode (G.657.A1), 12F, Yellow
C-SC-M3-12-LSlimCore™ Cable, Multi Mode (OM3), 12F, Aqua

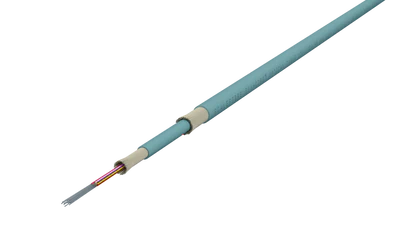

C-SC-M4-12-LSlimCore™ Cable, Multi Mode (OM4), 12F, Aqua

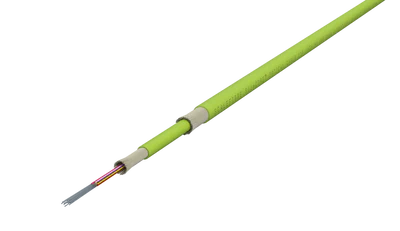

C-SC-M5-12-LSlimCore™ Cable, Multi Mode (OM5), 12F, Lime Green
SlimCORE 24F Variants
C-SC-S7-24-LSlimCore™ Cable, Single Mode (G.657.A1), 24F, Yellow
C-SC-M3-24-LSlimCore™ Cable, Multi Mode (OM3), 12F, Aqua
C-SC-M4-24-LSlimCore™ Cable, Multi Mode (OM4), 12F, Aqua

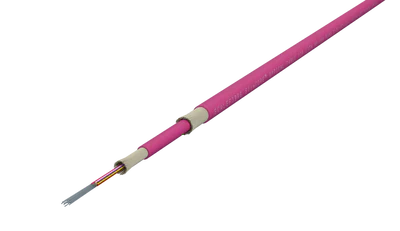

C-SC-M4-24-L-EVSlimCore™ Cable, Multi Mode (OM4), 12F, Erika Violet
C-SC-M5-24-LSlimCore™ Cable, Multi Mode (OM5), 12F, Lime Green
