SlimCORE™ 48F Indoor Fibre Cable

SlimCORE™ 48F is a subunitised indoor fibre cable with compact construction, designed for high-density environments and streamlined termination.
  • Four 12-fibre subunits enable direct fanout to four MPO connectors per cable
  • Compact construction suited to fibre duct and standard cable tray installations
  • Light enough for vertical riser pulls and shared-tray distribution in commercial buildings
  • All-dielectric construction with aramid yarn strength members for tensile performance without grounding requirements
  • Flame-retardant LSZH jacket suited to indoor structured cabling environments
Category: ,
ENQUIRE NOW
Share:

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

The SlimCORE™ 48F cable is engineered for enterprise structured-cabling backbones, including building risers, floor-to-floor distribution, and communications cabinet aggregation. The four 12-fibre subunit construction enables rapid splicing and direct routing through fibre duct or cable tray, eliminating the requirement for fanout kits.

With a 7 mm outer diameter and 50 kg/km nominal weight, the cable is suited to vertical riser installation and shared-tray runs in commercial buildings, occupying the enterprise end of the SlimCORE product family. Configurations are available in single-mode (G.657.A1) and multimode (OM3, OM4, OM5).

Intended for floor-to-floor riser pulls and shared-tray distribution in financial and business centres across Sydney CBD commercial towers, with enterprise backbone applications reaching communications cabinets on each floor of multi-tenant office stock throughout the Melbourne and Brisbane metropolitan clusters. The 7 mm OD suits the tray sizing specified in regional structured-cabling builds.
Construction Details
Fibre Count48 fibres (4 × 12F subunits)
Fibre Coating250µm primary coated
Subunit Diameter2.0 mm nominal
Strength MembersAramid yarns
Jacket MaterialLow Smoke Zero Halogen (LSZH)
Cable Dimensions
Nominal Outer Diameter7.0 mm
Nominal Weight50 kg/km
Mechanical Characteristics
Max Tensile Load (Short Term)660 N
Max Tensile Load (Long Term)200 N
Crush Resistance110 N / cm
Bend Radius (Installation)140mm
Bend Radius (Static)70mm
Environmental Characteristics
Temperature – Installation-10°C to +60°C
Temperature – Operation-20°C to +70°C
Temperature – Storage-40°C to +70°C
Compliance
Flame RatingIEC 60332-1, IEC 60332-3-24
StandardsIEC 60794-2-20, ISO/IEC 11801, AS/CA S008

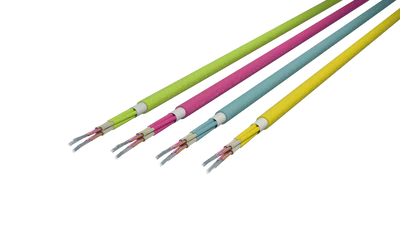

SlimCORE 48F Variants

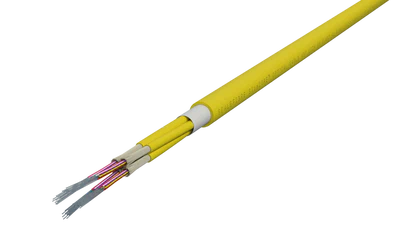

C-SC-S7-48-LSlimCore Sub-Unitised Cable, Single Mode (G.657.A1), 48F, Yellow
C-SC-M3-48-LSlimCore Sub-Unitised Cable, OM3, 48F, Aqua

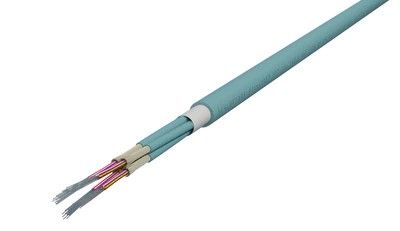

C-SC-M4-48-LSlimCore Sub-Unitised Cable, OM4, 48F, Aqua

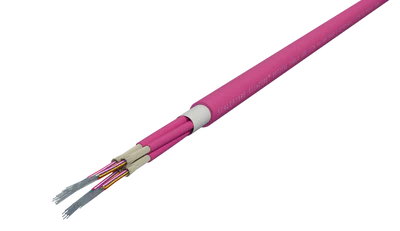

C-SC-M4-48-L-EVSlimCore Sub-Unitised Cable, OM4, 48F, Erika Violet

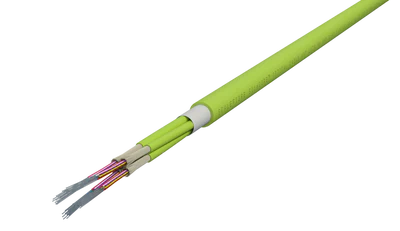

C-SC-M5-48-LSlimCore Sub-Unitised Cable, OM5, 48F, Lime Green
