Rugged non-metallic armoured loose tube fibre cable with UV-stabilised Polyethylene/Nylon jacket, engineered for duct and direct-buried Australian deployments.
- Rodent-resistant design
- High crush and impact resistance
- Superior UV and abrasion resistance
- Water-blocked tubes with StaticGEL™
- Dielectric design - no earth bonding required
- Suitable for aerial, duct, and direct-buried installations
- Compliant with Australian and international standards
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

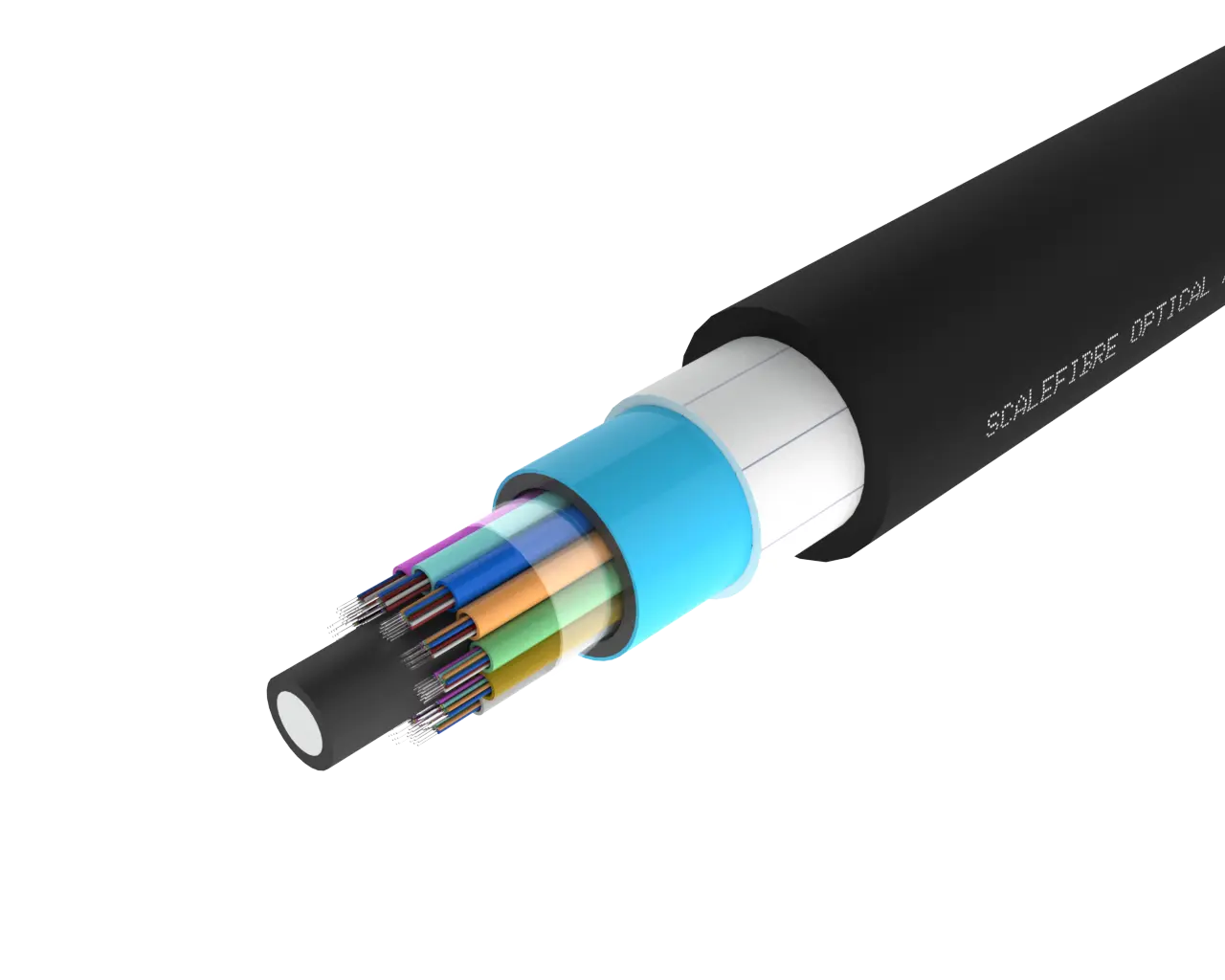

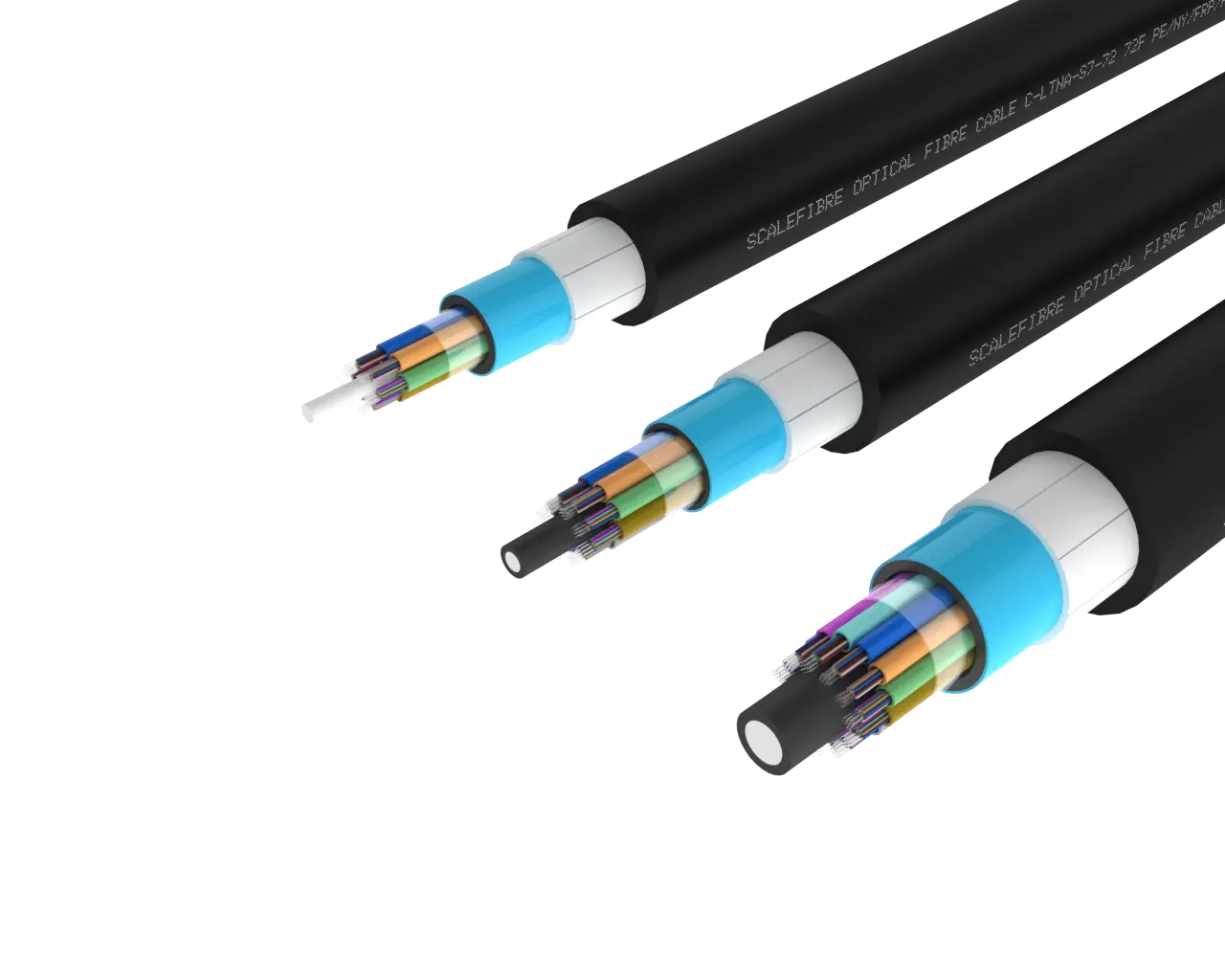

Engineered for demanding outdoor environments, this non-metallic armoured loose tube fibre optic cable features a UV-stabilised Polythylene/Nylon (PE/NY) jacket protected by an integrated non-metallic layer of FRP rod-style armour. This construction provides superior crush resistance, rodent protection, and flexibility for use in duct, and direct-buried applications.
The design enables easy handling and fibre protection, while the all-dielectric build eliminates earth bonding/earthing requirements, ideal for power utility corridors and environments sensitive to metallic components. Optimised for carrier, broadband, transport, utility, campus networks and harsh environments across Australia.
For critical networks, even greater tensile strength and crush resistance is available in our high strength HS1 optical fibre cable. and non-metallic armoured high strength HS1 optical fibre cable.
| Construction Details | |
| Fibre Count | 2–144 fibres |
| Fibre Type | Single-mode G.652.D Single-mode G.657.A1 G.Single-mode 657.A2 Multi-mode OM3 Multi-mode OM4 Other specialty optical fibres |
| Tube Type | Polymer Loose Tubes with StaticGEL™ non-flowing gel |
| Armour | Non-metallic FRP rods |
| Jacket Material | 1. Polyethylene 2. Nylon 3. Polyethylene |
| Strength Member | Central FRP strength member |
| Outer Diameter | |

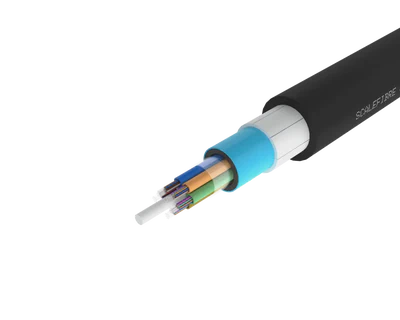

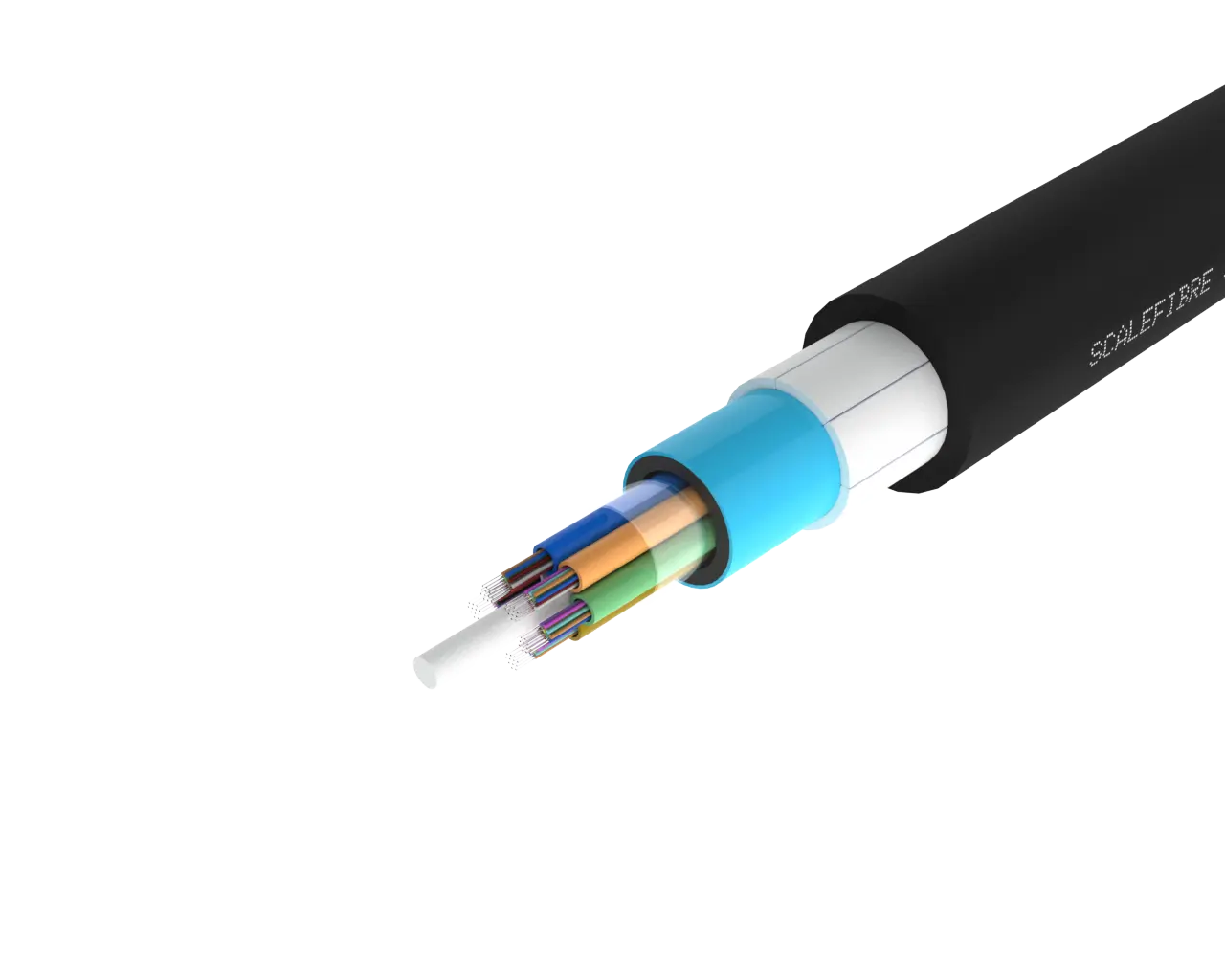

| Outer Diameter, 12-72 Fibres | 14.4mm |

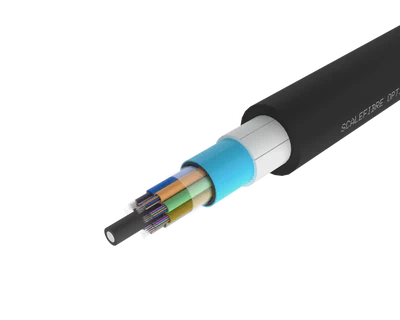

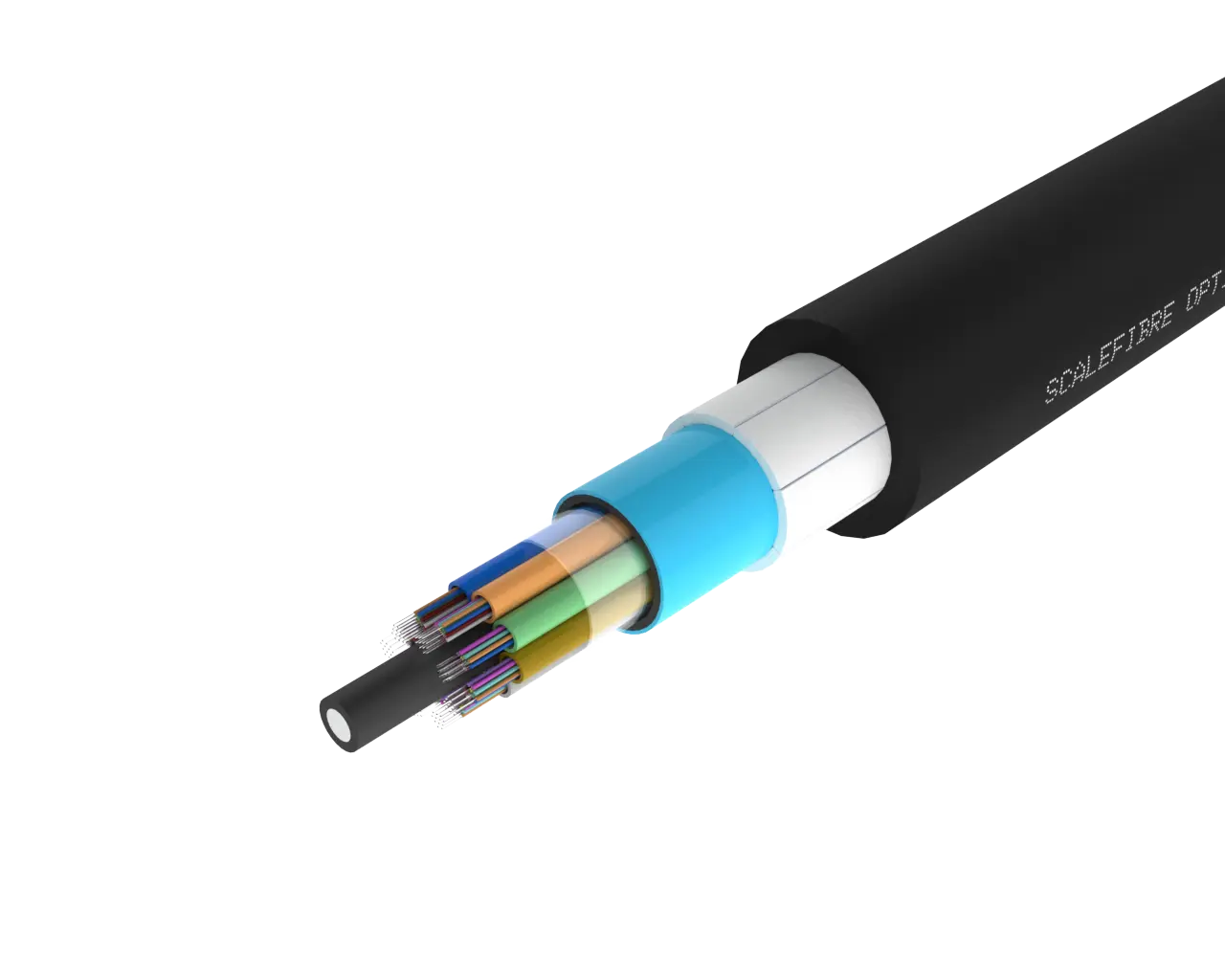

| Outer Diameter, 96 Fibres | 15.7mm |

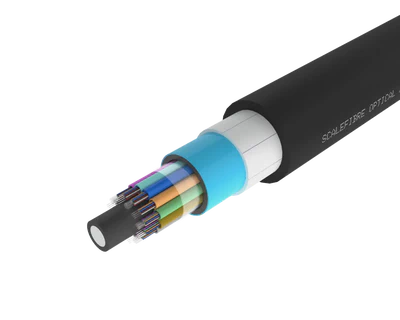

| Outer Diameter, 144 Fibres | 18.5mm |
| Weight | |
| 12-72 Fibres | 180 kg/km |
| 96 Fibres | 220 kg/km |
| 144 Fibres | 290 kg/km |
| Mechanical Characteristics | |
| Max Tensile Load (Short Term) | 1.2kN |
| Max Tensile Load (Long Term) | 4kN |
| Crush Resistance | 3kN/100mm |
| Bend Radius | |
| 12-72 Fibres | 430mm (Installation) / 215mm (Static) |
| 96 Fibres | 470mm (Installation) / 235mm (Static) |
| 144 Fibres | 550mm (Installation) / 270mm (Static) |
| Environmental Characteristics | |
| Temperature – Installation | -10°C to +50°C |
| Temperature – Operation | -40°C to +70°C |
| Temperature – Storage | -40°C to +70°C |
| Compliance | |
| Standards | IEC 60794, AS/CA S008, ITU-T Optical Fibre Standards |
| RoHS3 Compliant | Yes |
| Single-mode, G.652.D | |
| C-LTNA-S2-006-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.652.D), 6F, PE/NY Jacket |
| C-LTNA-S2-012-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.652.D), 12F, PE/NY Jacket |
| C-LTNA-S2-024-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.652.D), 24F, PE/NY Jacket |
| C-LTNA-S2-048-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.652.D), 48F, PE/NY Jacket |
| C-LTNA-S2-072-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.652.D), 72F, PE/NY Jacket |
| C-LTNA-S2-096-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.652.D), 96F, PE/NY Jacket |
| C-LTNA-S2-144-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.652.D), 144F, PE/NY Jacket |
| Single-mode, G.657.A1 | |
| C-LTNA-S7-006-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.657.A1), 6F, PE/NY Jacket |
| C-LTNA-S7-012-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.657.A1), 12F, PE/NY Jacket |
| C-LTNA-S7-024-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.657.A1), 24F, PE/NY Jacket |
| C-LTNA-S7-048-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.657.A1), 48F, PE/NY Jacket |
| C-LTNA-S7-072-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.657.A1), 72F, PE/NY Jacket |
| C-LTNA-S7-096-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.657.A1), 96F, PE/NY Jacket |
| C-LTNA-S7-144-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (G.657.A1), 144F, PE/NY Jacket |
| Multi-mode, OM3 | |
| C-LTNA-M3-006-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM3), 6F, PE/NY Jacket |
| C-LTNA-M3-012-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM3), 12F, PE/NY Jacket |
| C-LTNA-M3-024-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM3), 24F, PE/NY Jacket |
| C-LTNA-M3-048-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM3), 48F, PE/NY Jacket |
| C-LTNA-M3-072-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM3), 72F, PE/NY Jacket |
| C-LTNA-M3-096-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM3), 96F, PE/NY Jacket |
| C-LTNA-M3-144-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM3), 144F, PE/NY Jacket |
| Multi-mode, OM4 | |
| C-LTNA-M4-006-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM4), 6F, PE/NY Jacket |
| C-LTNA-M4-012-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM4), 12F, PE/NY Jacket |
| C-LTNA-M4-024-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM4), 24F, PE/NY Jacket |
| C-LTNA-M4-048-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM4), 48F, PE/NY Jacket |
| C-LTNA-M4-072-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM4), 72F, PE/NY Jacket |
| C-LTNA-M4-096-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM4), 96F, PE/NY Jacket |
| C-LTNA-M4-144-PN | Loose Tube Optical Cable, Non-Metallic Armoured, Single Mode (OM4), 144F, PE/NY Jacket |
