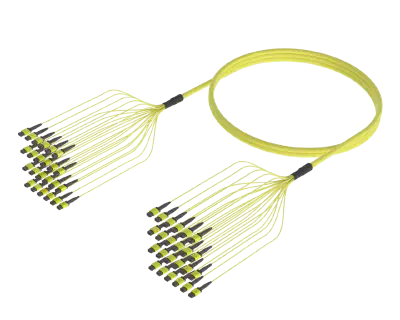

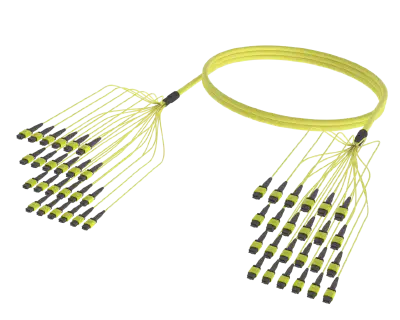

High Fibre Count MPO Trunk Cables

High fibre-count MPO trunk assemblies with 48 to 576 fibres. Enables fast, large-scale deployment with reduced labour and minimal installation overhead.

Supports 48 to 576 fibres per trunk
Available with MPO-8, MPO-12 or MPO-24 connectors
Factory terminated and 100% IL/RL tested
LSZH outer jacket with CPR options
Ideal for zone distribution and backbone extensions
Simplifies installation and reduces pathway usage

Category: Optical Cable Assemblies, MPO Trunks and Fanouts

ENQUIRE NOW

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

High Fibre Count MPO trunk cables are engineered for high-density backbone, cross-connect, and patching deployments. Available from 48 to 576 fibres, they deliver a scalable, space-efficient solution across enterprise data centres, hyperscale halls, edge environments, and access-layer switching.

Single-mode G.657.A1 trunks are available from 48 to 576 fibres, and multimode OM3, OM4 and OM5 trunks from 48 to 144 fibres. Pre-terminated with MPO-8, MPO-12 or MPO-24 connectors, these assemblies are designed to maximise port utilisation and reduce installation time in structured cabling systems. Each unit is factory tested for low insertion loss and high return loss, ensuring reliable optical performance in demanding applications.

Sheath options include LSZH and CPR ratings to meet diverse compliance and installation requirements. These high fibre-count trunks enable rapid deployment of large core capacities in a single pull, streamlining installation and reducing on-site labour in core, horizontal, and distribution layers.

Intended for high-density backbone distribution and pre-terminated patching across the Sydney and Melbourne metropolitan data centre clusters, with applications in row-to-row aggregation and structured-cabling distribution layers across Australian and New Zealand corporate-campus stock.

General
Connector Types	MPO-8, MPO-12, MPO-24 (male or female, pinned or unpinned)
Fibre Count Range	48 to 576 fibres per trunk
Polarity Options	Type A, B, C
Cable Specification
Jacket Material	Low Smoke Zero Halogen (LSZH)
Fibre Type	Single-mode G.657.A1 (48F to 576F) Multimode OM3/OM4/OM5 (48F to 144F)
Insertion Loss	≤0.35 dB per connector
Return Loss	≥60 dB (SM); ≥30 dB (MM)
Operating Temperature	-20°C to +70°C
Compliance	TIA/EIA-568, IEC 61754-7, FOCIS-5, RoHS, REACH

Fibre Optic Assembly, Single-mode (G.657.A1), 48F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-S7-SC12-48-MPOF-MPOF-A-0003M	3
MH-S7-SC12-48-MPOF-MPOF-A-0005M	5
MH-S7-SC12-48-MPOF-MPOF-A-0010M	10
MH-S7-SC12-48-MPOF-MPOF-A-0015M	15
MH-S7-SC12-48-MPOF-MPOF-A-0020M	20
MH-S7-SC12-48-MPOF-MPOF-A-0025M	25
MH-S7-SC12-48-MPOF-MPOF-A-0030M	30
MH-S7-SC12-48-MPOF-MPOF-A-0035M	35
MH-S7-SC12-48-MPOF-MPOF-A-0040M	40
MH-S7-SC12-48-MPOF-MPOF-A-0045M	45
MH-S7-SC12-48-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 48F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-S7-SC12-48-MPOF-MPOF-B-0003M	3
MH-S7-SC12-48-MPOF-MPOF-B-0005M	5
MH-S7-SC12-48-MPOF-MPOF-B-0010M	10
MH-S7-SC12-48-MPOF-MPOF-B-0015M	15
MH-S7-SC12-48-MPOF-MPOF-B-0020M	20
MH-S7-SC12-48-MPOF-MPOF-B-0025M	25
MH-S7-SC12-48-MPOF-MPOF-B-0030M	30
MH-S7-SC12-48-MPOF-MPOF-B-0035M	35
MH-S7-SC12-48-MPOF-MPOF-B-0040M	40
MH-S7-SC12-48-MPOF-MPOF-B-0045M	45
MH-S7-SC12-48-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 48F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-S7-SC12-48-MPOF-MPOF-C-0003M	3
MH-S7-SC12-48-MPOF-MPOF-C-0005M	5
MH-S7-SC12-48-MPOF-MPOF-C-0010M	10
MH-S7-SC12-48-MPOF-MPOF-C-0015M	15
MH-S7-SC12-48-MPOF-MPOF-C-0020M	20
MH-S7-SC12-48-MPOF-MPOF-C-0025M	25
MH-S7-SC12-48-MPOF-MPOF-C-0030M	30
MH-S7-SC12-48-MPOF-MPOF-C-0035M	35
MH-S7-SC12-48-MPOF-MPOF-C-0040M	40
MH-S7-SC12-48-MPOF-MPOF-C-0045M	45
MH-S7-SC12-48-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 72F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-S7-SC12-72-MPOF-MPOF-A-0003M	3
MH-S7-SC12-72-MPOF-MPOF-A-0005M	5
MH-S7-SC12-72-MPOF-MPOF-A-0010M	10
MH-S7-SC12-72-MPOF-MPOF-A-0015M	15
MH-S7-SC12-72-MPOF-MPOF-A-0020M	20
MH-S7-SC12-72-MPOF-MPOF-A-0025M	25
MH-S7-SC12-72-MPOF-MPOF-A-0030M	30
MH-S7-SC12-72-MPOF-MPOF-A-0035M	35
MH-S7-SC12-72-MPOF-MPOF-A-0040M	40
MH-S7-SC12-72-MPOF-MPOF-A-0045M	45
MH-S7-SC12-72-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 72F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-S7-SC12-72-MPOF-MPOF-B-0003M	3
MH-S7-SC12-72-MPOF-MPOF-B-0005M	5
MH-S7-SC12-72-MPOF-MPOF-B-0010M	10
MH-S7-SC12-72-MPOF-MPOF-B-0015M	15
MH-S7-SC12-72-MPOF-MPOF-B-0020M	20
MH-S7-SC12-72-MPOF-MPOF-B-0025M	25
MH-S7-SC12-72-MPOF-MPOF-B-0030M	30
MH-S7-SC12-72-MPOF-MPOF-B-0035M	35
MH-S7-SC12-72-MPOF-MPOF-B-0040M	40
MH-S7-SC12-72-MPOF-MPOF-B-0045M	45
MH-S7-SC12-72-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 72F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-S7-SC12-72-MPOF-MPOF-C-0003M	3
MH-S7-SC12-72-MPOF-MPOF-C-0005M	5
MH-S7-SC12-72-MPOF-MPOF-C-0010M	10
MH-S7-SC12-72-MPOF-MPOF-C-0015M	15
MH-S7-SC12-72-MPOF-MPOF-C-0020M	20
MH-S7-SC12-72-MPOF-MPOF-C-0025M	25
MH-S7-SC12-72-MPOF-MPOF-C-0030M	30
MH-S7-SC12-72-MPOF-MPOF-C-0035M	35
MH-S7-SC12-72-MPOF-MPOF-C-0040M	40
MH-S7-SC12-72-MPOF-MPOF-C-0045M	45
MH-S7-SC12-72-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 96F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-S7-SC12-96-MPOF-MPOF-A-0003M	3
MH-S7-SC12-96-MPOF-MPOF-A-0005M	5
MH-S7-SC12-96-MPOF-MPOF-A-0010M	10
MH-S7-SC12-96-MPOF-MPOF-A-0015M	15
MH-S7-SC12-96-MPOF-MPOF-A-0020M	20
MH-S7-SC12-96-MPOF-MPOF-A-0025M	25
MH-S7-SC12-96-MPOF-MPOF-A-0030M	30
MH-S7-SC12-96-MPOF-MPOF-A-0035M	35
MH-S7-SC12-96-MPOF-MPOF-A-0040M	40
MH-S7-SC12-96-MPOF-MPOF-A-0045M	45
MH-S7-SC12-96-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 96F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-S7-SC12-96-MPOF-MPOF-B-0003M	3
MH-S7-SC12-96-MPOF-MPOF-B-0005M	5
MH-S7-SC12-96-MPOF-MPOF-B-0010M	10
MH-S7-SC12-96-MPOF-MPOF-B-0015M	15
MH-S7-SC12-96-MPOF-MPOF-B-0020M	20
MH-S7-SC12-96-MPOF-MPOF-B-0025M	25
MH-S7-SC12-96-MPOF-MPOF-B-0030M	30
MH-S7-SC12-96-MPOF-MPOF-B-0035M	35
MH-S7-SC12-96-MPOF-MPOF-B-0040M	40
MH-S7-SC12-96-MPOF-MPOF-B-0045M	45
MH-S7-SC12-96-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 96F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-S7-SC12-96-MPOF-MPOF-C-0003M	3
MH-S7-SC12-96-MPOF-MPOF-C-0005M	5
MH-S7-SC12-96-MPOF-MPOF-C-0010M	10
MH-S7-SC12-96-MPOF-MPOF-C-0015M	15
MH-S7-SC12-96-MPOF-MPOF-C-0020M	20
MH-S7-SC12-96-MPOF-MPOF-C-0025M	25
MH-S7-SC12-96-MPOF-MPOF-C-0030M	30
MH-S7-SC12-96-MPOF-MPOF-C-0035M	35
MH-S7-SC12-96-MPOF-MPOF-C-0040M	40
MH-S7-SC12-96-MPOF-MPOF-C-0045M	45
MH-S7-SC12-96-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 144F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-S7-SC12-144-MPOF-MPOF-A-0003M	3
MH-S7-SC12-144-MPOF-MPOF-A-0005M	5
MH-S7-SC12-144-MPOF-MPOF-A-0010M	10
MH-S7-SC12-144-MPOF-MPOF-A-0015M	15
MH-S7-SC12-144-MPOF-MPOF-A-0020M	20
MH-S7-SC12-144-MPOF-MPOF-A-0025M	25
MH-S7-SC12-144-MPOF-MPOF-A-0030M	30
MH-S7-SC12-144-MPOF-MPOF-A-0035M	35
MH-S7-SC12-144-MPOF-MPOF-A-0040M	40
MH-S7-SC12-144-MPOF-MPOF-A-0045M	45
MH-S7-SC12-144-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 144F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-S7-SC12-144-MPOF-MPOF-B-0003M	3
MH-S7-SC12-144-MPOF-MPOF-B-0005M	5
MH-S7-SC12-144-MPOF-MPOF-B-0010M	10
MH-S7-SC12-144-MPOF-MPOF-B-0015M	15
MH-S7-SC12-144-MPOF-MPOF-B-0020M	20
MH-S7-SC12-144-MPOF-MPOF-B-0025M	25
MH-S7-SC12-144-MPOF-MPOF-B-0030M	30
MH-S7-SC12-144-MPOF-MPOF-B-0035M	35
MH-S7-SC12-144-MPOF-MPOF-B-0040M	40
MH-S7-SC12-144-MPOF-MPOF-B-0045M	45
MH-S7-SC12-144-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 144F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-S7-SC12-144-MPOF-MPOF-C-0003M	3
MH-S7-SC12-144-MPOF-MPOF-C-0005M	5
MH-S7-SC12-144-MPOF-MPOF-C-0010M	10
MH-S7-SC12-144-MPOF-MPOF-C-0015M	15
MH-S7-SC12-144-MPOF-MPOF-C-0020M	20
MH-S7-SC12-144-MPOF-MPOF-C-0025M	25
MH-S7-SC12-144-MPOF-MPOF-C-0030M	30
MH-S7-SC12-144-MPOF-MPOF-C-0035M	35
MH-S7-SC12-144-MPOF-MPOF-C-0040M	40
MH-S7-SC12-144-MPOF-MPOF-C-0045M	45
MH-S7-SC12-144-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 192F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-S7-SC12-192-MPOF-MPOF-A-0003M	3
MH-S7-SC12-192-MPOF-MPOF-A-0005M	5
MH-S7-SC12-192-MPOF-MPOF-A-0010M	10
MH-S7-SC12-192-MPOF-MPOF-A-0015M	15
MH-S7-SC12-192-MPOF-MPOF-A-0020M	20
MH-S7-SC12-192-MPOF-MPOF-A-0025M	25
MH-S7-SC12-192-MPOF-MPOF-A-0030M	30
MH-S7-SC12-192-MPOF-MPOF-A-0035M	35
MH-S7-SC12-192-MPOF-MPOF-A-0040M	40
MH-S7-SC12-192-MPOF-MPOF-A-0045M	45
MH-S7-SC12-192-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 192F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-S7-SC12-192-MPOF-MPOF-B-0003M	3
MH-S7-SC12-192-MPOF-MPOF-B-0005M	5
MH-S7-SC12-192-MPOF-MPOF-B-0010M	10
MH-S7-SC12-192-MPOF-MPOF-B-0015M	15
MH-S7-SC12-192-MPOF-MPOF-B-0020M	20
MH-S7-SC12-192-MPOF-MPOF-B-0025M	25
MH-S7-SC12-192-MPOF-MPOF-B-0030M	30
MH-S7-SC12-192-MPOF-MPOF-B-0035M	35
MH-S7-SC12-192-MPOF-MPOF-B-0040M	40
MH-S7-SC12-192-MPOF-MPOF-B-0045M	45
MH-S7-SC12-192-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 192F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-S7-SC12-192-MPOF-MPOF-C-0003M	3
MH-S7-SC12-192-MPOF-MPOF-C-0005M	5
MH-S7-SC12-192-MPOF-MPOF-C-0010M	10
MH-S7-SC12-192-MPOF-MPOF-C-0015M	15
MH-S7-SC12-192-MPOF-MPOF-C-0020M	20
MH-S7-SC12-192-MPOF-MPOF-C-0025M	25
MH-S7-SC12-192-MPOF-MPOF-C-0030M	30
MH-S7-SC12-192-MPOF-MPOF-C-0035M	35
MH-S7-SC12-192-MPOF-MPOF-C-0040M	40
MH-S7-SC12-192-MPOF-MPOF-C-0045M	45
MH-S7-SC12-192-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 288F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-S7-SC12-288-MPOF-MPOF-A-0003M	3
MH-S7-SC12-288-MPOF-MPOF-A-0005M	5
MH-S7-SC12-288-MPOF-MPOF-A-0010M	10
MH-S7-SC12-288-MPOF-MPOF-A-0015M	15
MH-S7-SC12-288-MPOF-MPOF-A-0020M	20
MH-S7-SC12-288-MPOF-MPOF-A-0025M	25
MH-S7-SC12-288-MPOF-MPOF-A-0030M	30
MH-S7-SC12-288-MPOF-MPOF-A-0035M	35
MH-S7-SC12-288-MPOF-MPOF-A-0040M	40
MH-S7-SC12-288-MPOF-MPOF-A-0045M	45
MH-S7-SC12-288-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 288F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-S7-SC12-288-MPOF-MPOF-B-0003M	3
MH-S7-SC12-288-MPOF-MPOF-B-0005M	5
MH-S7-SC12-288-MPOF-MPOF-B-0010M	10
MH-S7-SC12-288-MPOF-MPOF-B-0015M	15
MH-S7-SC12-288-MPOF-MPOF-B-0020M	20
MH-S7-SC12-288-MPOF-MPOF-B-0025M	25
MH-S7-SC12-288-MPOF-MPOF-B-0030M	30
MH-S7-SC12-288-MPOF-MPOF-B-0035M	35
MH-S7-SC12-288-MPOF-MPOF-B-0040M	40
MH-S7-SC12-288-MPOF-MPOF-B-0045M	45
MH-S7-SC12-288-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 288F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-S7-SC12-288-MPOF-MPOF-C-0003M	3
MH-S7-SC12-288-MPOF-MPOF-C-0005M	5
MH-S7-SC12-288-MPOF-MPOF-C-0010M	10
MH-S7-SC12-288-MPOF-MPOF-C-0015M	15
MH-S7-SC12-288-MPOF-MPOF-C-0020M	20
MH-S7-SC12-288-MPOF-MPOF-C-0025M	25
MH-S7-SC12-288-MPOF-MPOF-C-0030M	30
MH-S7-SC12-288-MPOF-MPOF-C-0035M	35
MH-S7-SC12-288-MPOF-MPOF-C-0040M	40
MH-S7-SC12-288-MPOF-MPOF-C-0045M	45
MH-S7-SC12-288-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 432F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-S7-SC12-432-MPOF-MPOF-A-0003M	3
MH-S7-SC12-432-MPOF-MPOF-A-0005M	5
MH-S7-SC12-432-MPOF-MPOF-A-0010M	10
MH-S7-SC12-432-MPOF-MPOF-A-0015M	15
MH-S7-SC12-432-MPOF-MPOF-A-0020M	20
MH-S7-SC12-432-MPOF-MPOF-A-0025M	25
MH-S7-SC12-432-MPOF-MPOF-A-0030M	30
MH-S7-SC12-432-MPOF-MPOF-A-0035M	35
MH-S7-SC12-432-MPOF-MPOF-A-0040M	40
MH-S7-SC12-432-MPOF-MPOF-A-0045M	45
MH-S7-SC12-432-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 432F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-S7-SC12-432-MPOF-MPOF-B-0003M	3
MH-S7-SC12-432-MPOF-MPOF-B-0005M	5
MH-S7-SC12-432-MPOF-MPOF-B-0010M	10
MH-S7-SC12-432-MPOF-MPOF-B-0015M	15
MH-S7-SC12-432-MPOF-MPOF-B-0020M	20
MH-S7-SC12-432-MPOF-MPOF-B-0025M	25
MH-S7-SC12-432-MPOF-MPOF-B-0030M	30
MH-S7-SC12-432-MPOF-MPOF-B-0035M	35
MH-S7-SC12-432-MPOF-MPOF-B-0040M	40
MH-S7-SC12-432-MPOF-MPOF-B-0045M	45
MH-S7-SC12-432-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 432F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-S7-SC12-432-MPOF-MPOF-C-0003M	3
MH-S7-SC12-432-MPOF-MPOF-C-0005M	5
MH-S7-SC12-432-MPOF-MPOF-C-0010M	10
MH-S7-SC12-432-MPOF-MPOF-C-0015M	15
MH-S7-SC12-432-MPOF-MPOF-C-0020M	20
MH-S7-SC12-432-MPOF-MPOF-C-0025M	25
MH-S7-SC12-432-MPOF-MPOF-C-0030M	30
MH-S7-SC12-432-MPOF-MPOF-C-0035M	35
MH-S7-SC12-432-MPOF-MPOF-C-0040M	40
MH-S7-SC12-432-MPOF-MPOF-C-0045M	45
MH-S7-SC12-432-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 576F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-S7-SC12-576-MPOF-MPOF-A-0003M	3
MH-S7-SC12-576-MPOF-MPOF-A-0005M	5
MH-S7-SC12-576-MPOF-MPOF-A-0010M	10
MH-S7-SC12-576-MPOF-MPOF-A-0015M	15
MH-S7-SC12-576-MPOF-MPOF-A-0020M	20
MH-S7-SC12-576-MPOF-MPOF-A-0025M	25
MH-S7-SC12-576-MPOF-MPOF-A-0030M	30
MH-S7-SC12-576-MPOF-MPOF-A-0035M	35
MH-S7-SC12-576-MPOF-MPOF-A-0040M	40
MH-S7-SC12-576-MPOF-MPOF-A-0045M	45
MH-S7-SC12-576-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 576F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-S7-SC12-576-MPOF-MPOF-B-0003M	3
MH-S7-SC12-576-MPOF-MPOF-B-0005M	5
MH-S7-SC12-576-MPOF-MPOF-B-0010M	10
MH-S7-SC12-576-MPOF-MPOF-B-0015M	15
MH-S7-SC12-576-MPOF-MPOF-B-0020M	20
MH-S7-SC12-576-MPOF-MPOF-B-0025M	25
MH-S7-SC12-576-MPOF-MPOF-B-0030M	30
MH-S7-SC12-576-MPOF-MPOF-B-0035M	35
MH-S7-SC12-576-MPOF-MPOF-B-0040M	40
MH-S7-SC12-576-MPOF-MPOF-B-0045M	45
MH-S7-SC12-576-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Single-mode (G.657.A1), 576F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-S7-SC12-576-MPOF-MPOF-C-0003M	3
MH-S7-SC12-576-MPOF-MPOF-C-0005M	5
MH-S7-SC12-576-MPOF-MPOF-C-0010M	10
MH-S7-SC12-576-MPOF-MPOF-C-0015M	15
MH-S7-SC12-576-MPOF-MPOF-C-0020M	20
MH-S7-SC12-576-MPOF-MPOF-C-0025M	25
MH-S7-SC12-576-MPOF-MPOF-C-0030M	30
MH-S7-SC12-576-MPOF-MPOF-C-0035M	35
MH-S7-SC12-576-MPOF-MPOF-C-0040M	40
MH-S7-SC12-576-MPOF-MPOF-C-0045M	45
MH-S7-SC12-576-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 48F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M3-SC12-48-MPOF-MPOF-A-0003M	3
MH-M3-SC12-48-MPOF-MPOF-A-0005M	5
MH-M3-SC12-48-MPOF-MPOF-A-0010M	10
MH-M3-SC12-48-MPOF-MPOF-A-0015M	15
MH-M3-SC12-48-MPOF-MPOF-A-0020M	20
MH-M3-SC12-48-MPOF-MPOF-A-0025M	25
MH-M3-SC12-48-MPOF-MPOF-A-0030M	30
MH-M3-SC12-48-MPOF-MPOF-A-0035M	35
MH-M3-SC12-48-MPOF-MPOF-A-0040M	40
MH-M3-SC12-48-MPOF-MPOF-A-0045M	45
MH-M3-SC12-48-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 48F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M3-SC12-48-MPOF-MPOF-B-0003M	3
MH-M3-SC12-48-MPOF-MPOF-B-0005M	5
MH-M3-SC12-48-MPOF-MPOF-B-0010M	10
MH-M3-SC12-48-MPOF-MPOF-B-0015M	15
MH-M3-SC12-48-MPOF-MPOF-B-0020M	20
MH-M3-SC12-48-MPOF-MPOF-B-0025M	25
MH-M3-SC12-48-MPOF-MPOF-B-0030M	30
MH-M3-SC12-48-MPOF-MPOF-B-0035M	35
MH-M3-SC12-48-MPOF-MPOF-B-0040M	40
MH-M3-SC12-48-MPOF-MPOF-B-0045M	45
MH-M3-SC12-48-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 48F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M3-SC12-48-MPOF-MPOF-C-0003M	3
MH-M3-SC12-48-MPOF-MPOF-C-0005M	5
MH-M3-SC12-48-MPOF-MPOF-C-0010M	10
MH-M3-SC12-48-MPOF-MPOF-C-0015M	15
MH-M3-SC12-48-MPOF-MPOF-C-0020M	20
MH-M3-SC12-48-MPOF-MPOF-C-0025M	25
MH-M3-SC12-48-MPOF-MPOF-C-0030M	30
MH-M3-SC12-48-MPOF-MPOF-C-0035M	35
MH-M3-SC12-48-MPOF-MPOF-C-0040M	40
MH-M3-SC12-48-MPOF-MPOF-C-0045M	45
MH-M3-SC12-48-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 72F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M3-SC12-72-MPOF-MPOF-A-0003M	3
MH-M3-SC12-72-MPOF-MPOF-A-0005M	5
MH-M3-SC12-72-MPOF-MPOF-A-0010M	10
MH-M3-SC12-72-MPOF-MPOF-A-0015M	15
MH-M3-SC12-72-MPOF-MPOF-A-0020M	20
MH-M3-SC12-72-MPOF-MPOF-A-0025M	25
MH-M3-SC12-72-MPOF-MPOF-A-0030M	30
MH-M3-SC12-72-MPOF-MPOF-A-0035M	35
MH-M3-SC12-72-MPOF-MPOF-A-0040M	40
MH-M3-SC12-72-MPOF-MPOF-A-0045M	45
MH-M3-SC12-72-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 72F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M3-SC12-72-MPOF-MPOF-B-0003M	3
MH-M3-SC12-72-MPOF-MPOF-B-0005M	5
MH-M3-SC12-72-MPOF-MPOF-B-0010M	10
MH-M3-SC12-72-MPOF-MPOF-B-0015M	15
MH-M3-SC12-72-MPOF-MPOF-B-0020M	20
MH-M3-SC12-72-MPOF-MPOF-B-0025M	25
MH-M3-SC12-72-MPOF-MPOF-B-0030M	30
MH-M3-SC12-72-MPOF-MPOF-B-0035M	35
MH-M3-SC12-72-MPOF-MPOF-B-0040M	40
MH-M3-SC12-72-MPOF-MPOF-B-0045M	45
MH-M3-SC12-72-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 72F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M3-SC12-72-MPOF-MPOF-C-0003M	3
MH-M3-SC12-72-MPOF-MPOF-C-0005M	5
MH-M3-SC12-72-MPOF-MPOF-C-0010M	10
MH-M3-SC12-72-MPOF-MPOF-C-0015M	15
MH-M3-SC12-72-MPOF-MPOF-C-0020M	20
MH-M3-SC12-72-MPOF-MPOF-C-0025M	25
MH-M3-SC12-72-MPOF-MPOF-C-0030M	30
MH-M3-SC12-72-MPOF-MPOF-C-0035M	35
MH-M3-SC12-72-MPOF-MPOF-C-0040M	40
MH-M3-SC12-72-MPOF-MPOF-C-0045M	45
MH-M3-SC12-72-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 96F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M3-SC12-96-MPOF-MPOF-A-0003M	3
MH-M3-SC12-96-MPOF-MPOF-A-0005M	5
MH-M3-SC12-96-MPOF-MPOF-A-0010M	10
MH-M3-SC12-96-MPOF-MPOF-A-0015M	15
MH-M3-SC12-96-MPOF-MPOF-A-0020M	20
MH-M3-SC12-96-MPOF-MPOF-A-0025M	25
MH-M3-SC12-96-MPOF-MPOF-A-0030M	30
MH-M3-SC12-96-MPOF-MPOF-A-0035M	35
MH-M3-SC12-96-MPOF-MPOF-A-0040M	40
MH-M3-SC12-96-MPOF-MPOF-A-0045M	45
MH-M3-SC12-96-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 96F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M3-SC12-96-MPOF-MPOF-B-0003M	3
MH-M3-SC12-96-MPOF-MPOF-B-0005M	5
MH-M3-SC12-96-MPOF-MPOF-B-0010M	10
MH-M3-SC12-96-MPOF-MPOF-B-0015M	15
MH-M3-SC12-96-MPOF-MPOF-B-0020M	20
MH-M3-SC12-96-MPOF-MPOF-B-0025M	25
MH-M3-SC12-96-MPOF-MPOF-B-0030M	30
MH-M3-SC12-96-MPOF-MPOF-B-0035M	35
MH-M3-SC12-96-MPOF-MPOF-B-0040M	40
MH-M3-SC12-96-MPOF-MPOF-B-0045M	45
MH-M3-SC12-96-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 96F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M3-SC12-96-MPOF-MPOF-C-0003M	3
MH-M3-SC12-96-MPOF-MPOF-C-0005M	5
MH-M3-SC12-96-MPOF-MPOF-C-0010M	10
MH-M3-SC12-96-MPOF-MPOF-C-0015M	15
MH-M3-SC12-96-MPOF-MPOF-C-0020M	20
MH-M3-SC12-96-MPOF-MPOF-C-0025M	25
MH-M3-SC12-96-MPOF-MPOF-C-0030M	30
MH-M3-SC12-96-MPOF-MPOF-C-0035M	35
MH-M3-SC12-96-MPOF-MPOF-C-0040M	40
MH-M3-SC12-96-MPOF-MPOF-C-0045M	45
MH-M3-SC12-96-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 144F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M3-SC12-144-MPOF-MPOF-A-0003M	3
MH-M3-SC12-144-MPOF-MPOF-A-0005M	5
MH-M3-SC12-144-MPOF-MPOF-A-0010M	10
MH-M3-SC12-144-MPOF-MPOF-A-0015M	15
MH-M3-SC12-144-MPOF-MPOF-A-0020M	20
MH-M3-SC12-144-MPOF-MPOF-A-0025M	25
MH-M3-SC12-144-MPOF-MPOF-A-0030M	30
MH-M3-SC12-144-MPOF-MPOF-A-0035M	35
MH-M3-SC12-144-MPOF-MPOF-A-0040M	40
MH-M3-SC12-144-MPOF-MPOF-A-0045M	45
MH-M3-SC12-144-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 144F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M3-SC12-144-MPOF-MPOF-B-0003M	3
MH-M3-SC12-144-MPOF-MPOF-B-0005M	5
MH-M3-SC12-144-MPOF-MPOF-B-0010M	10
MH-M3-SC12-144-MPOF-MPOF-B-0015M	15
MH-M3-SC12-144-MPOF-MPOF-B-0020M	20
MH-M3-SC12-144-MPOF-MPOF-B-0025M	25
MH-M3-SC12-144-MPOF-MPOF-B-0030M	30
MH-M3-SC12-144-MPOF-MPOF-B-0035M	35
MH-M3-SC12-144-MPOF-MPOF-B-0040M	40
MH-M3-SC12-144-MPOF-MPOF-B-0045M	45
MH-M3-SC12-144-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM3), 144F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M3-SC12-144-MPOF-MPOF-C-0003M	3
MH-M3-SC12-144-MPOF-MPOF-C-0005M	5
MH-M3-SC12-144-MPOF-MPOF-C-0010M	10
MH-M3-SC12-144-MPOF-MPOF-C-0015M	15
MH-M3-SC12-144-MPOF-MPOF-C-0020M	20
MH-M3-SC12-144-MPOF-MPOF-C-0025M	25
MH-M3-SC12-144-MPOF-MPOF-C-0030M	30
MH-M3-SC12-144-MPOF-MPOF-C-0035M	35
MH-M3-SC12-144-MPOF-MPOF-C-0040M	40
MH-M3-SC12-144-MPOF-MPOF-C-0045M	45
MH-M3-SC12-144-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 48F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M4-SC12-48-MPOF-MPOF-A-0003M	3
MH-M4-SC12-48-MPOF-MPOF-A-0005M	5
MH-M4-SC12-48-MPOF-MPOF-A-0010M	10
MH-M4-SC12-48-MPOF-MPOF-A-0015M	15
MH-M4-SC12-48-MPOF-MPOF-A-0020M	20
MH-M4-SC12-48-MPOF-MPOF-A-0025M	25
MH-M4-SC12-48-MPOF-MPOF-A-0030M	30
MH-M4-SC12-48-MPOF-MPOF-A-0035M	35
MH-M4-SC12-48-MPOF-MPOF-A-0040M	40
MH-M4-SC12-48-MPOF-MPOF-A-0045M	45
MH-M4-SC12-48-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 48F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M4-SC12-48-MPOF-MPOF-B-0003M	3
MH-M4-SC12-48-MPOF-MPOF-B-0005M	5
MH-M4-SC12-48-MPOF-MPOF-B-0010M	10
MH-M4-SC12-48-MPOF-MPOF-B-0015M	15
MH-M4-SC12-48-MPOF-MPOF-B-0020M	20
MH-M4-SC12-48-MPOF-MPOF-B-0025M	25
MH-M4-SC12-48-MPOF-MPOF-B-0030M	30
MH-M4-SC12-48-MPOF-MPOF-B-0035M	35
MH-M4-SC12-48-MPOF-MPOF-B-0040M	40
MH-M4-SC12-48-MPOF-MPOF-B-0045M	45
MH-M4-SC12-48-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 48F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M4-SC12-48-MPOF-MPOF-C-0003M	3
MH-M4-SC12-48-MPOF-MPOF-C-0005M	5
MH-M4-SC12-48-MPOF-MPOF-C-0010M	10
MH-M4-SC12-48-MPOF-MPOF-C-0015M	15
MH-M4-SC12-48-MPOF-MPOF-C-0020M	20
MH-M4-SC12-48-MPOF-MPOF-C-0025M	25
MH-M4-SC12-48-MPOF-MPOF-C-0030M	30
MH-M4-SC12-48-MPOF-MPOF-C-0035M	35
MH-M4-SC12-48-MPOF-MPOF-C-0040M	40
MH-M4-SC12-48-MPOF-MPOF-C-0045M	45
MH-M4-SC12-48-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 72F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M4-SC12-72-MPOF-MPOF-A-0003M	3
MH-M4-SC12-72-MPOF-MPOF-A-0005M	5
MH-M4-SC12-72-MPOF-MPOF-A-0010M	10
MH-M4-SC12-72-MPOF-MPOF-A-0015M	15
MH-M4-SC12-72-MPOF-MPOF-A-0020M	20
MH-M4-SC12-72-MPOF-MPOF-A-0025M	25
MH-M4-SC12-72-MPOF-MPOF-A-0030M	30
MH-M4-SC12-72-MPOF-MPOF-A-0035M	35
MH-M4-SC12-72-MPOF-MPOF-A-0040M	40
MH-M4-SC12-72-MPOF-MPOF-A-0045M	45
MH-M4-SC12-72-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 72F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M4-SC12-72-MPOF-MPOF-B-0003M	3
MH-M4-SC12-72-MPOF-MPOF-B-0005M	5
MH-M4-SC12-72-MPOF-MPOF-B-0010M	10
MH-M4-SC12-72-MPOF-MPOF-B-0015M	15
MH-M4-SC12-72-MPOF-MPOF-B-0020M	20
MH-M4-SC12-72-MPOF-MPOF-B-0025M	25
MH-M4-SC12-72-MPOF-MPOF-B-0030M	30
MH-M4-SC12-72-MPOF-MPOF-B-0035M	35
MH-M4-SC12-72-MPOF-MPOF-B-0040M	40
MH-M4-SC12-72-MPOF-MPOF-B-0045M	45
MH-M4-SC12-72-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 72F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M4-SC12-72-MPOF-MPOF-C-0003M	3
MH-M4-SC12-72-MPOF-MPOF-C-0005M	5
MH-M4-SC12-72-MPOF-MPOF-C-0010M	10
MH-M4-SC12-72-MPOF-MPOF-C-0015M	15
MH-M4-SC12-72-MPOF-MPOF-C-0020M	20
MH-M4-SC12-72-MPOF-MPOF-C-0025M	25
MH-M4-SC12-72-MPOF-MPOF-C-0030M	30
MH-M4-SC12-72-MPOF-MPOF-C-0035M	35
MH-M4-SC12-72-MPOF-MPOF-C-0040M	40
MH-M4-SC12-72-MPOF-MPOF-C-0045M	45
MH-M4-SC12-72-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 96F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M4-SC12-96-MPOF-MPOF-A-0003M	3
MH-M4-SC12-96-MPOF-MPOF-A-0005M	5
MH-M4-SC12-96-MPOF-MPOF-A-0010M	10
MH-M4-SC12-96-MPOF-MPOF-A-0015M	15
MH-M4-SC12-96-MPOF-MPOF-A-0020M	20
MH-M4-SC12-96-MPOF-MPOF-A-0025M	25
MH-M4-SC12-96-MPOF-MPOF-A-0030M	30
MH-M4-SC12-96-MPOF-MPOF-A-0035M	35
MH-M4-SC12-96-MPOF-MPOF-A-0040M	40
MH-M4-SC12-96-MPOF-MPOF-A-0045M	45
MH-M4-SC12-96-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 96F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M4-SC12-96-MPOF-MPOF-B-0003M	3
MH-M4-SC12-96-MPOF-MPOF-B-0005M	5
MH-M4-SC12-96-MPOF-MPOF-B-0010M	10
MH-M4-SC12-96-MPOF-MPOF-B-0015M	15
MH-M4-SC12-96-MPOF-MPOF-B-0020M	20
MH-M4-SC12-96-MPOF-MPOF-B-0025M	25
MH-M4-SC12-96-MPOF-MPOF-B-0030M	30
MH-M4-SC12-96-MPOF-MPOF-B-0035M	35
MH-M4-SC12-96-MPOF-MPOF-B-0040M	40
MH-M4-SC12-96-MPOF-MPOF-B-0045M	45
MH-M4-SC12-96-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 96F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M4-SC12-96-MPOF-MPOF-C-0003M	3
MH-M4-SC12-96-MPOF-MPOF-C-0005M	5
MH-M4-SC12-96-MPOF-MPOF-C-0010M	10
MH-M4-SC12-96-MPOF-MPOF-C-0015M	15
MH-M4-SC12-96-MPOF-MPOF-C-0020M	20
MH-M4-SC12-96-MPOF-MPOF-C-0025M	25
MH-M4-SC12-96-MPOF-MPOF-C-0030M	30
MH-M4-SC12-96-MPOF-MPOF-C-0035M	35
MH-M4-SC12-96-MPOF-MPOF-C-0040M	40
MH-M4-SC12-96-MPOF-MPOF-C-0045M	45
MH-M4-SC12-96-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 144F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M4-SC12-144-MPOF-MPOF-A-0003M	3
MH-M4-SC12-144-MPOF-MPOF-A-0005M	5
MH-M4-SC12-144-MPOF-MPOF-A-0010M	10
MH-M4-SC12-144-MPOF-MPOF-A-0015M	15
MH-M4-SC12-144-MPOF-MPOF-A-0020M	20
MH-M4-SC12-144-MPOF-MPOF-A-0025M	25
MH-M4-SC12-144-MPOF-MPOF-A-0030M	30
MH-M4-SC12-144-MPOF-MPOF-A-0035M	35
MH-M4-SC12-144-MPOF-MPOF-A-0040M	40
MH-M4-SC12-144-MPOF-MPOF-A-0045M	45
MH-M4-SC12-144-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 144F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M4-SC12-144-MPOF-MPOF-B-0003M	3
MH-M4-SC12-144-MPOF-MPOF-B-0005M	5
MH-M4-SC12-144-MPOF-MPOF-B-0010M	10
MH-M4-SC12-144-MPOF-MPOF-B-0015M	15
MH-M4-SC12-144-MPOF-MPOF-B-0020M	20
MH-M4-SC12-144-MPOF-MPOF-B-0025M	25
MH-M4-SC12-144-MPOF-MPOF-B-0030M	30
MH-M4-SC12-144-MPOF-MPOF-B-0035M	35
MH-M4-SC12-144-MPOF-MPOF-B-0040M	40
MH-M4-SC12-144-MPOF-MPOF-B-0045M	45
MH-M4-SC12-144-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM4), 144F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M4-SC12-144-MPOF-MPOF-C-0003M	3
MH-M4-SC12-144-MPOF-MPOF-C-0005M	5
MH-M4-SC12-144-MPOF-MPOF-C-0010M	10
MH-M4-SC12-144-MPOF-MPOF-C-0015M	15
MH-M4-SC12-144-MPOF-MPOF-C-0020M	20
MH-M4-SC12-144-MPOF-MPOF-C-0025M	25
MH-M4-SC12-144-MPOF-MPOF-C-0030M	30
MH-M4-SC12-144-MPOF-MPOF-C-0035M	35
MH-M4-SC12-144-MPOF-MPOF-C-0040M	40
MH-M4-SC12-144-MPOF-MPOF-C-0045M	45
MH-M4-SC12-144-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 48F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M5-SC12-48-MPOF-MPOF-A-0003M	3
MH-M5-SC12-48-MPOF-MPOF-A-0005M	5
MH-M5-SC12-48-MPOF-MPOF-A-0010M	10
MH-M5-SC12-48-MPOF-MPOF-A-0015M	15
MH-M5-SC12-48-MPOF-MPOF-A-0020M	20
MH-M5-SC12-48-MPOF-MPOF-A-0025M	25
MH-M5-SC12-48-MPOF-MPOF-A-0030M	30
MH-M5-SC12-48-MPOF-MPOF-A-0035M	35
MH-M5-SC12-48-MPOF-MPOF-A-0040M	40
MH-M5-SC12-48-MPOF-MPOF-A-0045M	45
MH-M5-SC12-48-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 48F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M5-SC12-48-MPOF-MPOF-B-0003M	3
MH-M5-SC12-48-MPOF-MPOF-B-0005M	5
MH-M5-SC12-48-MPOF-MPOF-B-0010M	10
MH-M5-SC12-48-MPOF-MPOF-B-0015M	15
MH-M5-SC12-48-MPOF-MPOF-B-0020M	20
MH-M5-SC12-48-MPOF-MPOF-B-0025M	25
MH-M5-SC12-48-MPOF-MPOF-B-0030M	30
MH-M5-SC12-48-MPOF-MPOF-B-0035M	35
MH-M5-SC12-48-MPOF-MPOF-B-0040M	40
MH-M5-SC12-48-MPOF-MPOF-B-0045M	45
MH-M5-SC12-48-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 48F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M5-SC12-48-MPOF-MPOF-C-0003M	3
MH-M5-SC12-48-MPOF-MPOF-C-0005M	5
MH-M5-SC12-48-MPOF-MPOF-C-0010M	10
MH-M5-SC12-48-MPOF-MPOF-C-0015M	15
MH-M5-SC12-48-MPOF-MPOF-C-0020M	20
MH-M5-SC12-48-MPOF-MPOF-C-0025M	25
MH-M5-SC12-48-MPOF-MPOF-C-0030M	30
MH-M5-SC12-48-MPOF-MPOF-C-0035M	35
MH-M5-SC12-48-MPOF-MPOF-C-0040M	40
MH-M5-SC12-48-MPOF-MPOF-C-0045M	45
MH-M5-SC12-48-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 72F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M5-SC12-72-MPOF-MPOF-A-0003M	3
MH-M5-SC12-72-MPOF-MPOF-A-0005M	5
MH-M5-SC12-72-MPOF-MPOF-A-0010M	10
MH-M5-SC12-72-MPOF-MPOF-A-0015M	15
MH-M5-SC12-72-MPOF-MPOF-A-0020M	20
MH-M5-SC12-72-MPOF-MPOF-A-0025M	25
MH-M5-SC12-72-MPOF-MPOF-A-0030M	30
MH-M5-SC12-72-MPOF-MPOF-A-0035M	35
MH-M5-SC12-72-MPOF-MPOF-A-0040M	40
MH-M5-SC12-72-MPOF-MPOF-A-0045M	45
MH-M5-SC12-72-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 72F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M5-SC12-72-MPOF-MPOF-B-0003M	3
MH-M5-SC12-72-MPOF-MPOF-B-0005M	5
MH-M5-SC12-72-MPOF-MPOF-B-0010M	10
MH-M5-SC12-72-MPOF-MPOF-B-0015M	15
MH-M5-SC12-72-MPOF-MPOF-B-0020M	20
MH-M5-SC12-72-MPOF-MPOF-B-0025M	25
MH-M5-SC12-72-MPOF-MPOF-B-0030M	30
MH-M5-SC12-72-MPOF-MPOF-B-0035M	35
MH-M5-SC12-72-MPOF-MPOF-B-0040M	40
MH-M5-SC12-72-MPOF-MPOF-B-0045M	45
MH-M5-SC12-72-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 72F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M5-SC12-72-MPOF-MPOF-C-0003M	3
MH-M5-SC12-72-MPOF-MPOF-C-0005M	5
MH-M5-SC12-72-MPOF-MPOF-C-0010M	10
MH-M5-SC12-72-MPOF-MPOF-C-0015M	15
MH-M5-SC12-72-MPOF-MPOF-C-0020M	20
MH-M5-SC12-72-MPOF-MPOF-C-0025M	25
MH-M5-SC12-72-MPOF-MPOF-C-0030M	30
MH-M5-SC12-72-MPOF-MPOF-C-0035M	35
MH-M5-SC12-72-MPOF-MPOF-C-0040M	40
MH-M5-SC12-72-MPOF-MPOF-C-0045M	45
MH-M5-SC12-72-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 96F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M5-SC12-96-MPOF-MPOF-A-0003M	3
MH-M5-SC12-96-MPOF-MPOF-A-0005M	5
MH-M5-SC12-96-MPOF-MPOF-A-0010M	10
MH-M5-SC12-96-MPOF-MPOF-A-0015M	15
MH-M5-SC12-96-MPOF-MPOF-A-0020M	20
MH-M5-SC12-96-MPOF-MPOF-A-0025M	25
MH-M5-SC12-96-MPOF-MPOF-A-0030M	30
MH-M5-SC12-96-MPOF-MPOF-A-0035M	35
MH-M5-SC12-96-MPOF-MPOF-A-0040M	40
MH-M5-SC12-96-MPOF-MPOF-A-0045M	45
MH-M5-SC12-96-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 96F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M5-SC12-96-MPOF-MPOF-B-0003M	3
MH-M5-SC12-96-MPOF-MPOF-B-0005M	5
MH-M5-SC12-96-MPOF-MPOF-B-0010M	10
MH-M5-SC12-96-MPOF-MPOF-B-0015M	15
MH-M5-SC12-96-MPOF-MPOF-B-0020M	20
MH-M5-SC12-96-MPOF-MPOF-B-0025M	25
MH-M5-SC12-96-MPOF-MPOF-B-0030M	30
MH-M5-SC12-96-MPOF-MPOF-B-0035M	35
MH-M5-SC12-96-MPOF-MPOF-B-0040M	40
MH-M5-SC12-96-MPOF-MPOF-B-0045M	45
MH-M5-SC12-96-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 96F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M5-SC12-96-MPOF-MPOF-C-0003M	3
MH-M5-SC12-96-MPOF-MPOF-C-0005M	5
MH-M5-SC12-96-MPOF-MPOF-C-0010M	10
MH-M5-SC12-96-MPOF-MPOF-C-0015M	15
MH-M5-SC12-96-MPOF-MPOF-C-0020M	20
MH-M5-SC12-96-MPOF-MPOF-C-0025M	25
MH-M5-SC12-96-MPOF-MPOF-C-0030M	30
MH-M5-SC12-96-MPOF-MPOF-C-0035M	35
MH-M5-SC12-96-MPOF-MPOF-C-0040M	40
MH-M5-SC12-96-MPOF-MPOF-C-0045M	45
MH-M5-SC12-96-MPOF-MPOF-C-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 144F, MPO-12 to MPO-12, Polarity A, LSZH
Part Number	Length (m)
MH-M5-SC12-144-MPOF-MPOF-A-0003M	3
MH-M5-SC12-144-MPOF-MPOF-A-0005M	5
MH-M5-SC12-144-MPOF-MPOF-A-0010M	10
MH-M5-SC12-144-MPOF-MPOF-A-0015M	15
MH-M5-SC12-144-MPOF-MPOF-A-0020M	20
MH-M5-SC12-144-MPOF-MPOF-A-0025M	25
MH-M5-SC12-144-MPOF-MPOF-A-0030M	30
MH-M5-SC12-144-MPOF-MPOF-A-0035M	35
MH-M5-SC12-144-MPOF-MPOF-A-0040M	40
MH-M5-SC12-144-MPOF-MPOF-A-0045M	45
MH-M5-SC12-144-MPOF-MPOF-A-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 144F, MPO-12 to MPO-12, Polarity B, LSZH
Part Number	Length (m)
MH-M5-SC12-144-MPOF-MPOF-B-0003M	3
MH-M5-SC12-144-MPOF-MPOF-B-0005M	5
MH-M5-SC12-144-MPOF-MPOF-B-0010M	10
MH-M5-SC12-144-MPOF-MPOF-B-0015M	15
MH-M5-SC12-144-MPOF-MPOF-B-0020M	20
MH-M5-SC12-144-MPOF-MPOF-B-0025M	25
MH-M5-SC12-144-MPOF-MPOF-B-0030M	30
MH-M5-SC12-144-MPOF-MPOF-B-0035M	35
MH-M5-SC12-144-MPOF-MPOF-B-0040M	40
MH-M5-SC12-144-MPOF-MPOF-B-0045M	45
MH-M5-SC12-144-MPOF-MPOF-B-0050M	50

Fibre Optic Assembly, Multi-mode (OM5), 144F, MPO-12 to MPO-12, Polarity C, LSZH
Part Number	Length (m)
MH-M5-SC12-144-MPOF-MPOF-C-0003M	3
MH-M5-SC12-144-MPOF-MPOF-C-0005M	5
MH-M5-SC12-144-MPOF-MPOF-C-0010M	10
MH-M5-SC12-144-MPOF-MPOF-C-0015M	15
MH-M5-SC12-144-MPOF-MPOF-C-0020M	20
MH-M5-SC12-144-MPOF-MPOF-C-0025M	25
MH-M5-SC12-144-MPOF-MPOF-C-0030M	30
MH-M5-SC12-144-MPOF-MPOF-C-0035M	35
MH-M5-SC12-144-MPOF-MPOF-C-0040M	40
MH-M5-SC12-144-MPOF-MPOF-C-0045M	45
MH-M5-SC12-144-MPOF-MPOF-C-0050M	50
