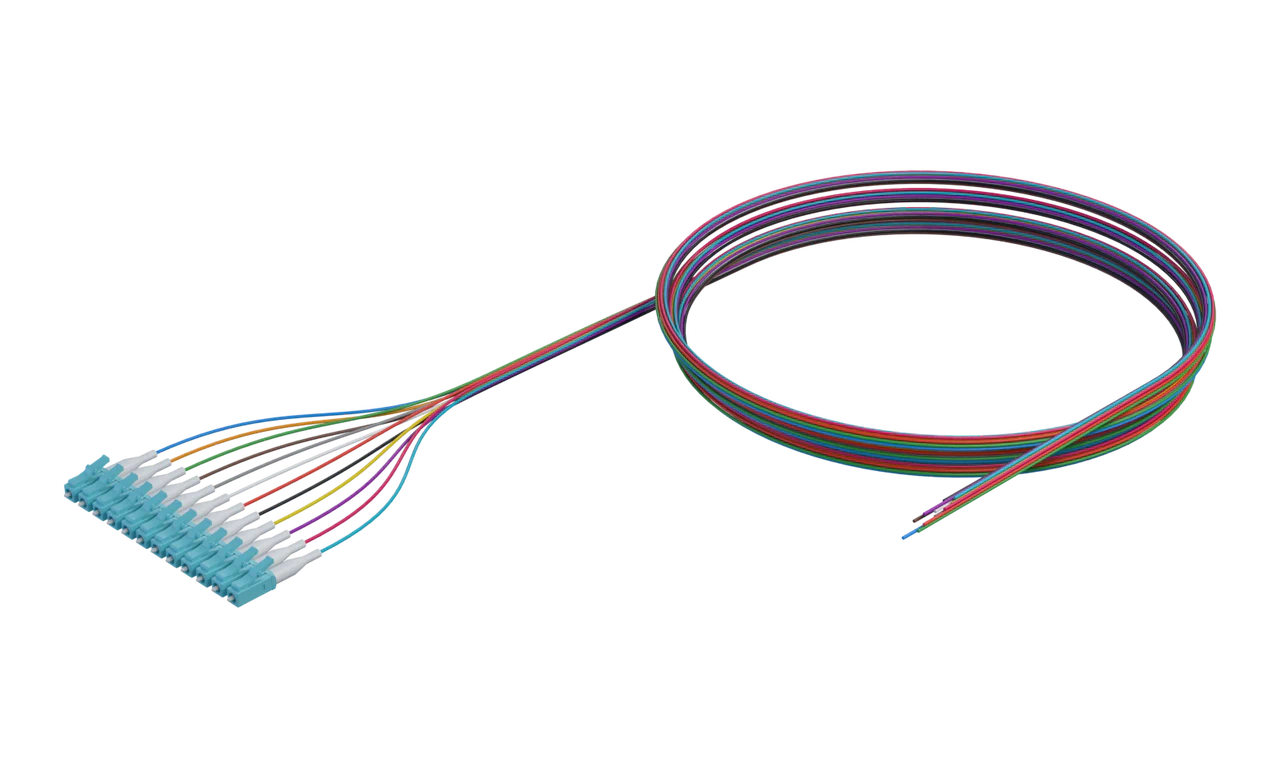

900µm SafeSTRIP™ Buffered Pigtails

Colour-coded 900 µm buffered pigtails available in G.657.A1 single-mode and OM3, OM4, OM5 multimode for high-performance splicing and integration.
  • 900 µm buffered fibre for field splicing
  • Available in G.657.A1 (single-mode) and OM3, OM4, OM5 (multimode)
  • Factory-polished in all major connectors
  • UPC and APC polish options for performance tuning
  • Colour-coded buffer for rapid field identification
  • Low insertion loss and return loss

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

Buffered pigtails with a 900 µm tight buffer are engineered for fast, precise splicing in fibre trays, termination boxes, and patch panels. Each unit is factory-terminated and tested, providing reliable performance and minimal insertion loss.

Available in a range of fibre types — including bend-insensitive G.657.A1 single-mode, and multimode grades OM3, OM4, and OM5 — these pigtails are suited to a wide array of deployment environments including FTTx, enterprise, data centre, and campus networks.

Each pigtail features SafeSTRIP™ buffer technology, allowing for easy stripping, high levels of fibre protection, and maximum compatibility. All pigtails are colour-coded for identification, and offered in multiple connector types and polish options to suit your termination standards.

Technical Specifications
Buffer Type900 µm SafeSTRIP™ buffer
Fibre TypesSingle-mode G.657.A1, Multimode OM1, OM3, OM4, OM5
Connector TypesLC, SC, FC, ST and mother major connectors
Polish OptionsUPC or APC
Cable LengthStandard 2 meters, other lengths available upon request
Operating Temperature-20°C to +70°C
ComplianceIEC 61754, TIA/EIA-568, RoHS, REACH
Single-mode (G.657.A1), SafeSTRIP™ Buffered
Part NumberDescription

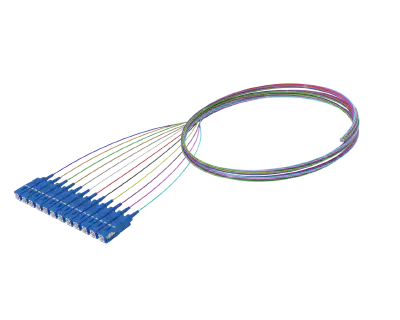

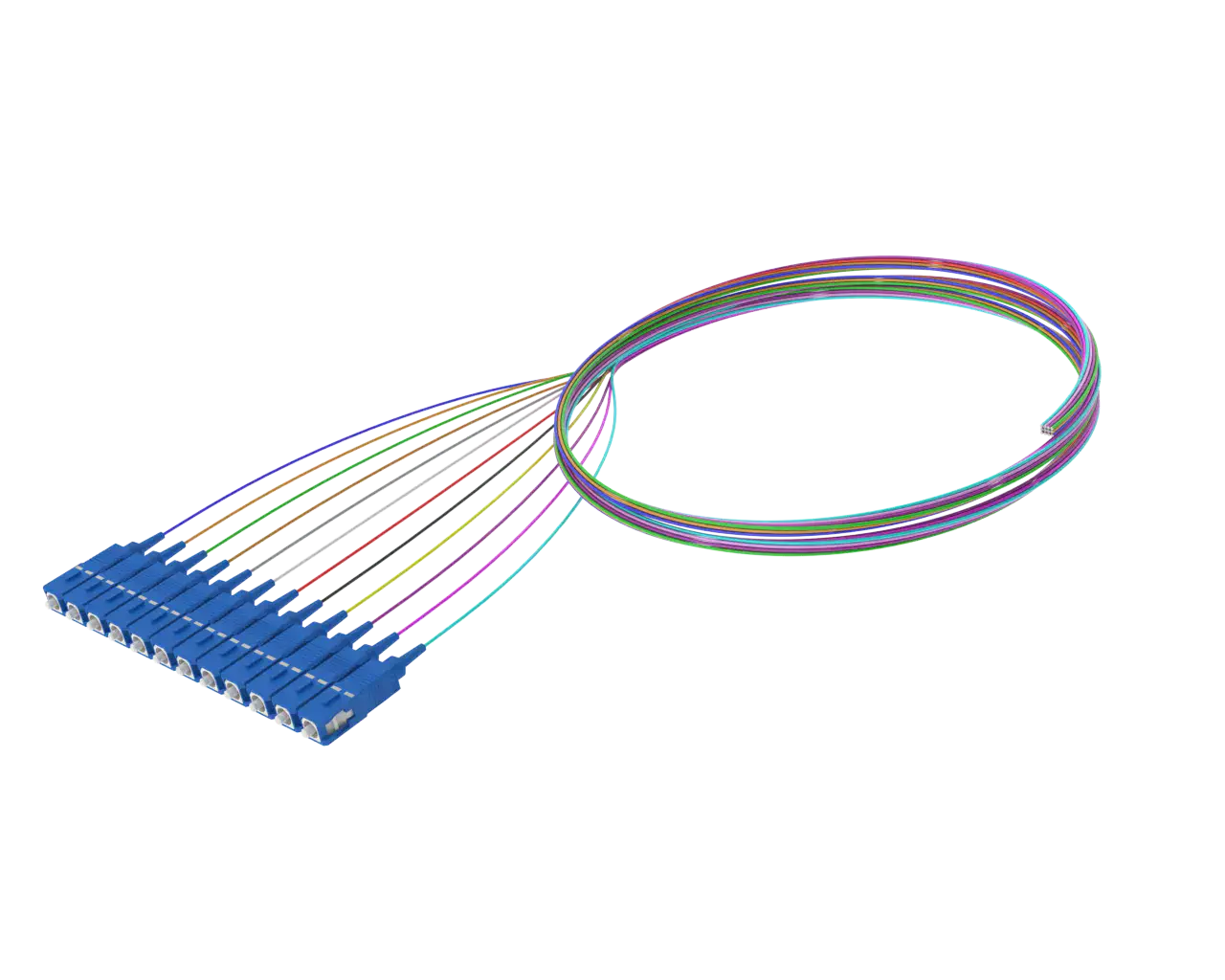

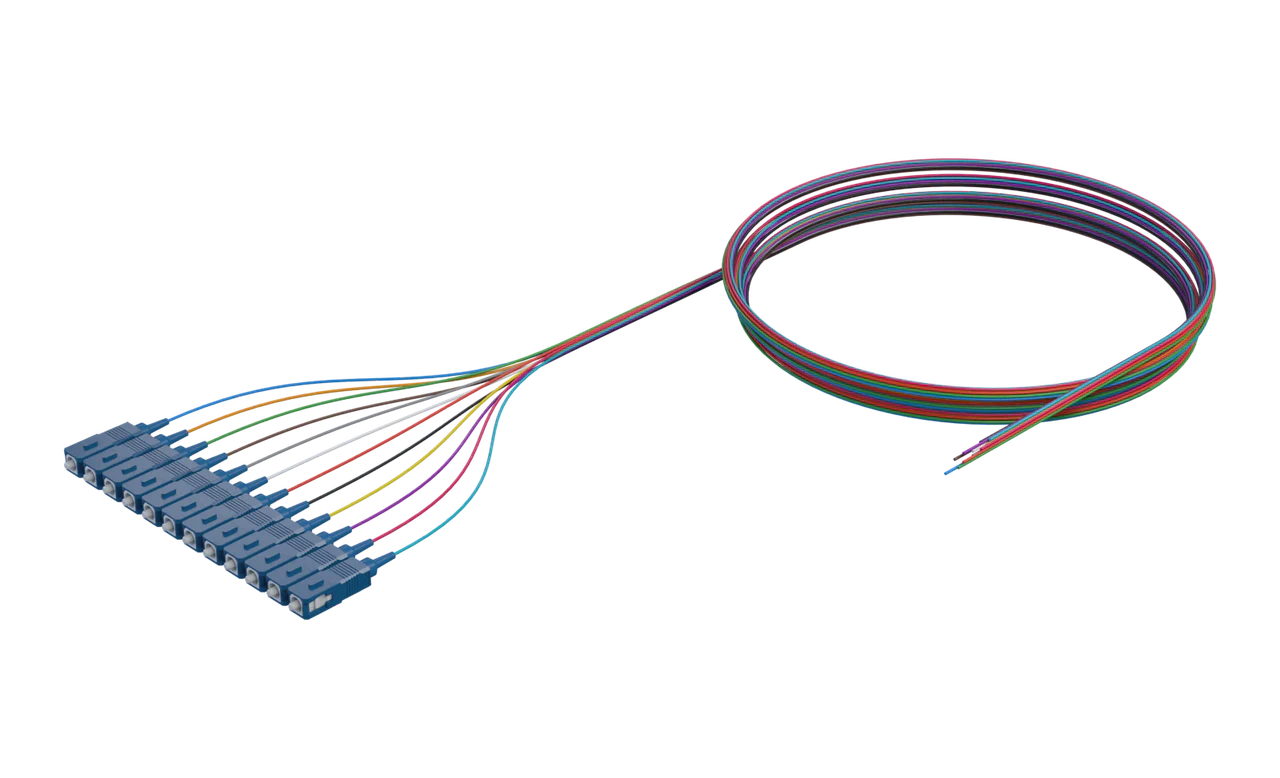

PT-S7-B9-SC-2M-12Pigtail, Single Mode (G.657.A1), SafeSTRIP™ Buffered 900um, SC/UPC, 2 metres, 12PK, Coloured

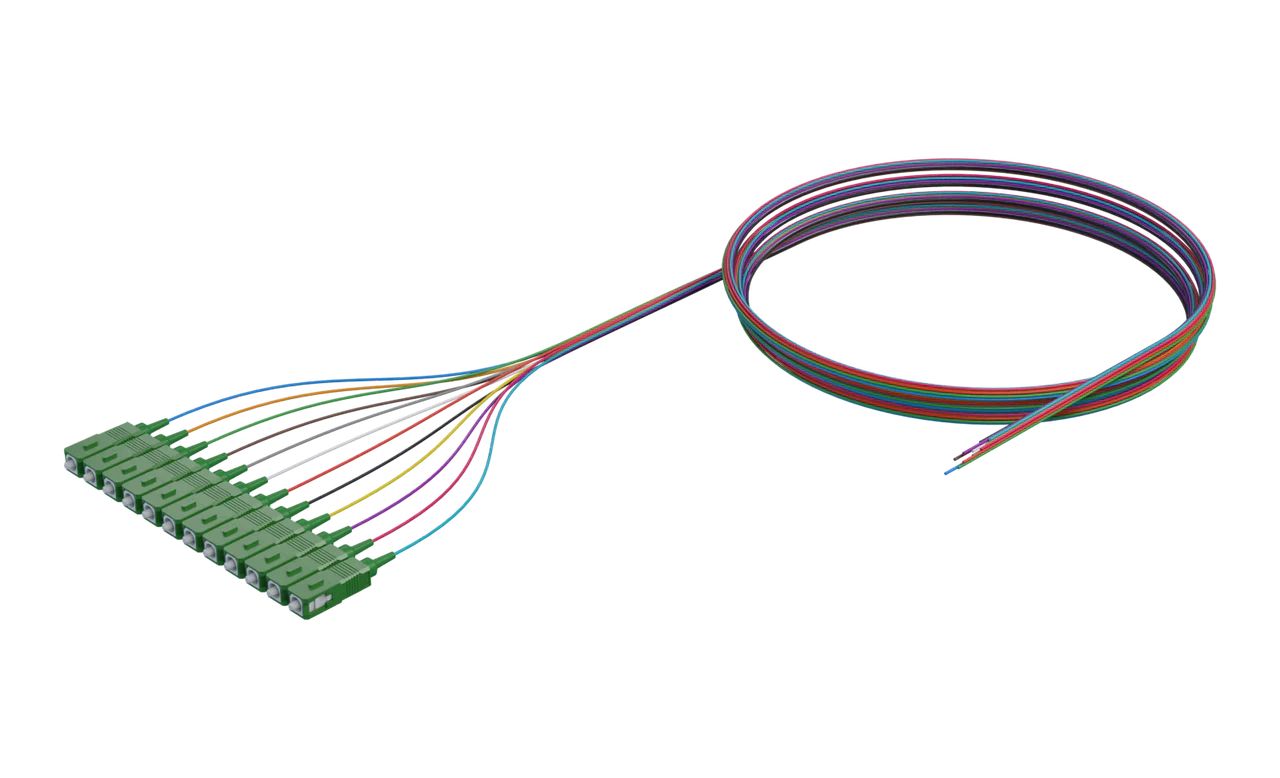

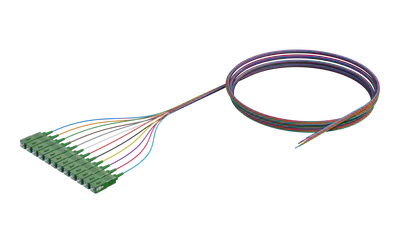

PT-S7-B9-SCA-2M-12Pigtail, Single Mode (G.657.A1), SafeSTRIP™ Buffered 900um, SC/APC, 2 metres, 12PK, Coloured

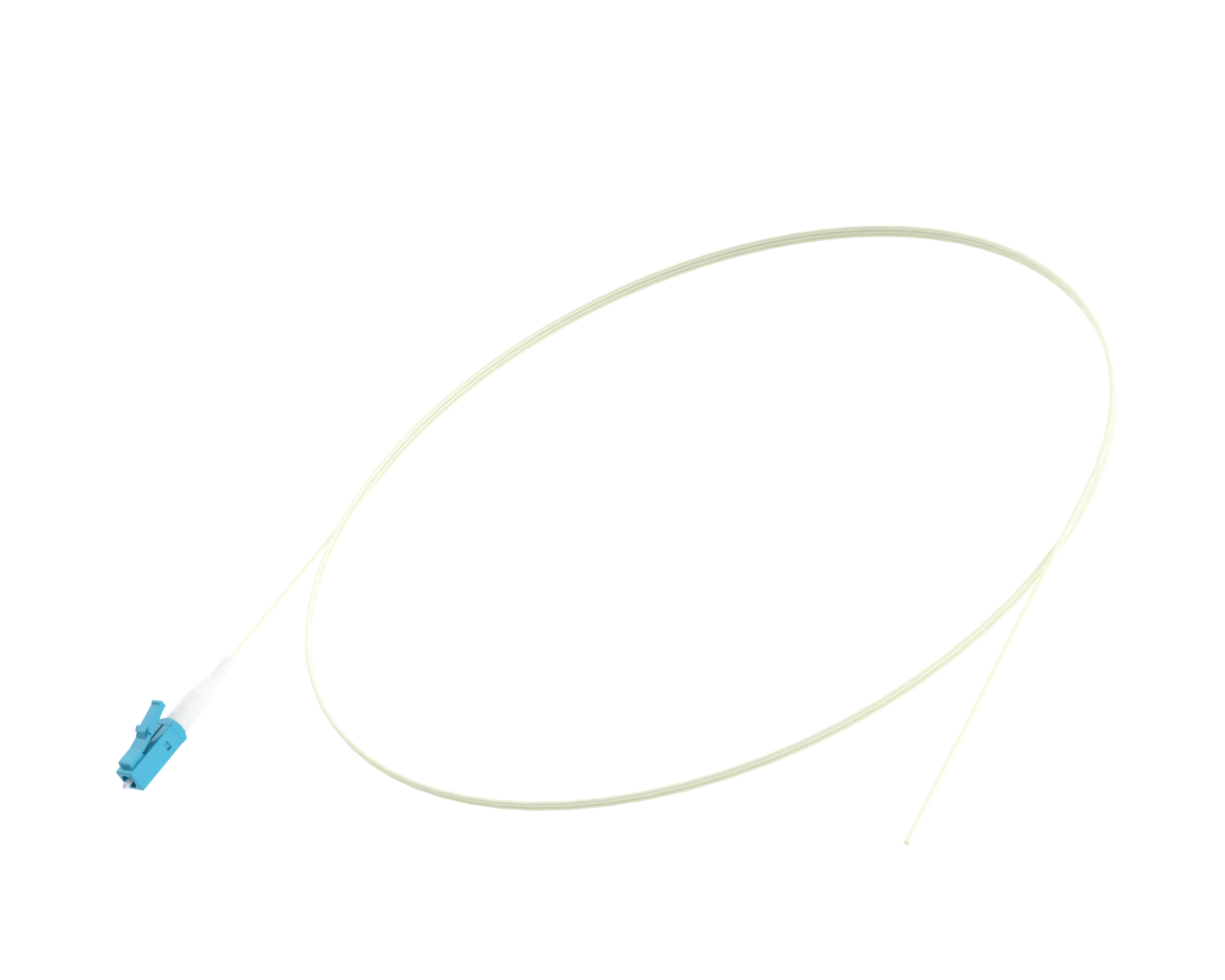

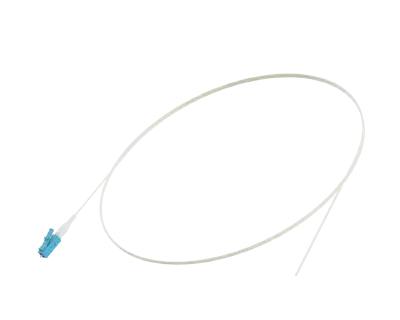

PT-S7-B9-LC-2M-12Pigtail, Single Mode (G.657.A1), SafeSTRIP™ Buffered 900um, LC/UPC, 2 metres, 12PK, Coloured

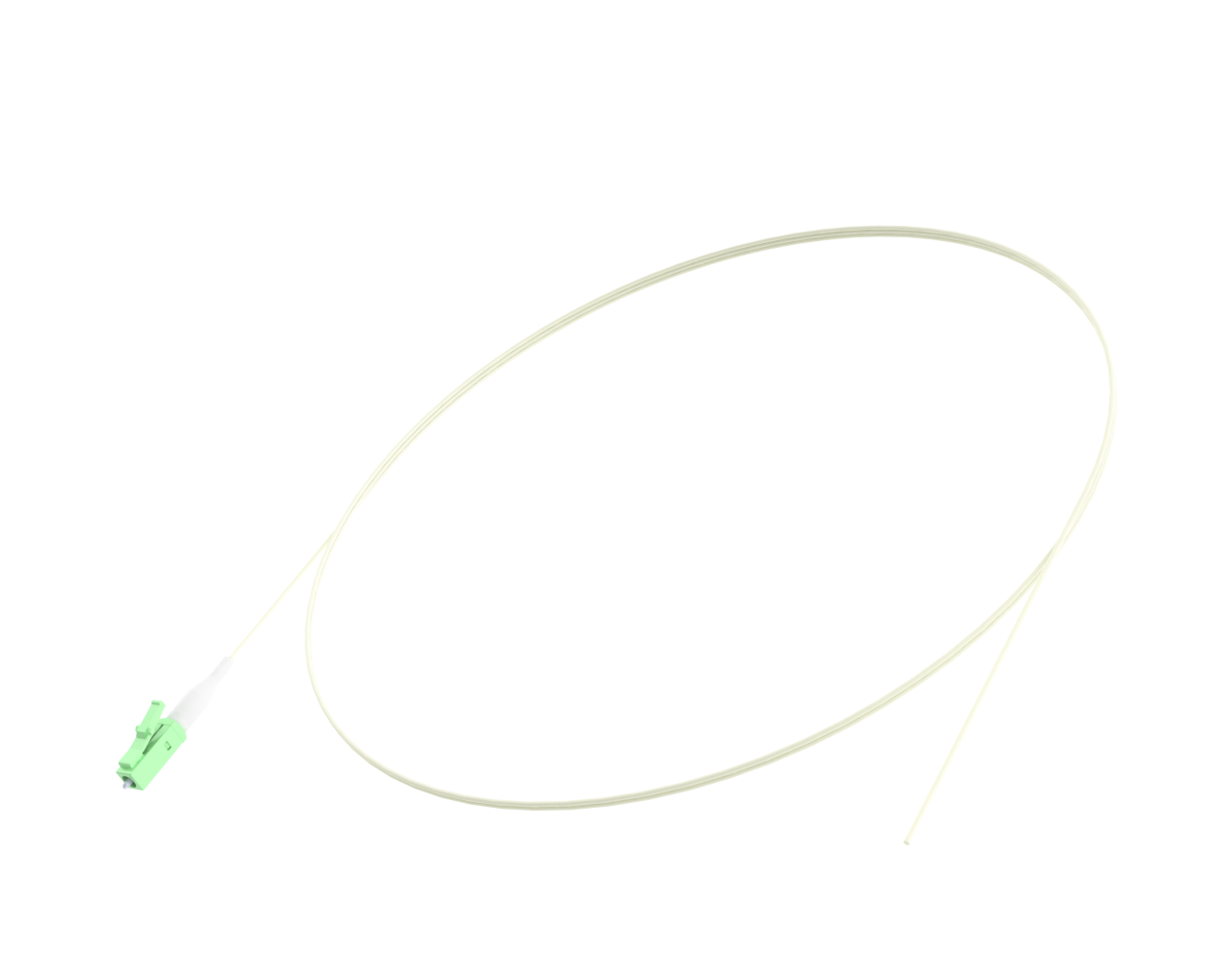

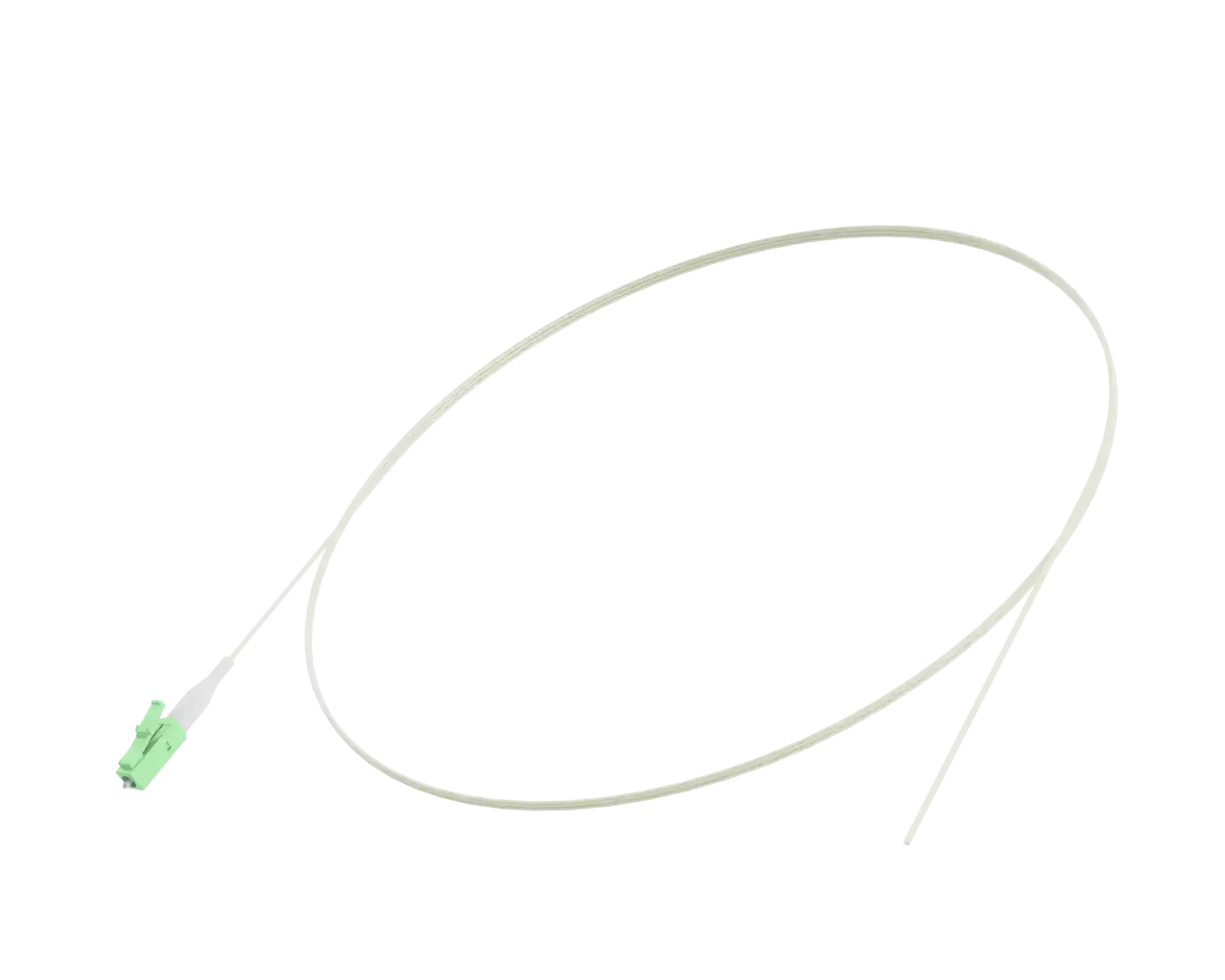

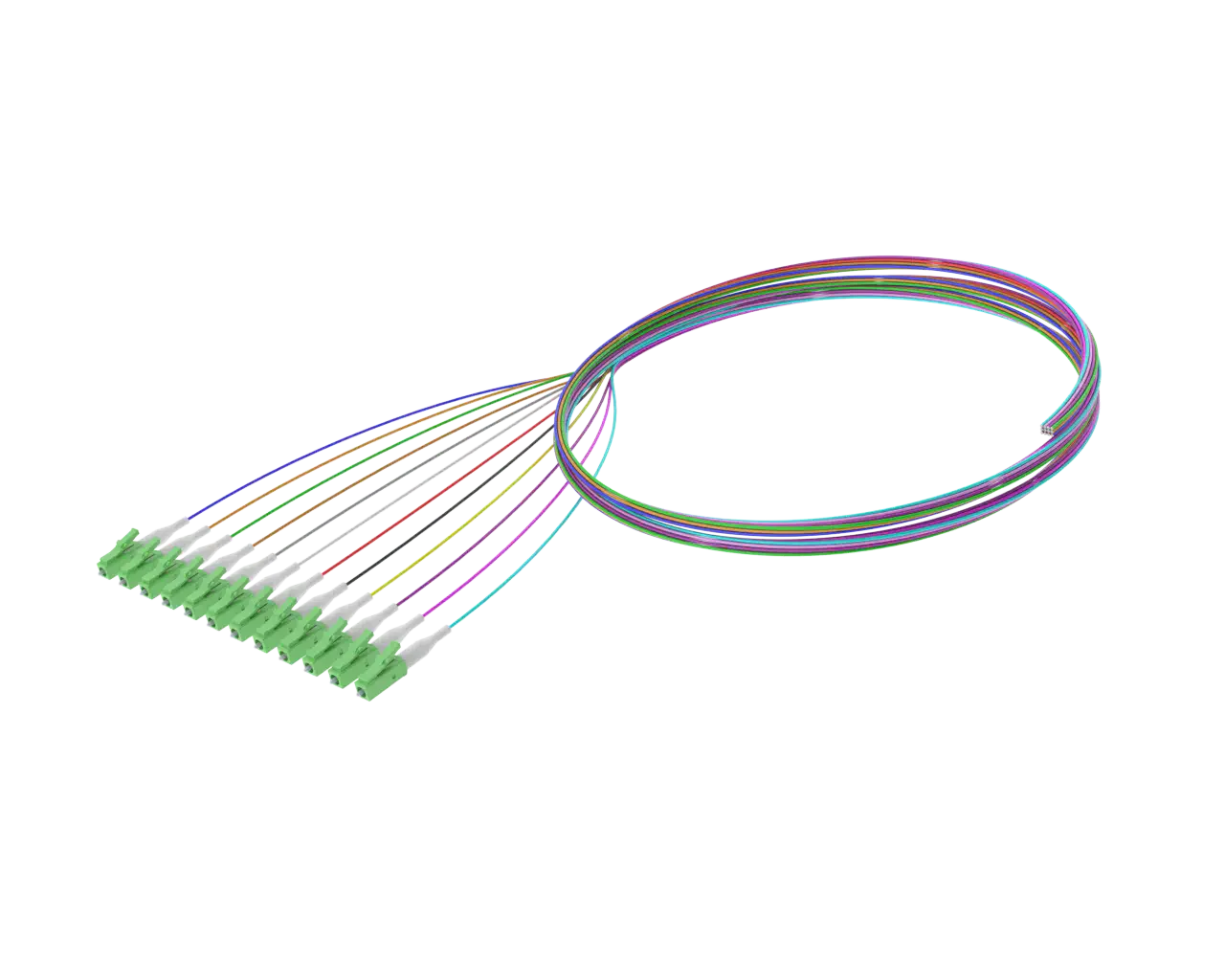

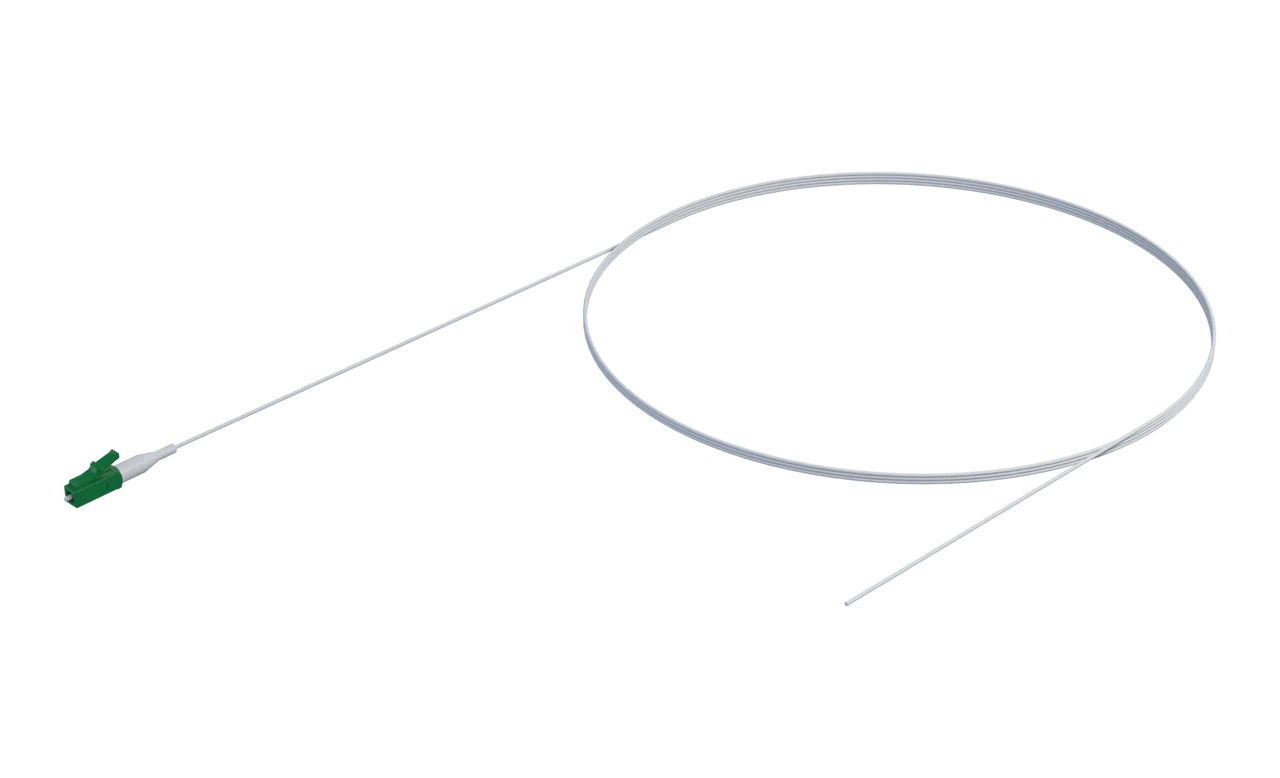

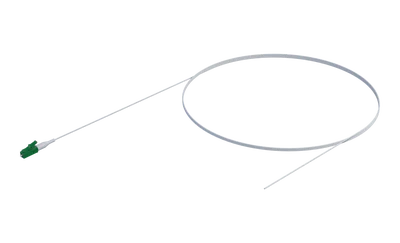

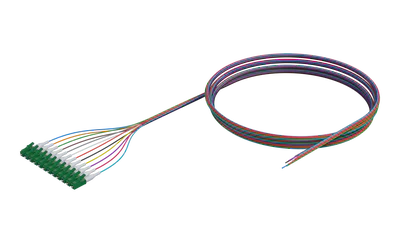

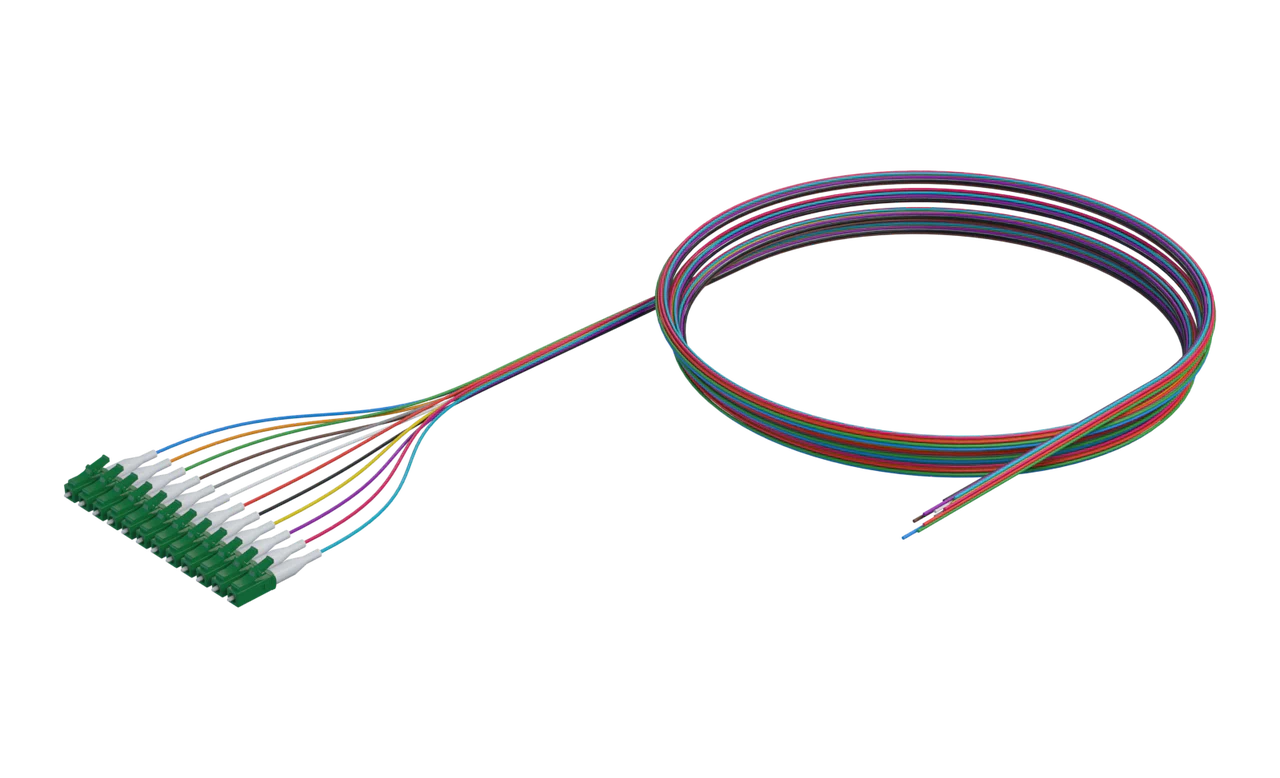

PT-S7-B9-LCA-2M-12Pigtail, Single Mode (G.657.A1), SafeSTRIP™ Buffered 900um, LC/APC, 2 metres, 12PK, Coloured
PT-S7-B9-ST-2M-12Pigtail, Single Mode (G.657.A1), SafeSTRIP™ Buffered 900um, ST/UPC, 2 metres, 12PK, Coloured
Multi-mode, OM4, SafeSTRIP™ Buffered
Part NumberDescription

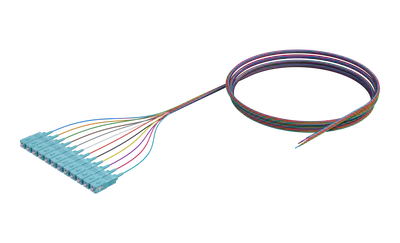

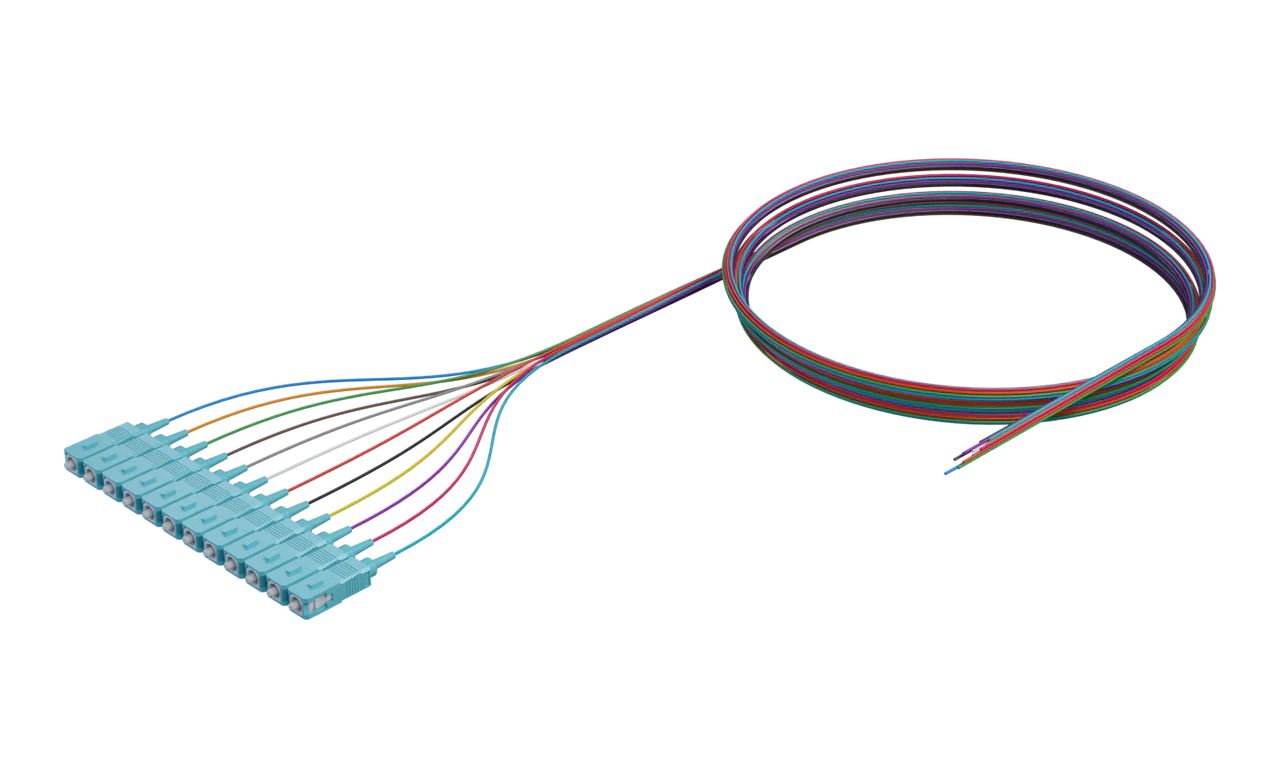

PT-M4-B9-SC-2M-12Pigtail, Multi-Mode (OM4), SafeSTRIP™ Buffered 900um, SC/UPC, 2 metres, 12PK, Coloured

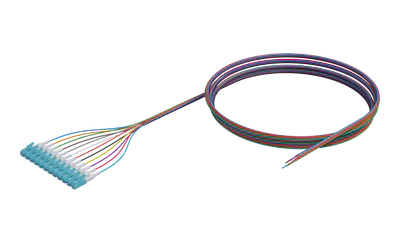

PT-M4-B9-LC-2M-12Pigtail, Multi-Mode (OM4), SafeSTRIP™ Buffered 900um, LC/UPC, 2 metres, 12PK, Coloured
PT-M4-B9-ST-2M-12Pigtail, Multi-Mode (OM4), SafeSTRIP™ Buffered 900um, ST/UPC, 2 metres, 12PK, Coloured
Multi-mode, OM5, SafeSTRIP™ Buffered
Part NumberDescription
PT-M5-B9-SC-2M-12Pigtail, Multi-Mode (OM5), SafeSTRIP™ Buffered 900um, SC/UPC, 2 metres, 12PK, Coloured
PT-M5-B9-LC-2M-12Pigtail, Multi-Mode (OM5), SafeSTRIP™ Buffered 900um, LC/UPC, 2 metres, 12PK, Coloured
