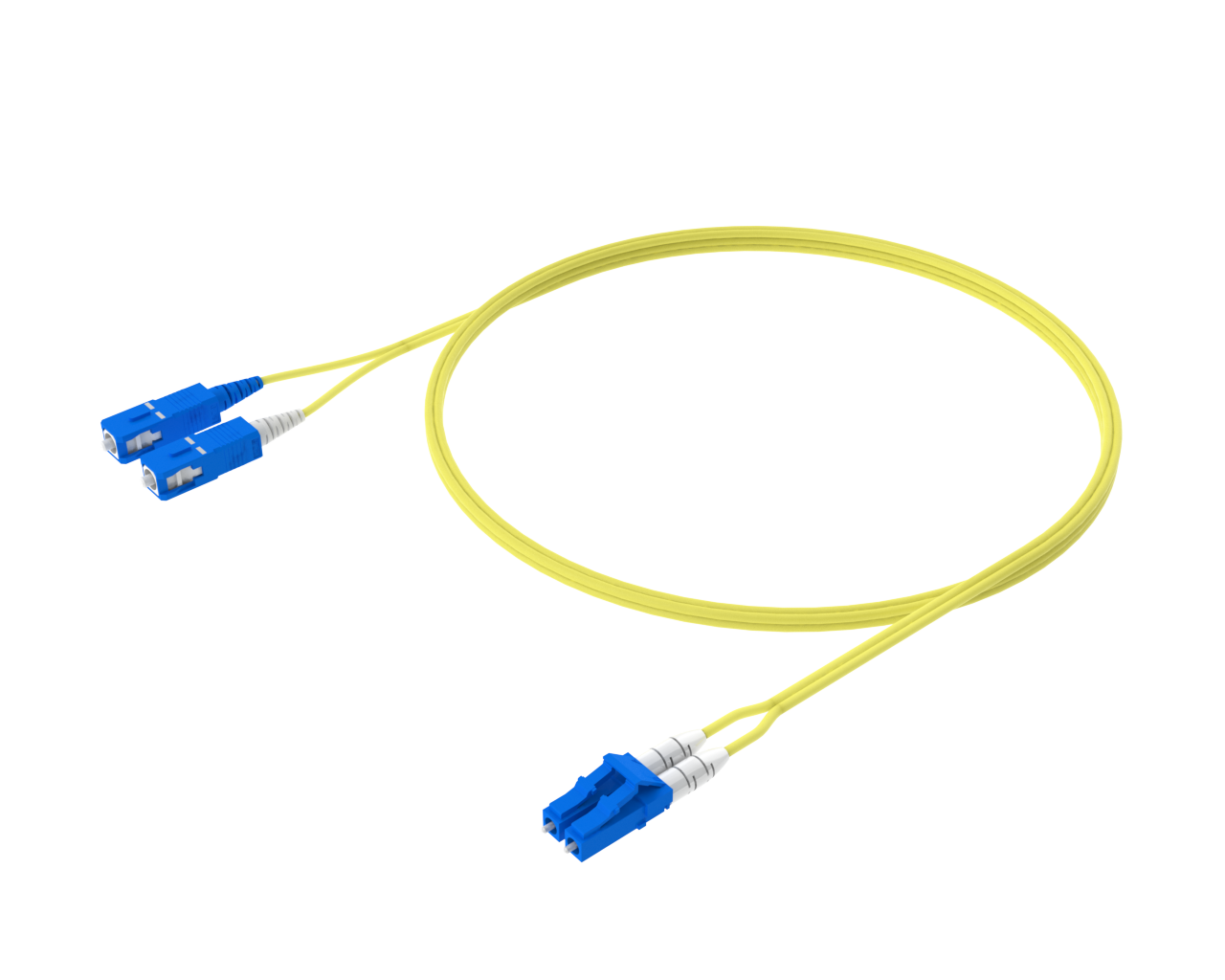

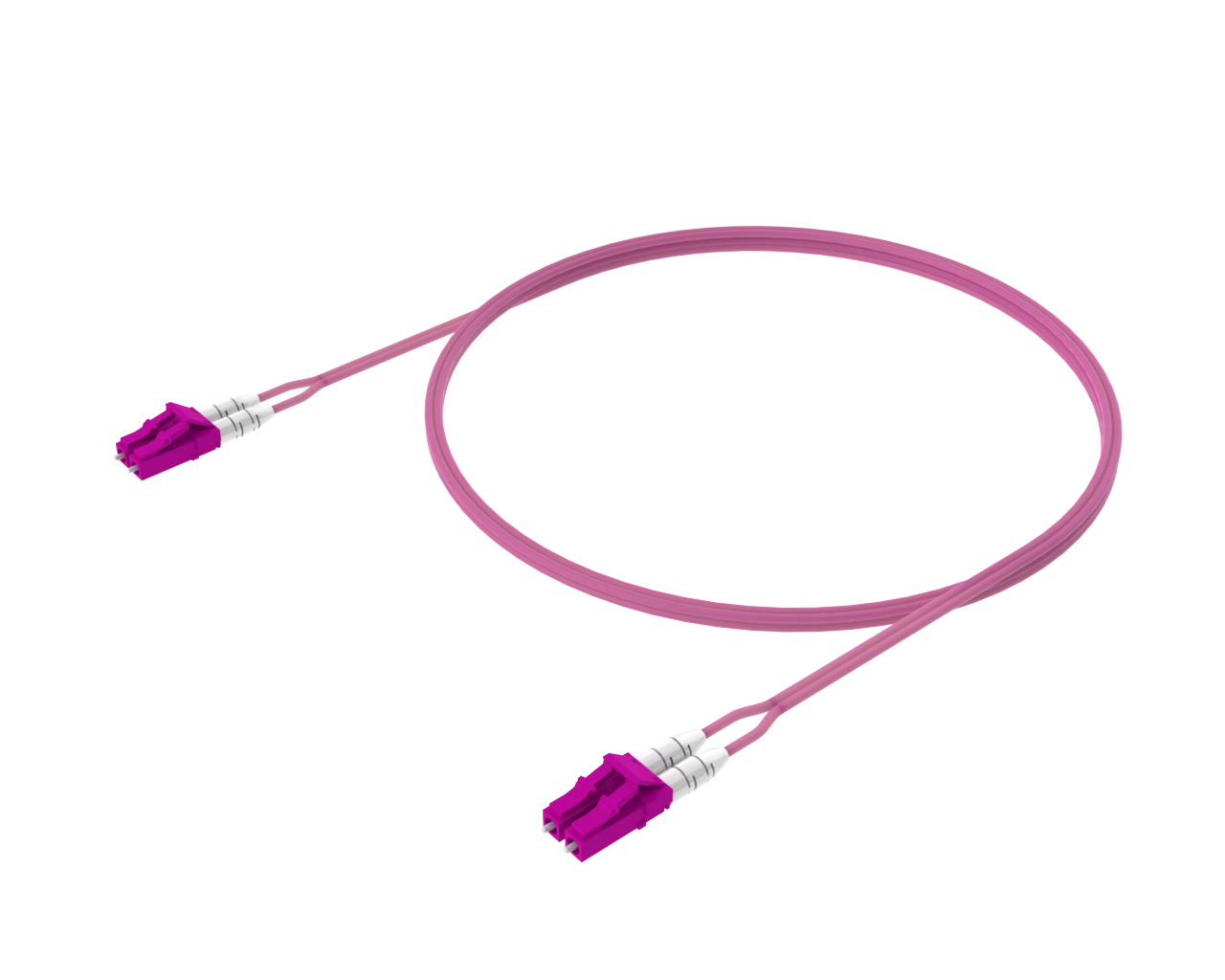

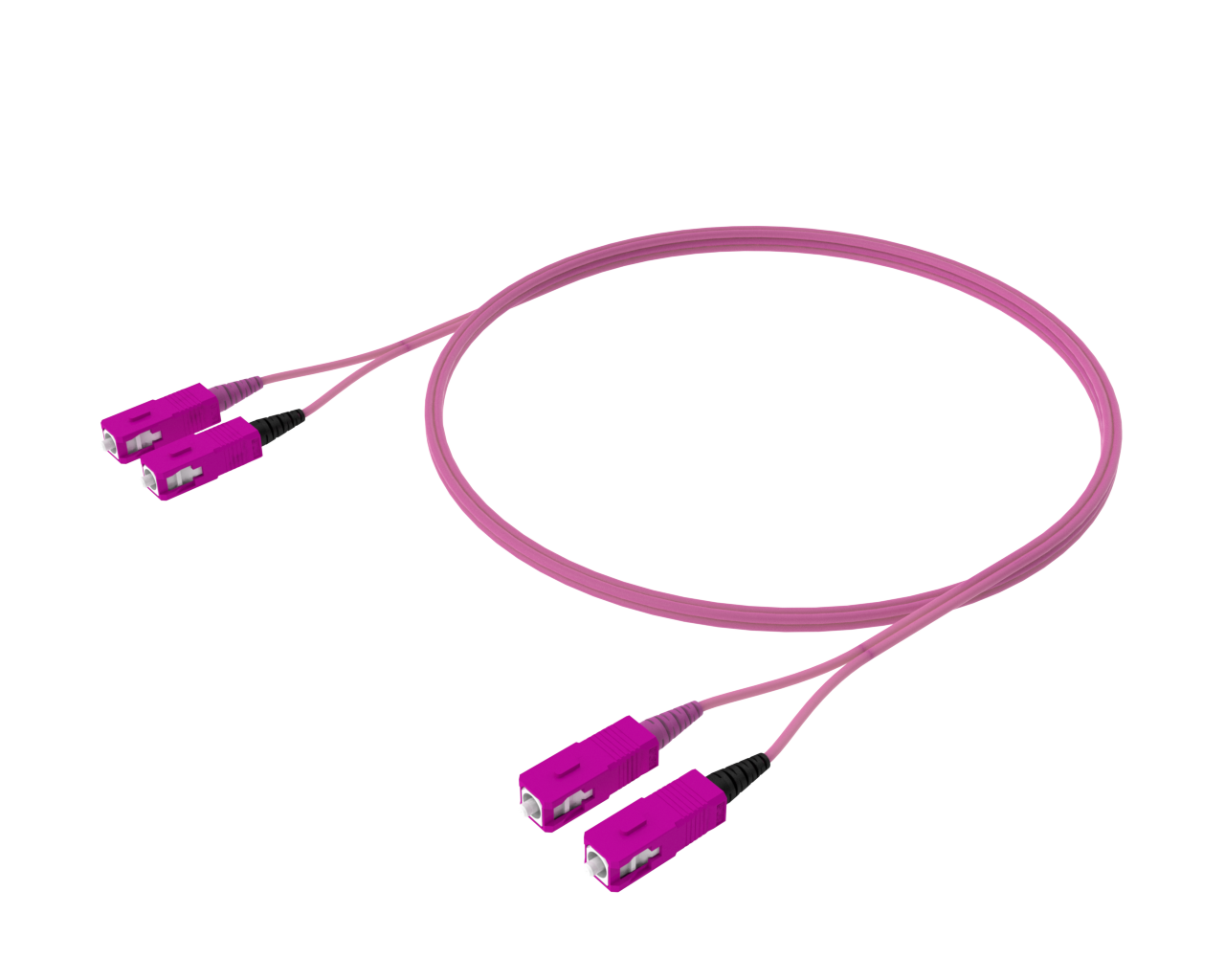

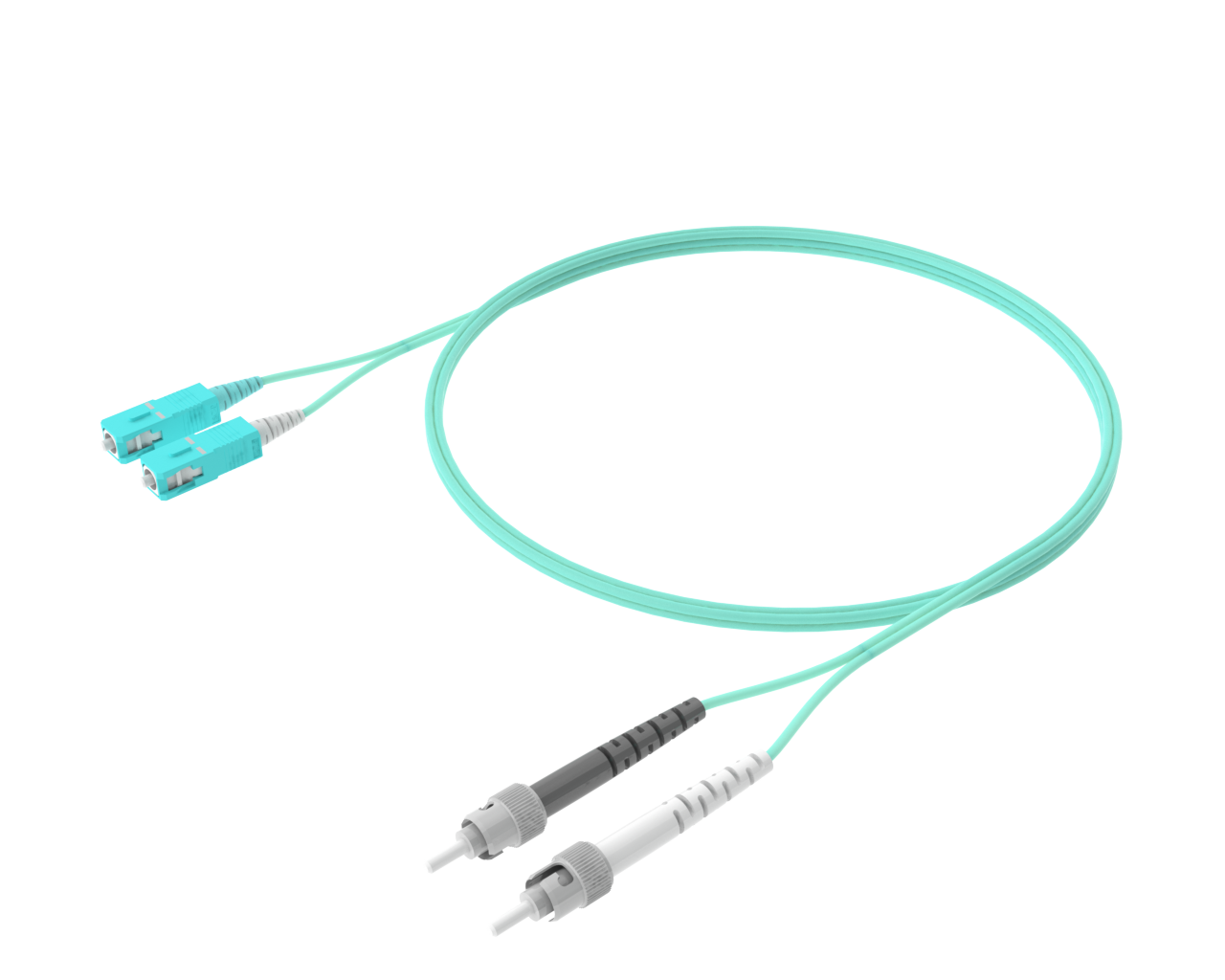

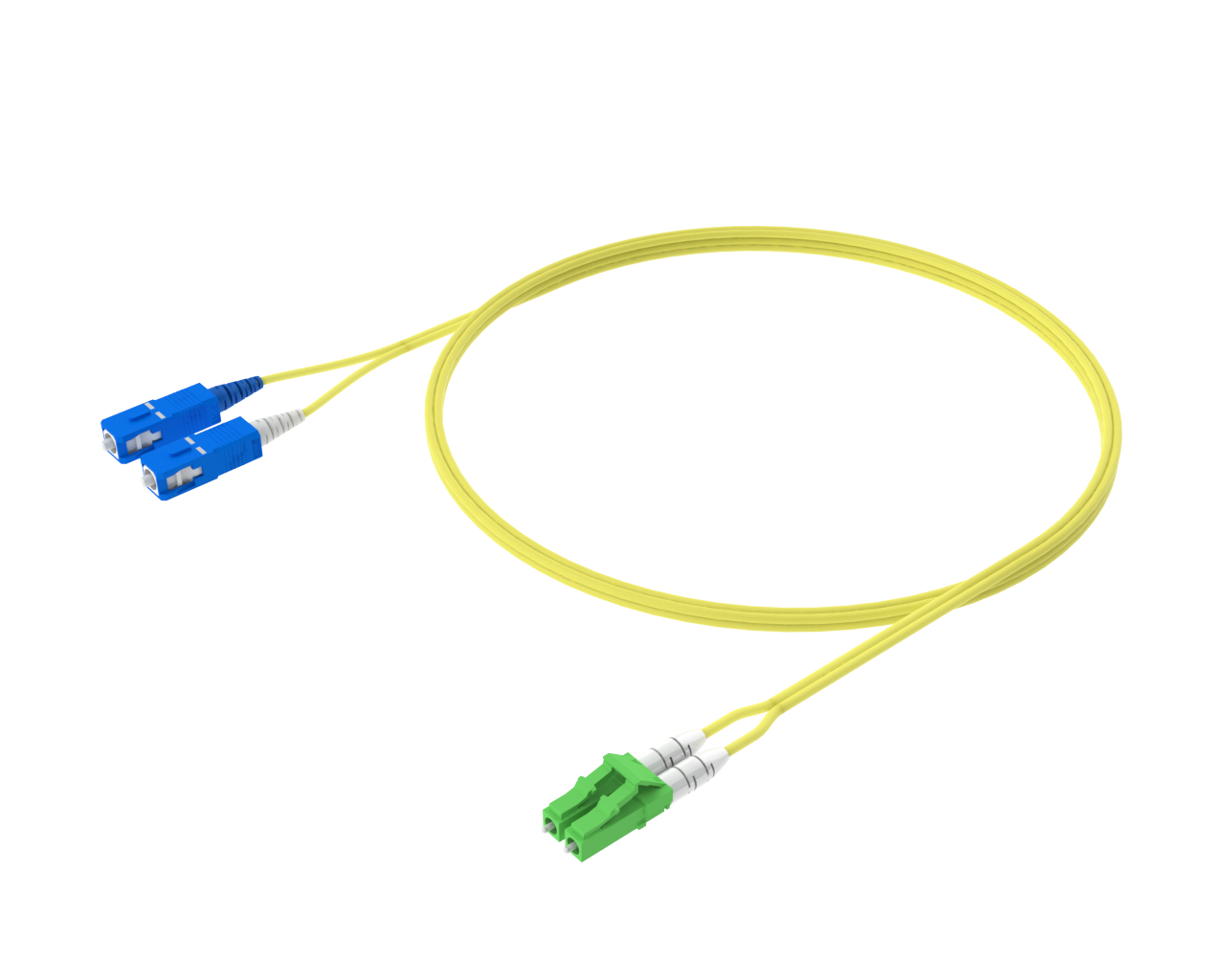

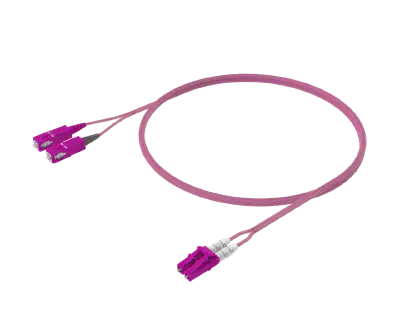

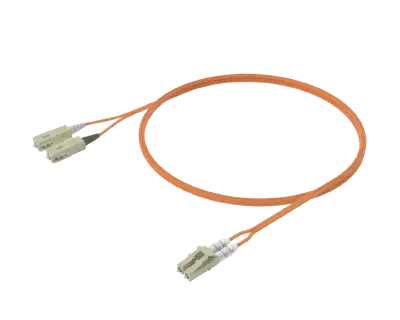

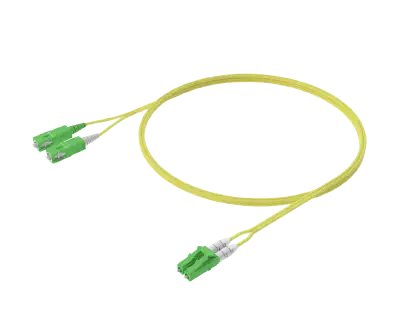

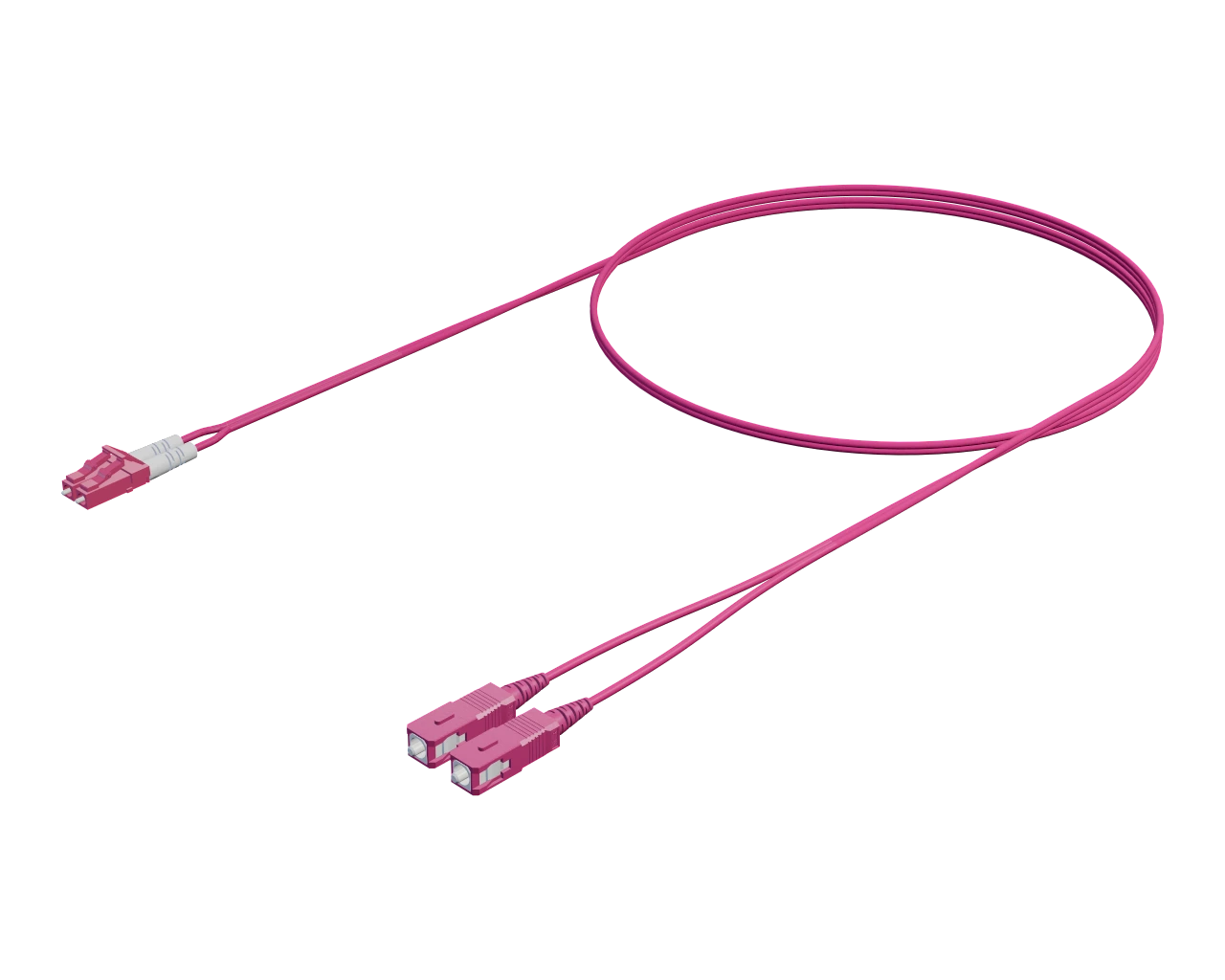

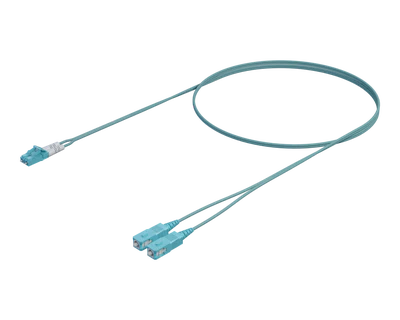

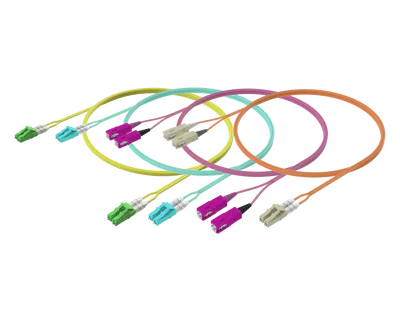

Figure-8 duplex patch cords with 2mm round cable, available in multi-mode and
single-mode optical fibre types, supporting everything from legacy networks to
modern 800G infrastructure.

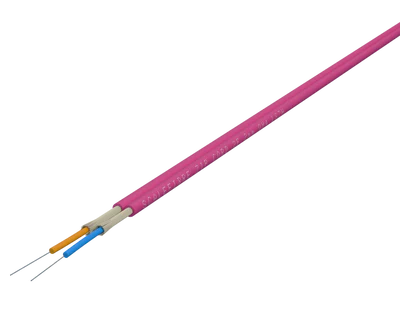

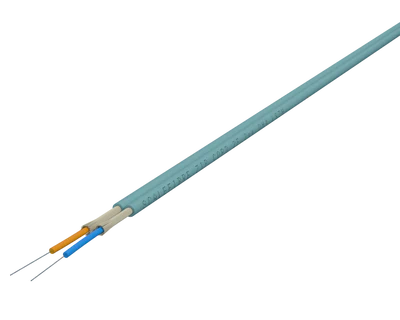

2mm figure-8 duplex construction jacket
Short‑boot for high‑density spaces
Support for various fibre types

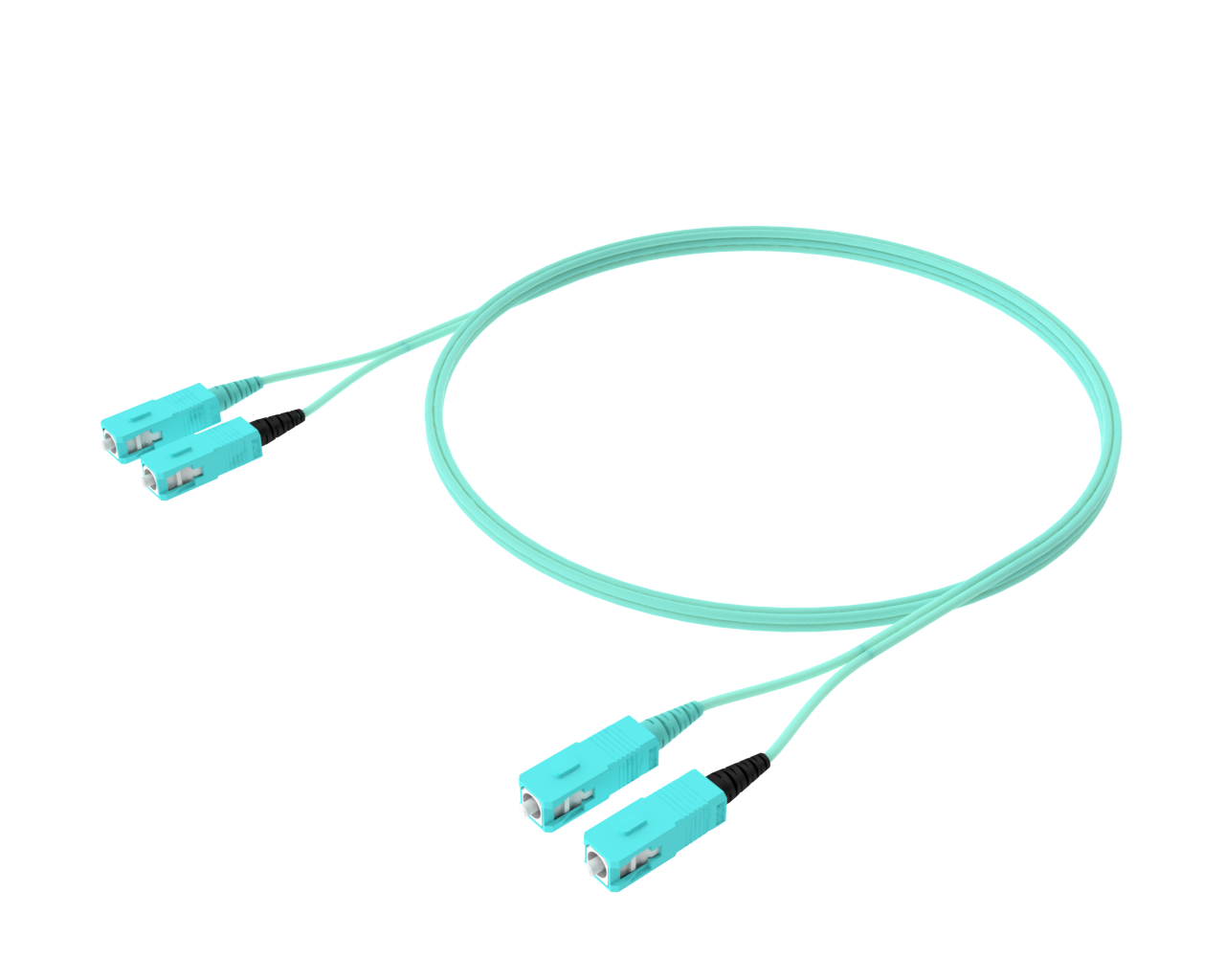

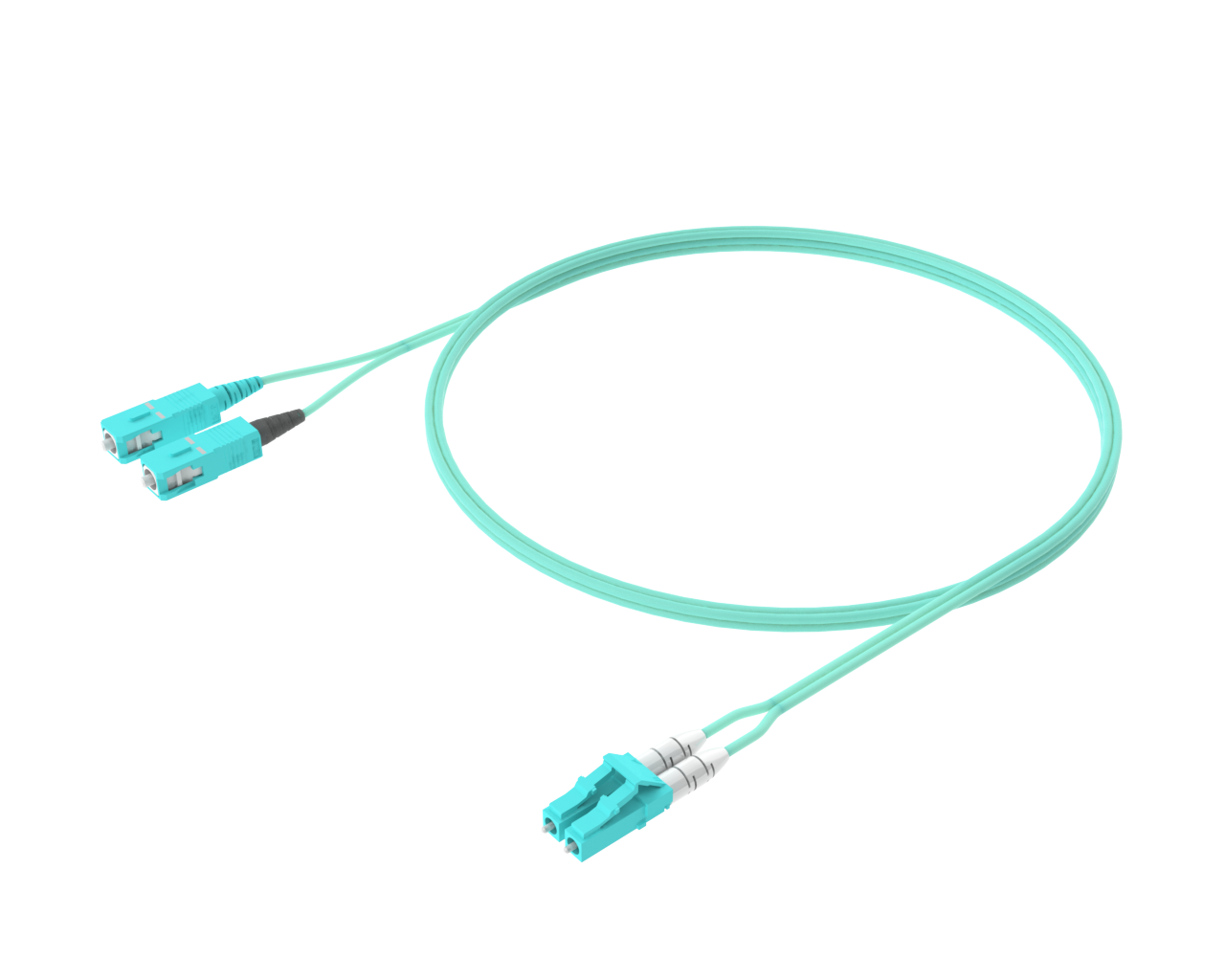

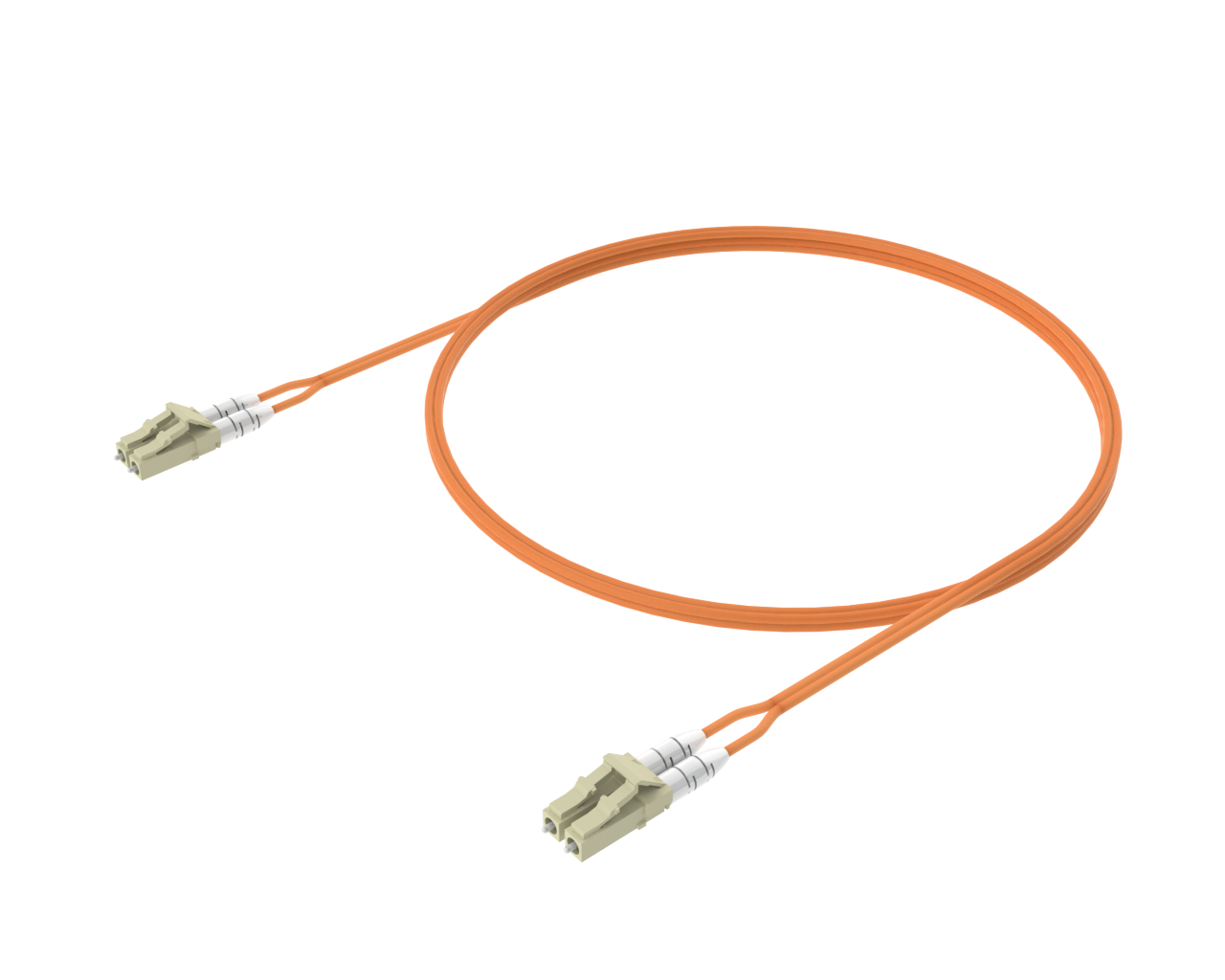

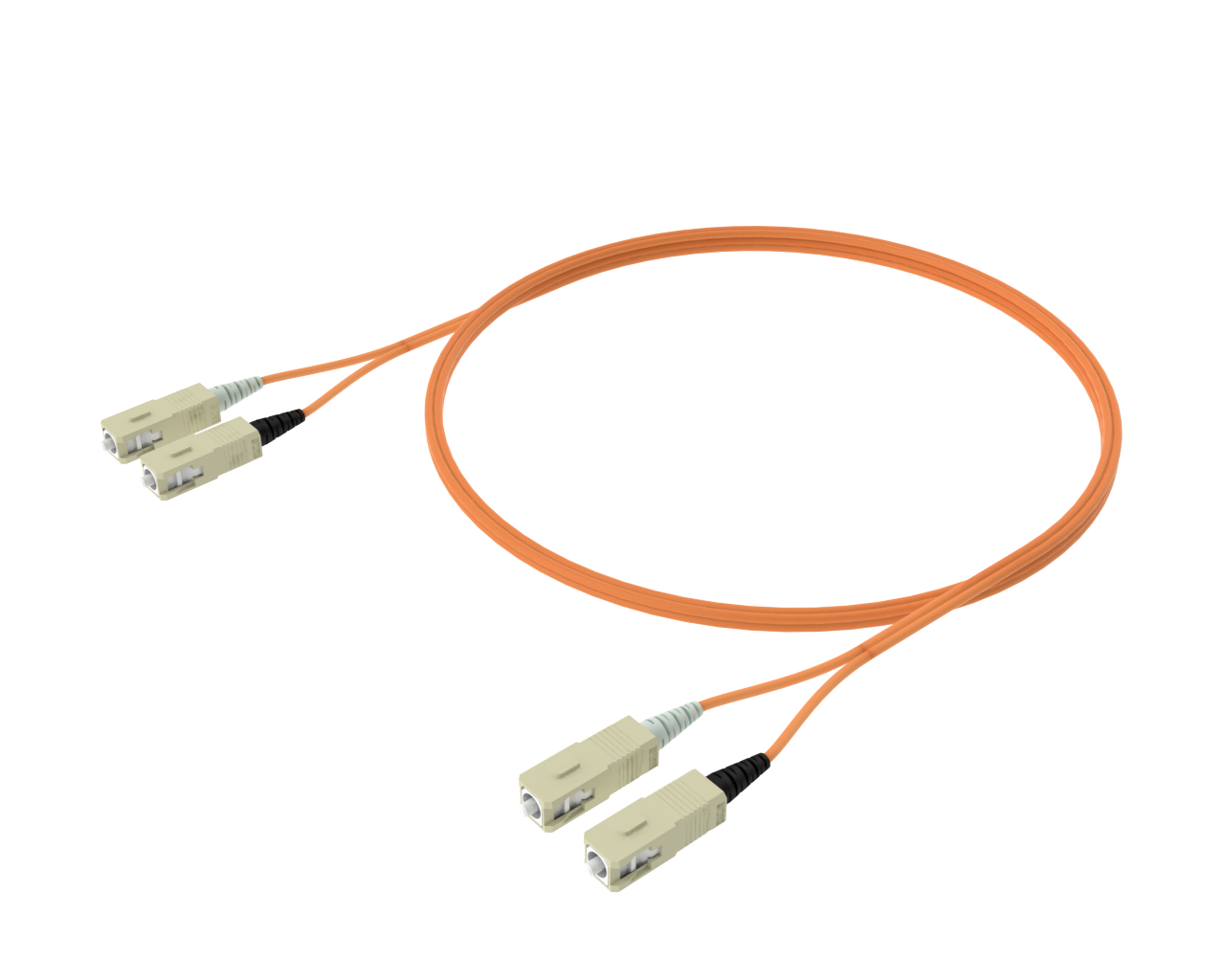

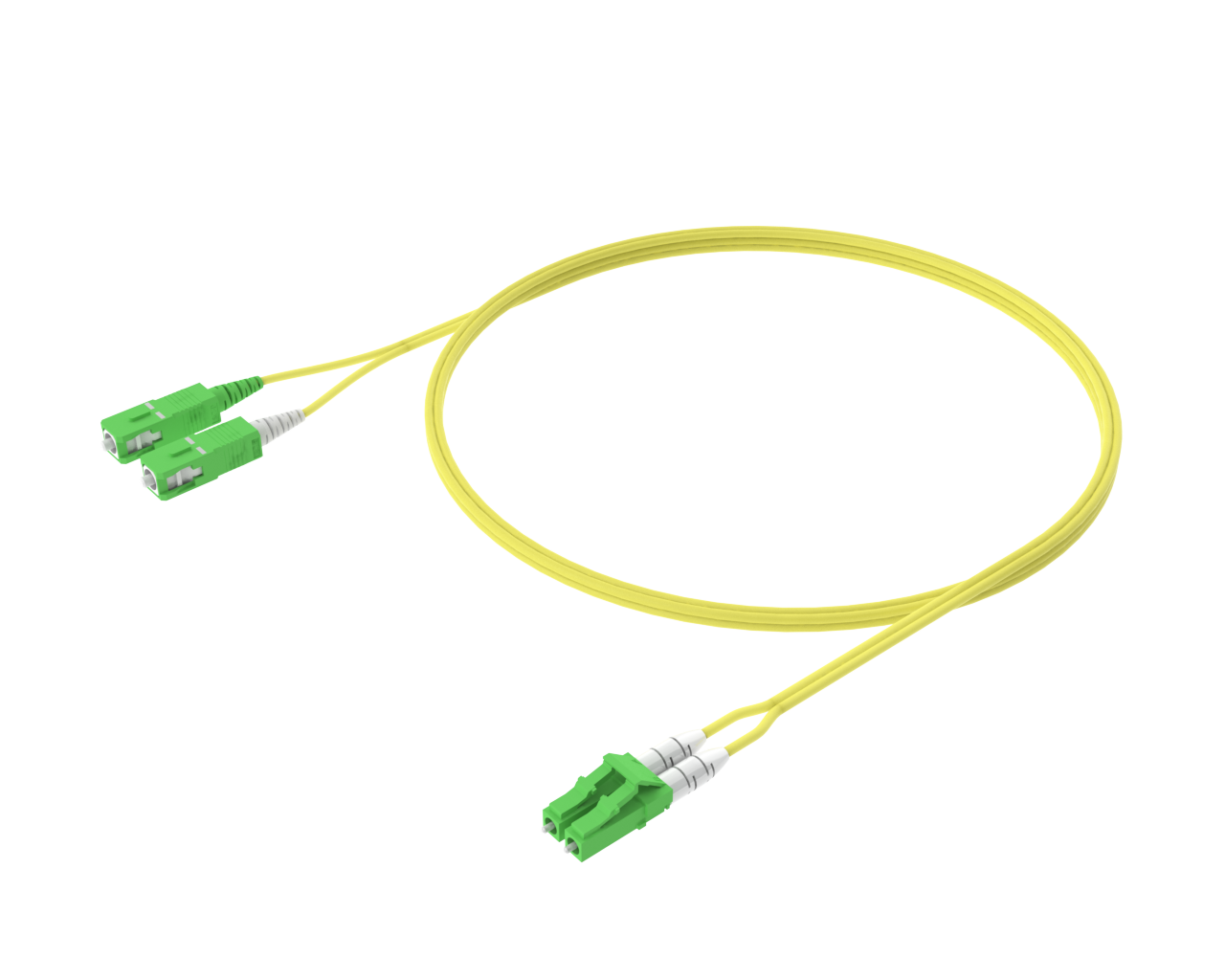

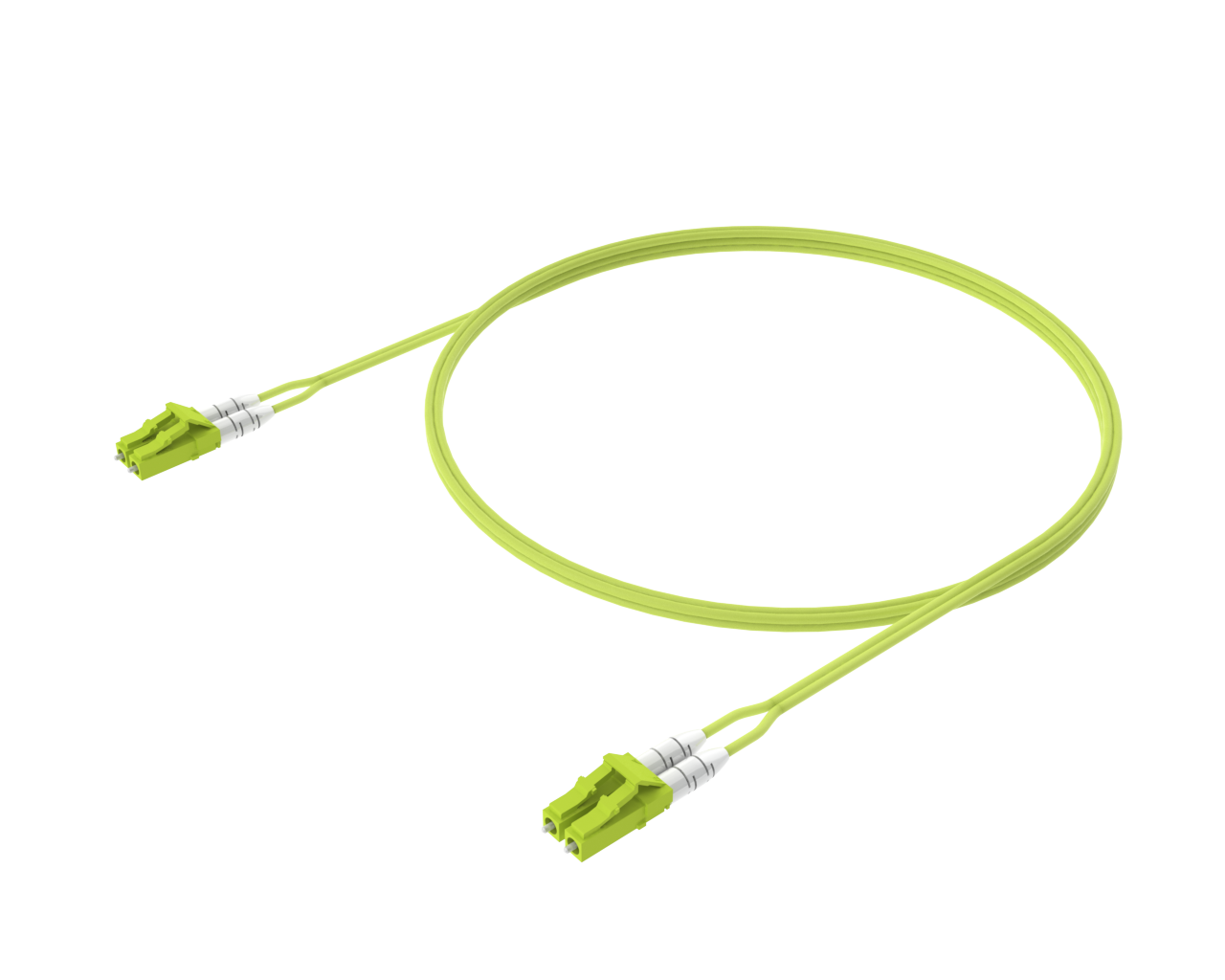

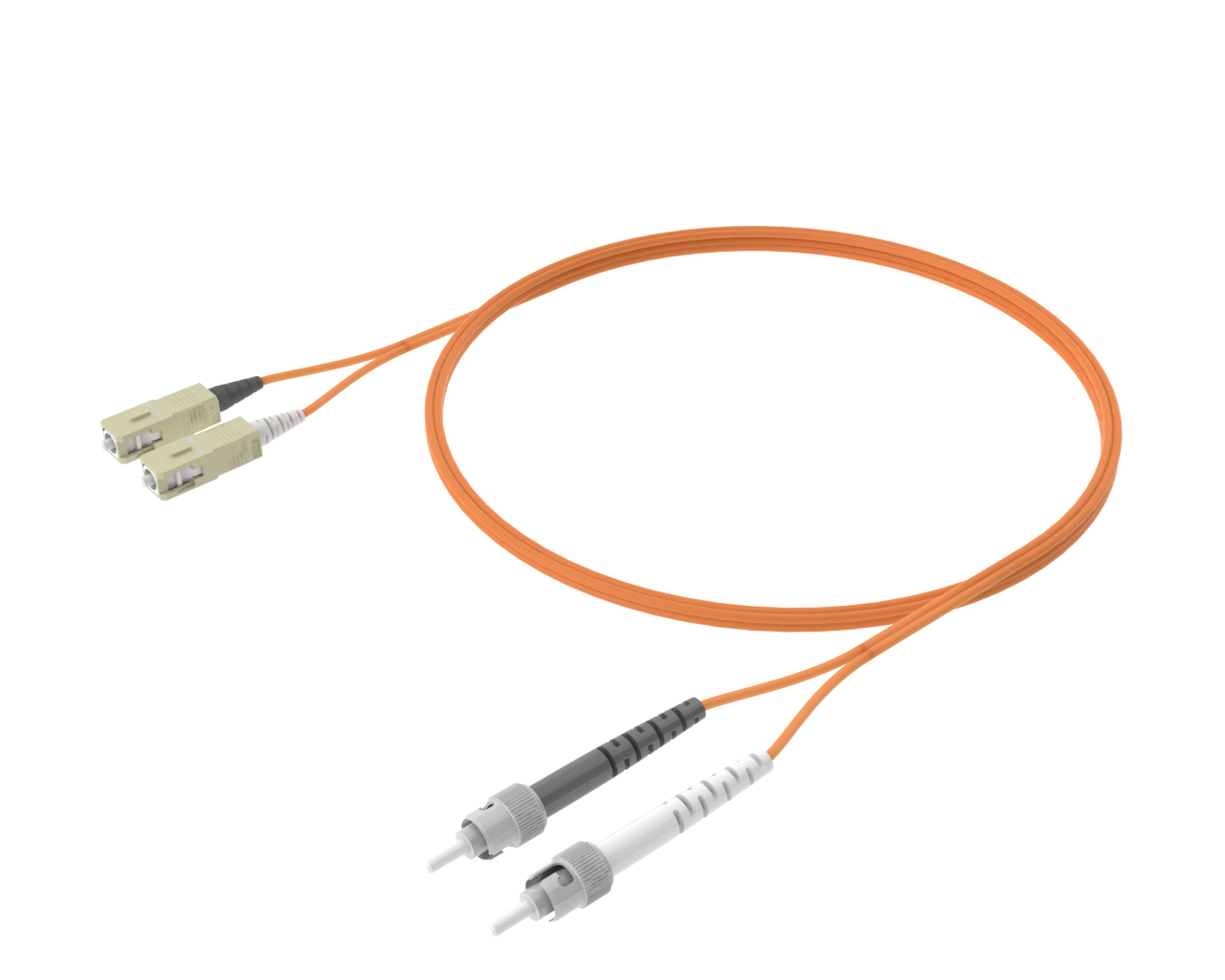

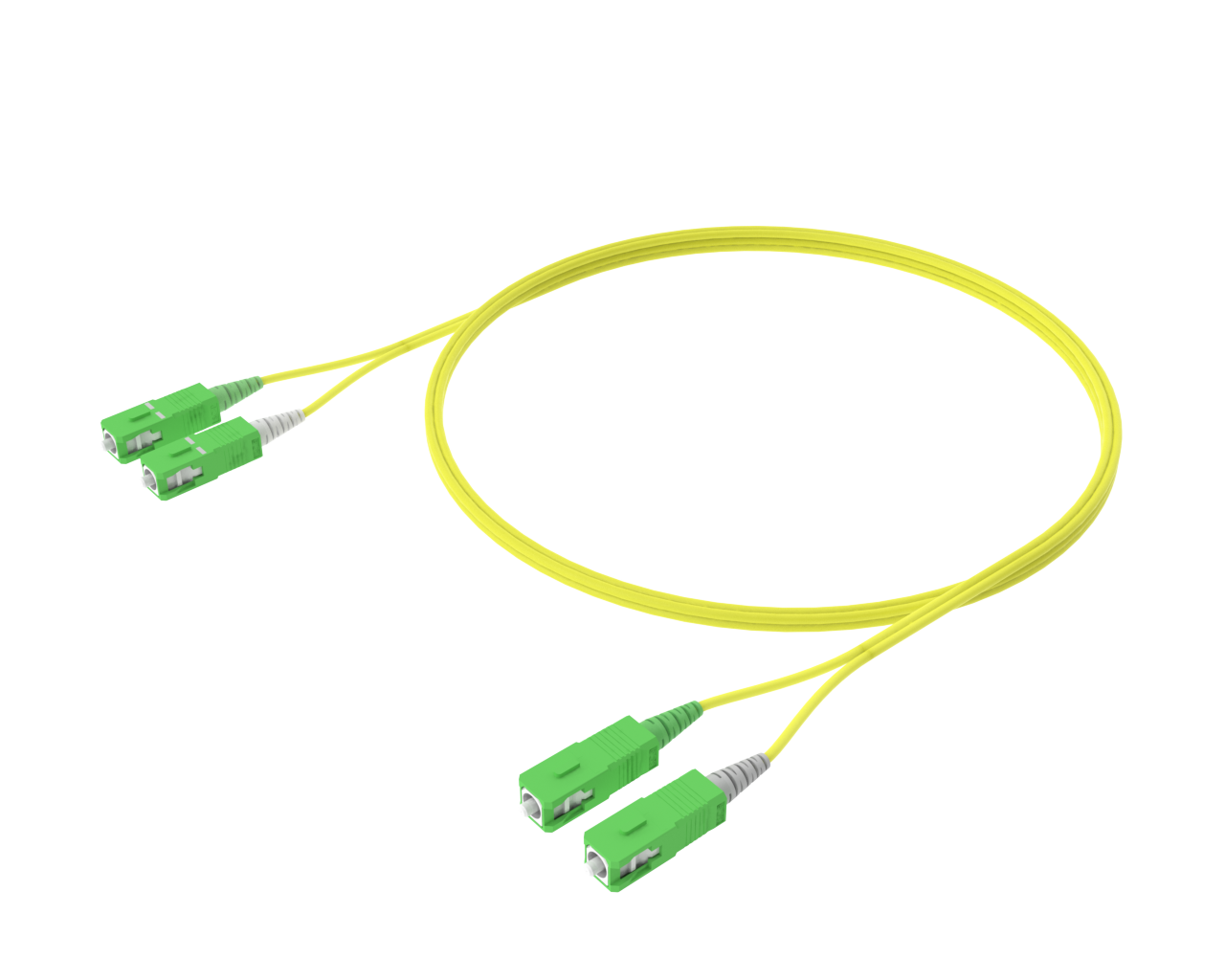

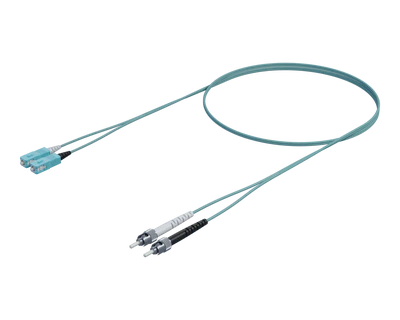

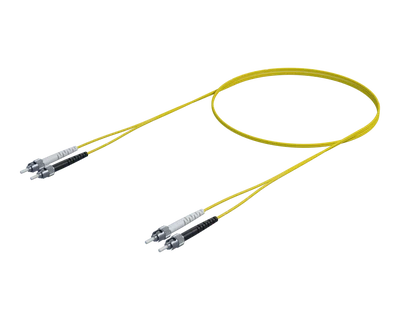

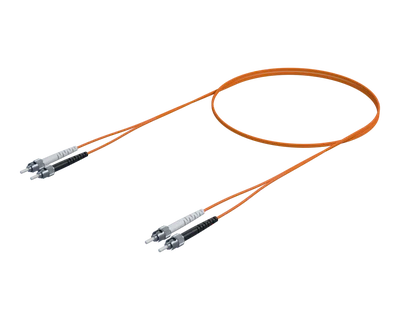

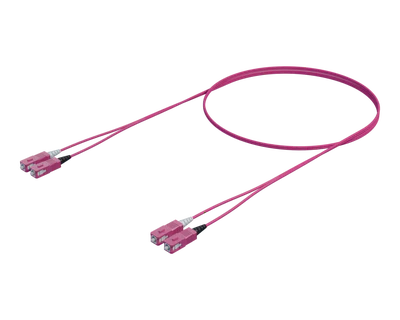

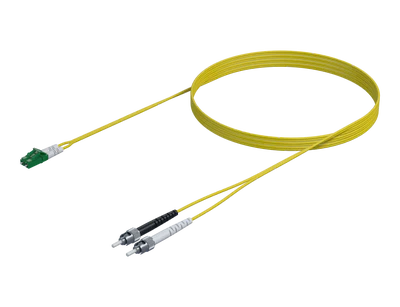

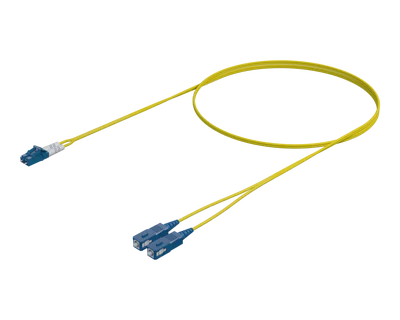

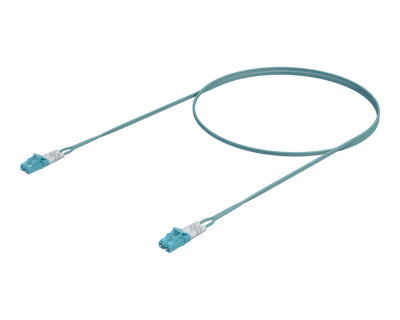

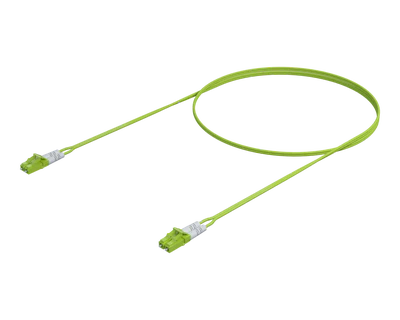

Available with LC, SC, FC, and ST connectors
Low insertion loss and high return loss performance
Colour-coded LSZH jackets for clear fibre type identification

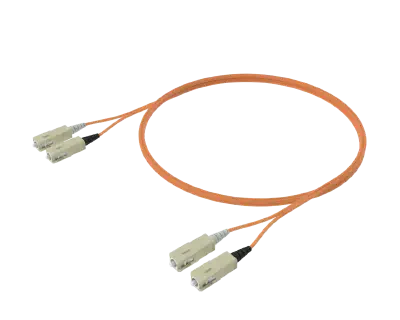

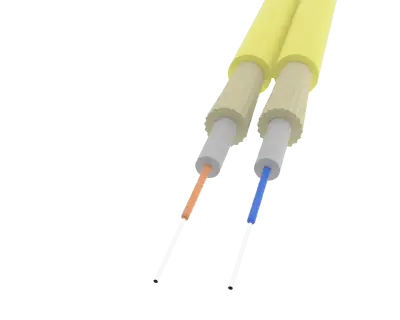

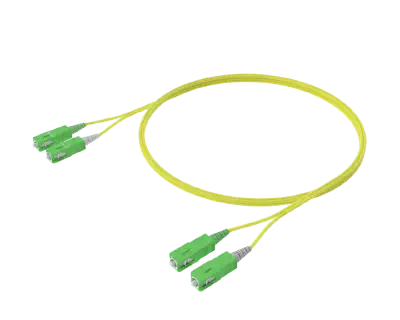

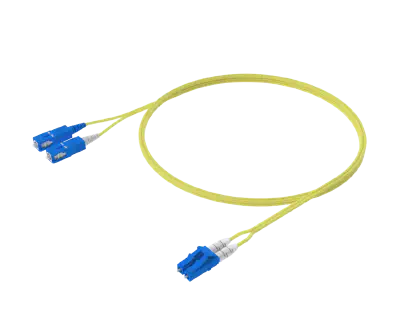

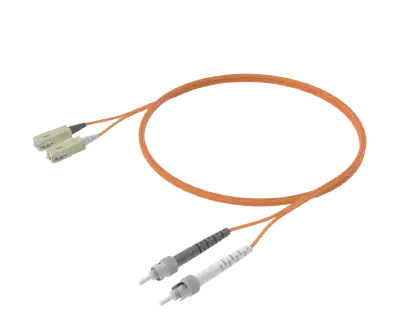

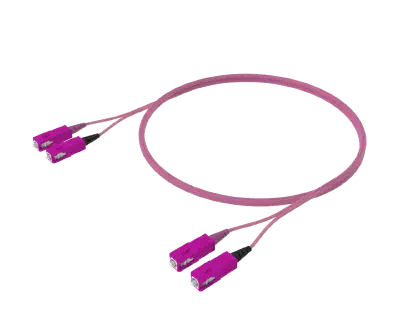

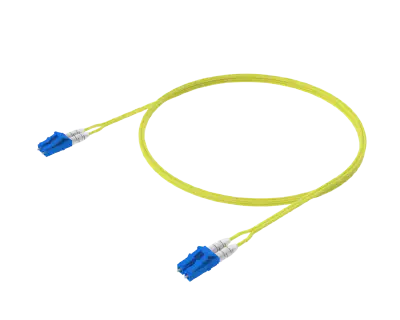

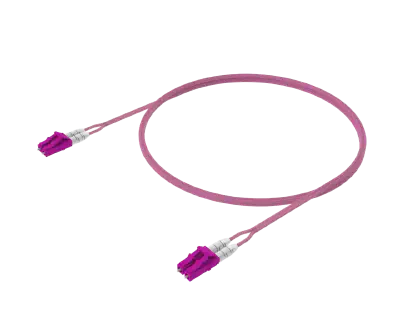

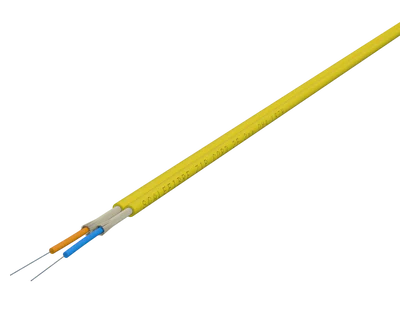

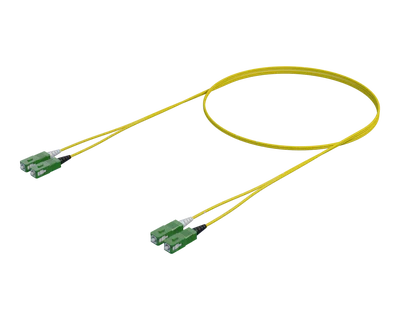

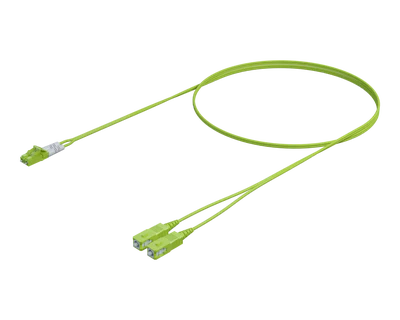

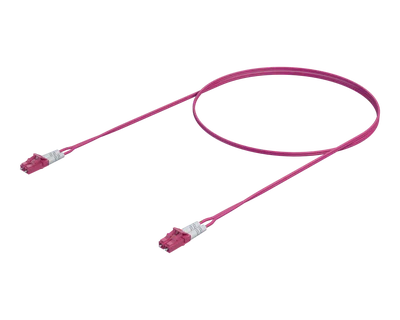

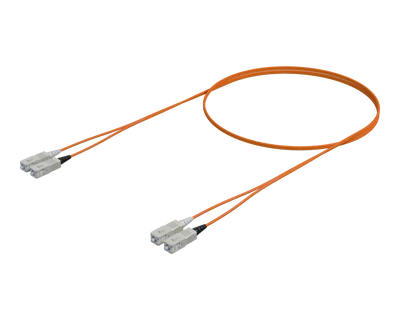

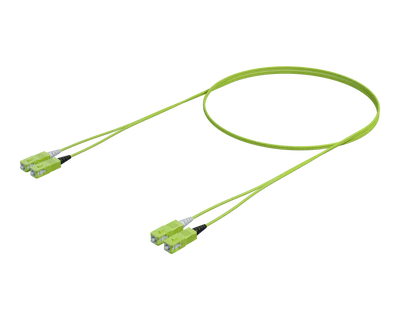

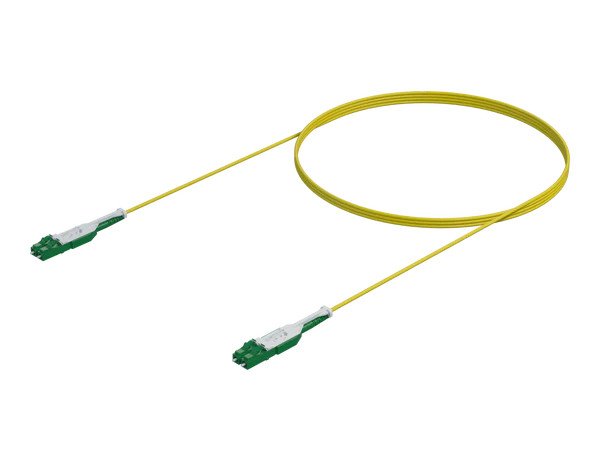

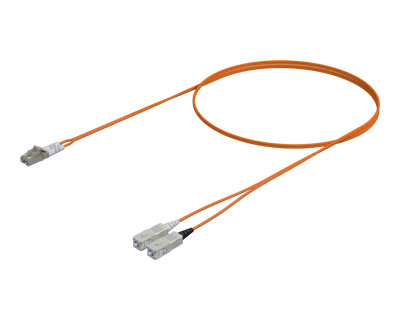

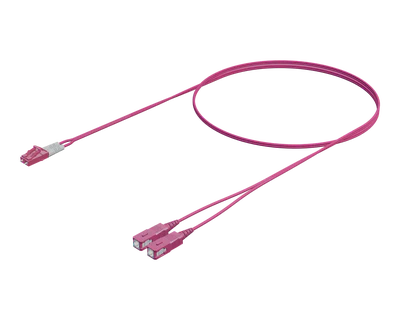

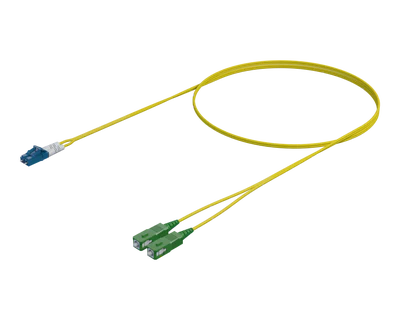

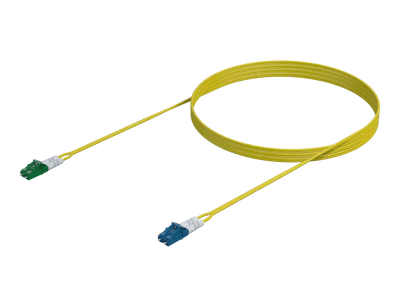

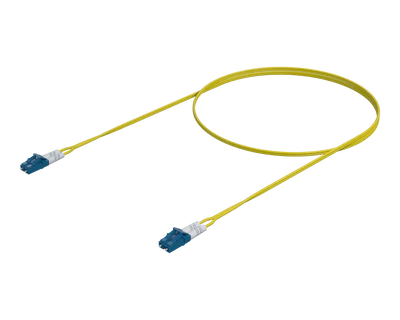

These 2mm figure-8 duplex patch leads feature two optical fibres in a
joined-round LSZH jacket, providing durability and flexibility in a compact

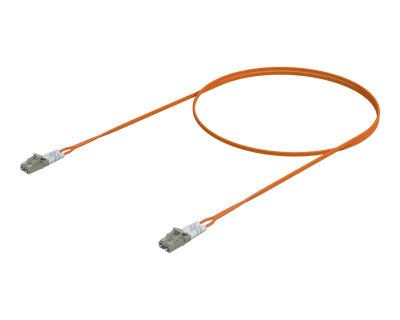

form factor. Engineered for performance across multimode (OM1, OM4, OM5) and
single-mode (OS2) fibre types, they suit a wide range of applications from
legacy networks to modern hyperscale environments.
Each assembly is

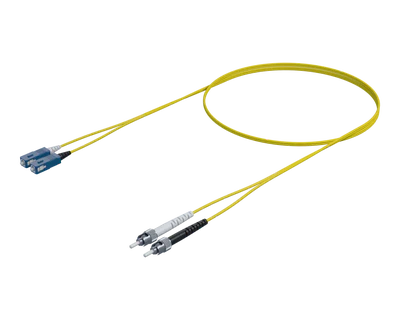

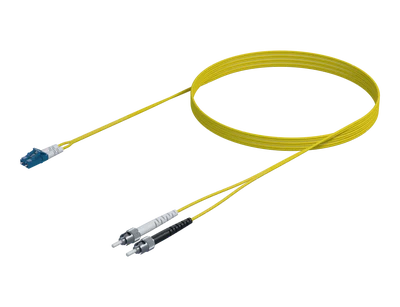

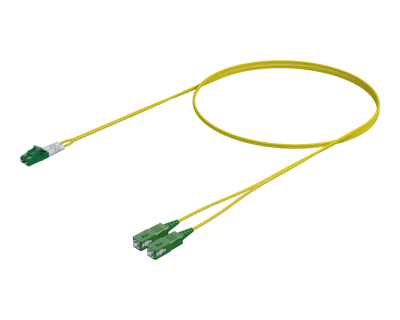

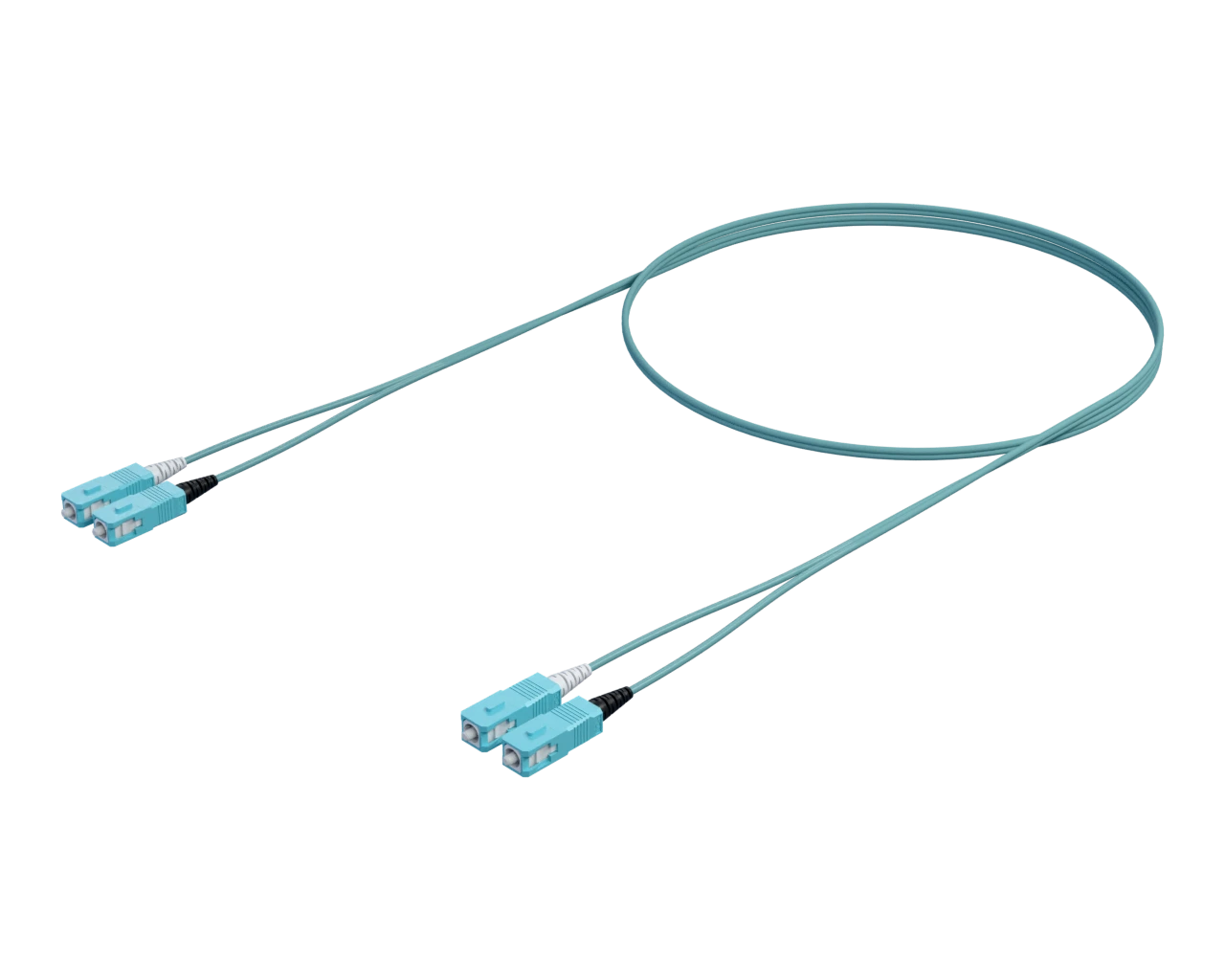

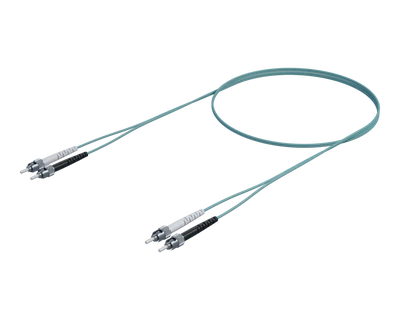

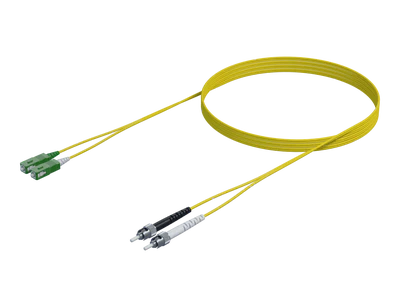

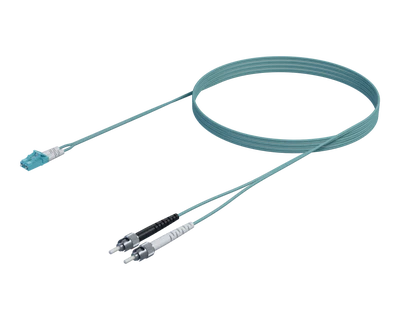

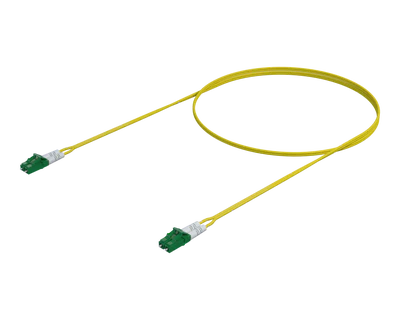

terminated with factory-polished connectors (LC, SC, FC, ST) and tested for
insertion loss and return loss to meet or exceed industry standards.
Compact, industry-leading short boot on LC and SC connectors for controlled
bend radius in tight spaces. Ideal for patching between panels and equipment
in enterprise, carrier, and hyperscale data centre environments.
Technical Specifications
Fibre Type
Single-mode (OS2), Multimode (OM1, OM4, OM5)
Configuration
Duplex – 2 fibres in 2mm figure-8 LSZH jacket
Connector Types
LC, SC, FC, ST (others on request)
Polish Options
UPC or APC (SM); UPC standard (MM)
Insertion Loss
≤0.12dB Mean, ≤ 0.25dB for 97% (IEC 61755-1 Grade B)
