- DAA Digitalized Active Alignment System
- Active Cladding Alignment for consistent field splicing
- 6 second splice time with 10 second heating
- 350 cycles per charge (splicing + heating)
- 1.8 kg including battery
- Dustproof, waterproof and anti-shock design
- Dual CCD camera with LED injection
- 4.3″ touch screen with tempered glass interface
- Stores 10,000 splice records and 2,000 images
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

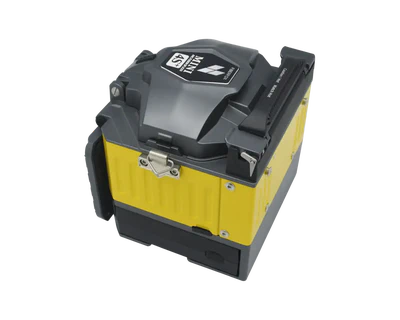

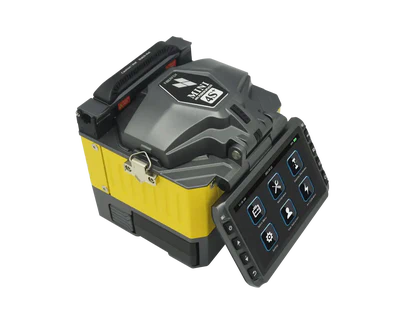

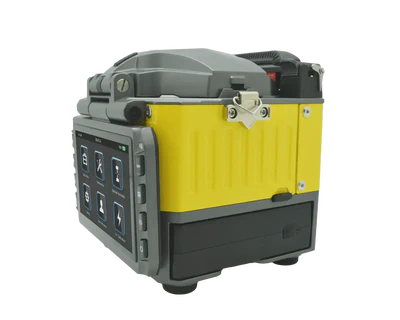

The FiberFox Mini 4S+ is a compact, field-ready active alignment fusion splicer designed for reliable single-fibre termination. Using DAA (Digitalized Active Alignment) technology, it delivers more precise positioning than competing core-alignment splicers, with typical losses around 0.02 dB.

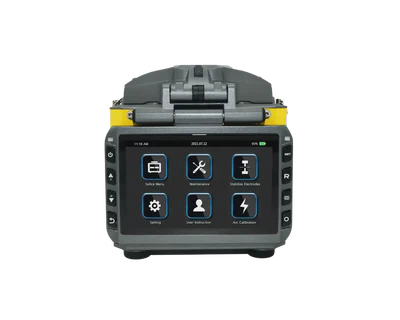

Weighing 1.4 kg (with battery 1.8 kg), the Mini 4S+ offers a balance of performance and durability. It achieves splice times as fast as 6 seconds and heating cycles of about 10 seconds, with up to 350 splicing + heating cycles per charge. The system includes a 4.3″ touch screen interface and dual CCD camera for fibre observation and alignment.
Designed for demanding environments, it is dustproof, waterproof, and anti-shock. The Mini 4S+ supports a broad fibre range including single mode (G.652 & G.657), multi mode (G.651), dispersion shifted (G.653), and non-zero dispersion shifted (G.655), ensuring compatibility across modern network applications.
| Technical Specifications | |
| Splicing Method | Active Alignment (DAA Digitalized Active Alignment System) |
| Typical Loss | SM 0.02 dB / MM 0.02 dB / DS 0.05 dB / NZDS 0.05 dB |
| Return Loss | > 60 dB |
| Splice Time | Quick Mode 6 seconds / SM Mode 8 seconds |
| Heating Time | Average 10 seconds |
| Heating Modes | 36 modes (pre-set 4 / user set-up 32) |
| Applicable Sleeve | 20 – 60 mm |
| Fibre Types | SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655) |
| Cladding Diameter | 80 – 150 µm |
| Coating Diameter | 100 – 3000 µm |
| Cleaved Length | < 250 µm coating 5–16 mm / > 250 µm coating 8–16 mm |
| Electrode Life | > 5,500 arcs |
| Display | 4.3″ colour LCD with tempered glass touch interface |
| Magnification | X and Y dual image 320× / X or Y single image 320× |
| Data Storage | Splice records 10,000 / Images 2,000 |
| Battery | Li-ion 11.1 V 5000 mAh, 350 splicing + heating cycles |
| Power Supply | AC 100–240 V input or DC 12 V 1.8 A external input |
| Connectivity | USB |
| Dimensions (W×D×H) | 124 × 123.2 × 138 mm |
| Weight | 1.4 kg (without battery) / 1.8 kg (with battery) |
| Environmental Performance | |
| Operating Temperature | –10 °C to +50 °C |
| Relative Humidity | 0 – 95 % |
| Operating Altitude | 0 – 5000 m |
| Wind Resistance | 15 m/s (max) |
| Storage Temperature | –40 °C to +80 °C / 0–95 % RH |
| Included Accessories | |

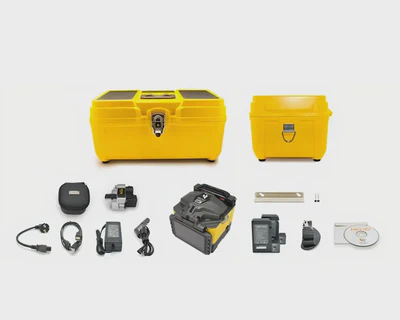

| Standard Package | Mini 4S+ Splicer, Mini 50GB+ Cleaver, Cleaver soft case, Power cord, Car cigar cable, AC adapter, SOC heater block, SOC holder, Cooling tray, Spare electrodes, Battery pack, USB cable, User manual CD, Shoulder strap, and Hard carrying case |
| FiberFox Mini 4S+ Variants | |
| FOX-4S+-KIT | FiberFox Mini 4S+ Standard Package (Splicer + Cleaver + Accessories) |
