- 4-second heating time
- Rechargeable battery with up to 500 cycles per charge
- Supports single fibre and ribbon up to 12 cores
- Four temperature levels from 75 °C to 120 °C
- Compatible with FH-series fibre holders
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

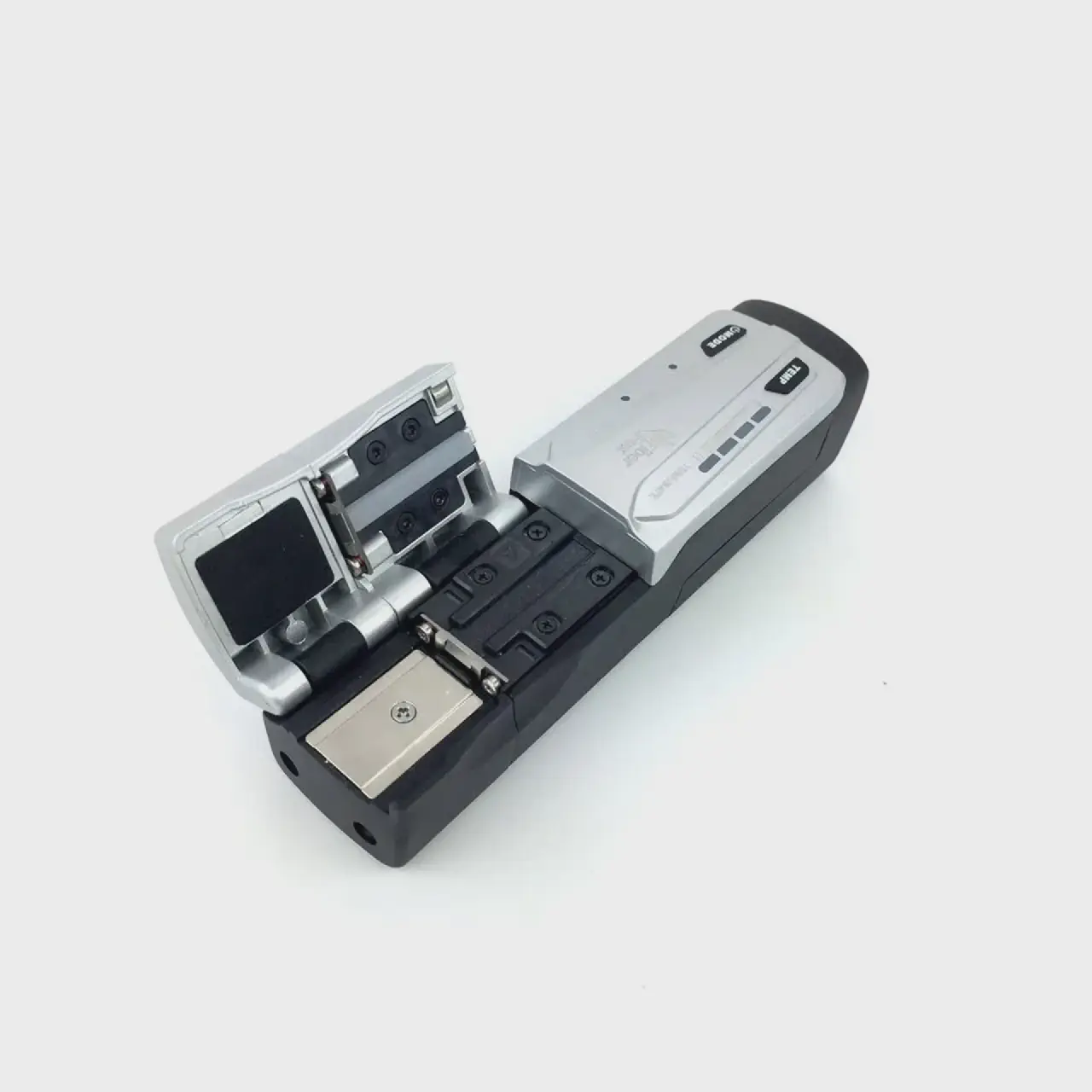

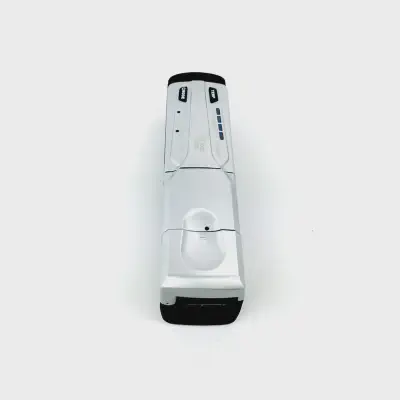

The FiberFox HS-12 is a compact thermal stripper engineered for clean, controlled jacket removal on both single fibre and ribbon formats up to 12 cores. Its heated blade system delivers consistent stripping performance across a wide coating range, supporting single-core fibre from 0.25 to 0.4 mm and ribbon fibre with typical thickness from 0.25 to 0.4 mm.
The tool reaches operating temperature in 4 seconds and achieves approximately 500 stripping cycles per full charge. Its chassis provides a stable grip for field work while remaining lightweight for continuous operation.
It is suitable for splicing, ribbon preparation, and high-volume optical termination workflows, with multiple fibre-holder interfaces compatible with the FiberFox ecosystem.
| Technical Specifications | |
| Fibre Types and Coating Thickness | Single-core fibre coating 0.25–0.4 mm / Ribbon fibre with 2–12 cores, thickness 0.25–0.4 mm |
| Fibre Diameter | 125 µm |
| Stripped Coating Length | Max 30 mm |
| Temperature Setup | 4 levels, 75 °C to 120 °C |
| Fibre Holder Compatability | FH-2, FH-4, FH-6, FH-8, FH-10, FH-12, FH-250, FH-900 |
| Power Supply | Battery drive or AC 100–240 V (50/60 Hz) / 12 V DC supply from splicer |
| Dimensions (W×D×H) | 137 × 30 × 37 mm |
| Weight | 280 g |
| FiberFox HS-12 Variants | |
| FOX-HS12 | FiberFox HS-12 Thermal Stripper |
