- Splices up to 12 fibres simultaneously
- Mass Fusion Ribbon Alignment
- 15 second splice time with 20 second heating
- 150 cycles per charge per battery (Two batteries included)
- 1.32 kg without battery
- Dustproof, waterproof and anti-shock
- 4.3″ touch screen with tempered glass interface
- Dual CCD camera with core magnification system
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

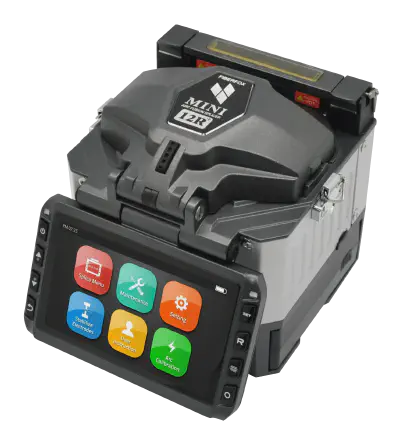

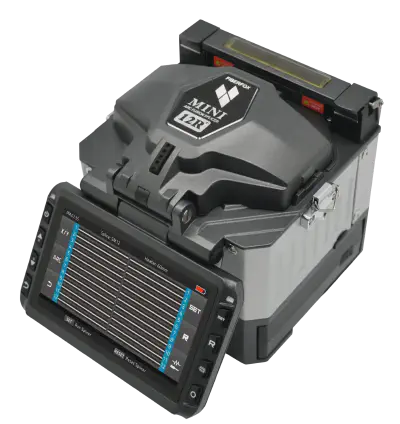

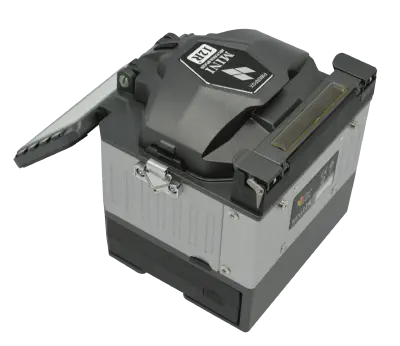

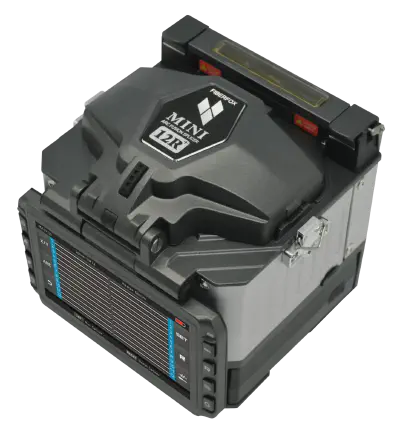

The FiberFox Mini 12R+ is the world’s smallest ribbon fusion splicer, engineered for rapid, precise splicing of ribbon or single fibres in compact field environments. Supporting up to 12 fibre ribbons, it combines lightweight design with high-speed operation and stable optical performance.
Using digital core alignment and precision fibre positioning, the Mini 12R+ achieves typical losses as low as 0.05 dB and splice times of 15 seconds. It weighs only 1.32 kg (without battery) while retaining full ruggedisation against dust, water and impact. Two Li-ion battery packs are supplied, delivering up to 300 cycles per charge.
The system includes a 4.3″ colour touch display, dual CCD core-view cameras, and full MPO SOC compatibility. Built to IEC standards, the Mini 12R+ performs reliably from –15 °C to +60 °C and up to 5000 m elevation, making it ideal for FTTx, data centre, and ribbon backbone use.
| Technical Specifications | |
| Splicing Method | Digital Core Alignment System for Ribbon and Single Fibres |
| Applicable Fibres | SM (G.652/657), MM (G.651), DS (G.653), NZDS (G.655) |
| Fibre Count | 12, 8, 6, 4 or 2 fibre ribbons |
| Cladding Diameter | 125 µm / 160 µm to 3mm Single Fibre 125 µm / Ribbon Fibre Thickness 0.25 to 0.4mm |
| Sheath Diameter | 0.25 to 0.4 mm (ribbon fibre thickness) |
| Cleave Length | 10 – 13 mm |
| Typical Splice Loss | 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS), 0.05 dB (NZDS) |
| Splice Time | 15 seconds |
| Heating Time | 20 seconds |
| Electrode Life | > 3000 splices |
| Heating Sleeve | 40mm or 60 mm |
| Display | 4.3″ colour LCD touch screen with tempered glass |
| Magnification | 33× and 60× magnification |
| Fibre Detection | 2 CCD camera system |
| Power Supply | AC 100–240 V or DC 11.1 V 5200 mAh Li-ion battery |
| Battery Capacity | 150 cycles per battery (two batteries includes) |
| Connectivity | USB |
| Dimensions (W×D×H) | 124 × 123.2 × 138 mm |
| Weight | 1.32 kg without battery |
| Environmental Performance | |
| Operating Temperature | –10 °C to +50 °C |
| Relative Humidity | 0 – 95 % |
| Operating Altitude | 0 – 5000 m |
| Storage Temperature | –20 °C to +60 °C / 0–95 % RH |
| Included Accessories | |
| Standard Package | Mini 12R+ Splicer, Mini 50GB+ Cleaver, Power cord, Car cigar cable, AC adapter, Fibre holders for Twelve, eight, six, four and two fibre ribbon, Fibre holders for 250µm and 900µm single fibre, SOC heater block, SOC holder, Cooling tray, Two Li-ion battery packs, Spare electrodes, USB cable, Hot jacket stripper and adapter, User manual CD, Shoulder strap, Hard carrying case |
| FiberFox Mini 12R+ Variants | |
| FOX-12R+-KIT | FiberFox Mini 12R+ Standard Package (Splicer + Cleaver + Accessories) |
