- AOCAT Automatic Optical Core Analysis & Tracking
- True Core Alignment for ultimate low-loss splicing
- 4 second splice time with 10 second heating
- 350 cycles per charge (splicing + heating)
- 1.9 kg including battery
- Dustproof, waterproof, and anti-shock design
- Dual CCD camera with optical zoom and LED injection
- 4.3″ touch screen with tempered glass interface
- Stores 10,000 splice records and 2,000 images
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

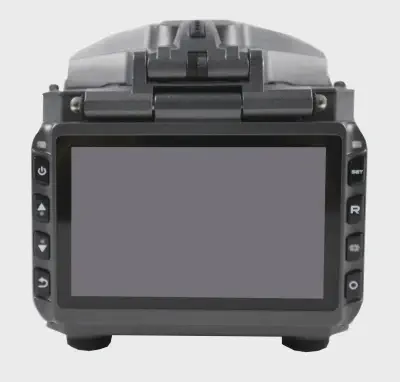

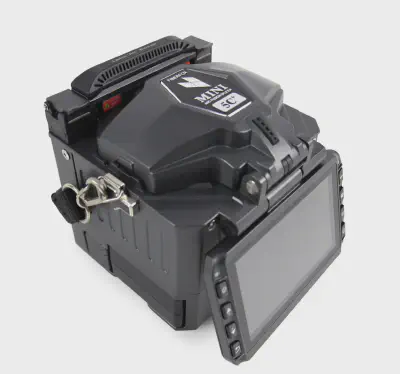

The FiberFox Mini 5C+ Premium is a compact, full-featured core alignment fusion splicer designed for precision fibre optic termination in field or laboratory environments. Using AOCAT (Automatic Optical Core Analysis & Tracking) technology, it delivers high-end core alignment with typical splice loss as low as 0.01 dB.
Weighing just 1.9 kg including the battery, the Mini 5C+ combines fast performance, rugged construction, and a fully integrated 4.3″ touch interface. The system achieves splice times as quick as 4 seconds and heating cycles of around 10 seconds, with up to 350 splices per charge. Engineered for reliability across harsh environments, it is water resistant, dust resistant and anti-shock.
It supports a wide fibre range including SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655), and CSF (G.654) with automatic core alignment, zoom-based core analysis and true six-motor alignment.
| Technical Specifications | |
| Splicing Method | High-end Core Alignment (AOCAT Automatic Optical Core Analysis & Tracking System) |
| Typical Loss | SM 0.01 dB / MM 0.04 dB / DS 0.04 dB / NZDS 0.04 dB / G.654 0.04 dB |
| Return Loss | > 60 dB |
| Splice Time | Quick Mode 4 seconds / Auto Mode 9 seconds |
| Heating Time | Average 10 seconds (Micro Sleeve ≈ 5 seconds) |
| Heating Modes | 41 modes (9 pre-set / 32 user set-up) |
| Applicable Sleeve | 20 – 60 mm |
| Fibre Types | SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655), Cut-off Shifted (G.654) |
| Cladding Diameter | 80 – 150 µm |
| Coating Diameter | 100 – 3000 µm |
| Cleaved Length | < 250 µm coating 5–16 mm / > 250 µm coating 16 mm |
| Electrode Life | > 5,500 arcs |
| Display | 4.3″ colour LCD with tempered glass touch interface |
| Magnification | X/Y dual image 320× / 400× partial magnification |
| Data Storage | Splice records 10,000 / Images 2000 |
| Battery | Li-ion 11.1 V 5000 mAh, 350 splicing + heating cycles |
| Power Supply | AC 100–240 V input or DC 12 V 1.8 A external input |
| Connectivity | USB |
| Dimensions (W×D×H) | 124 × 123 × 138 mm |
| Weight | 1.9 kg (including battery) |
| Environmental Performance | |
| Operating Temperature | –10 °C to +50 °C |
| Relative Humidity | 0 – 95 % |
| Operating Altitude | 0 – 5000 m |
| Wind Resistance | 15 m/s (max) |
| Storage Temperature | –40 °C to +80 °C / 0–95 % RH |
| Included Accessories | |

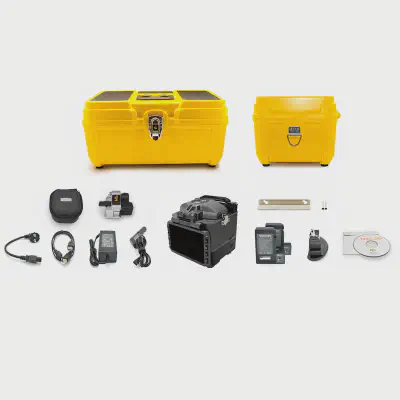

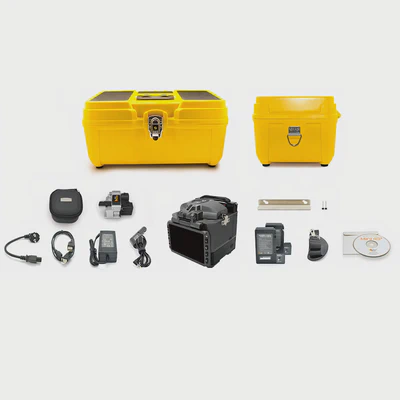

| Standard Package | Mini 5C+ Premium Splicer, Mini 60A Cleaver, Cleaver soft case, Power cord, Car cigar cable, AC adapter, SOC heater block, SOC holder, Cooling tray, Spare electrodes, Battery pack, USB cable, User manual CD, Shoulder strap, and Hard carrying case |
| FiberFox Mini 5C+ Variants | |
| FOX-5C+-KIT | FiberFox Mini 5C+ Premium Standard Package (Splicer + Cleaver + Accessories) |
