- One-click operation
- Typical cleave angle ≤0.5 degrees
- Easy rotating blade wheel
- 60,000 cycle blade lifespan
- Cleave length 10 to 20 mm for single fibre
- Ribbon capability up to 12 fibres
- Integrated digital counter
- Auto chip collector
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

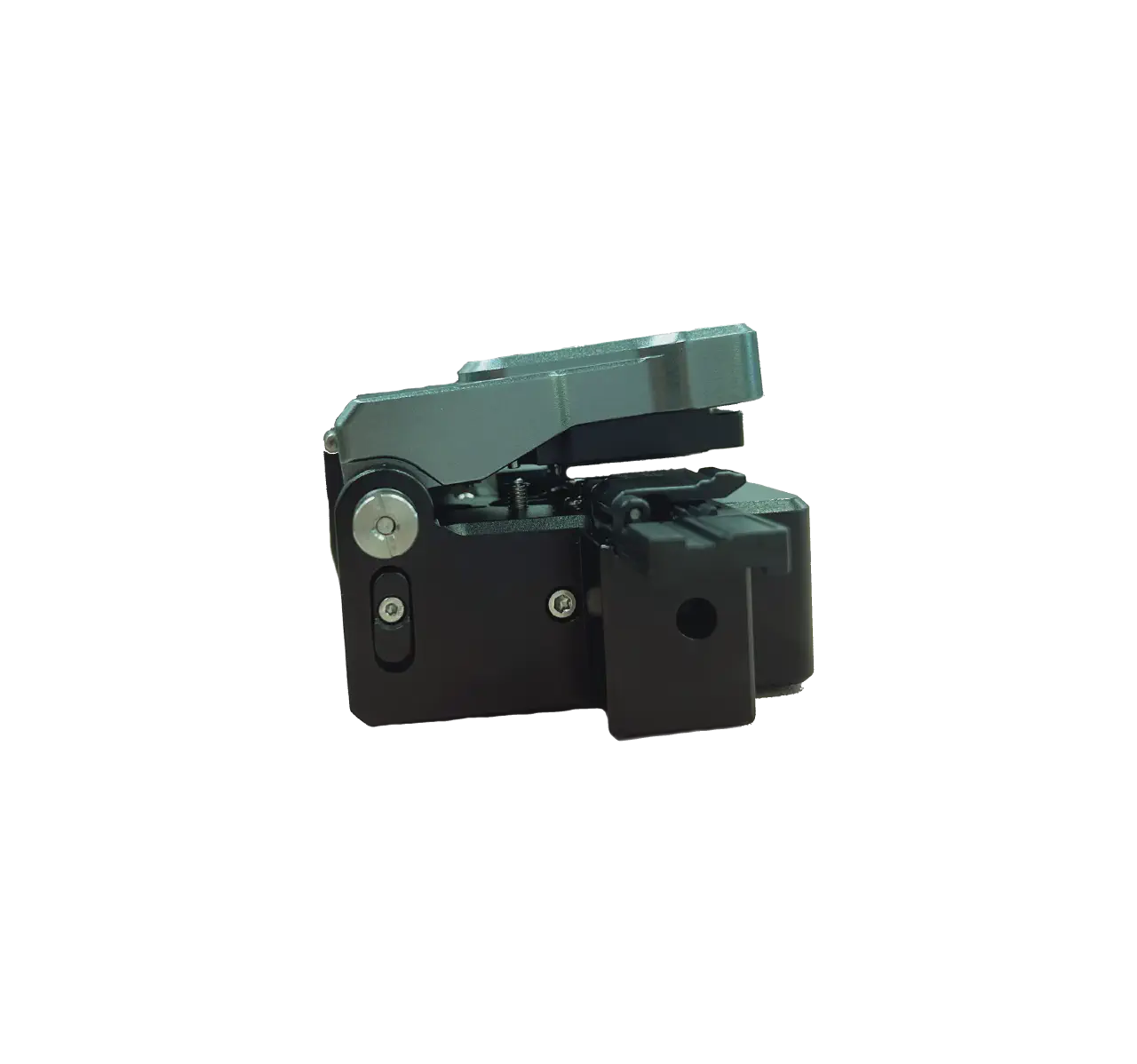

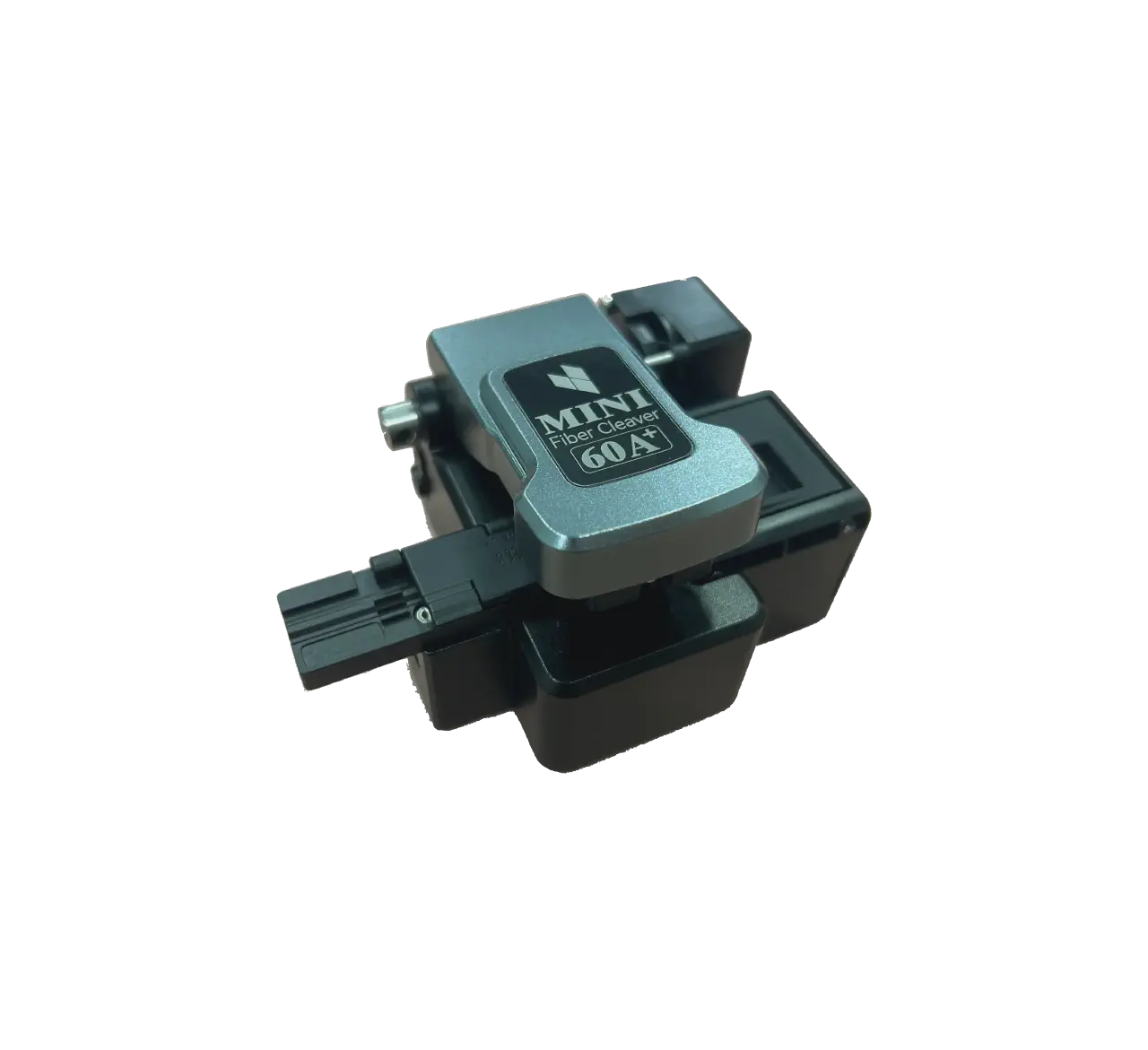

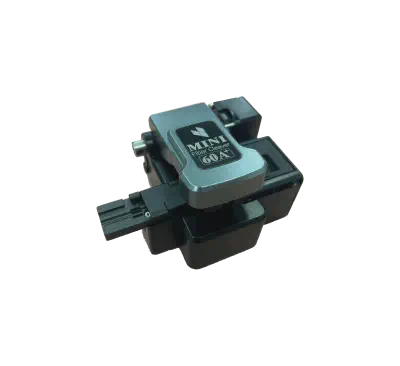

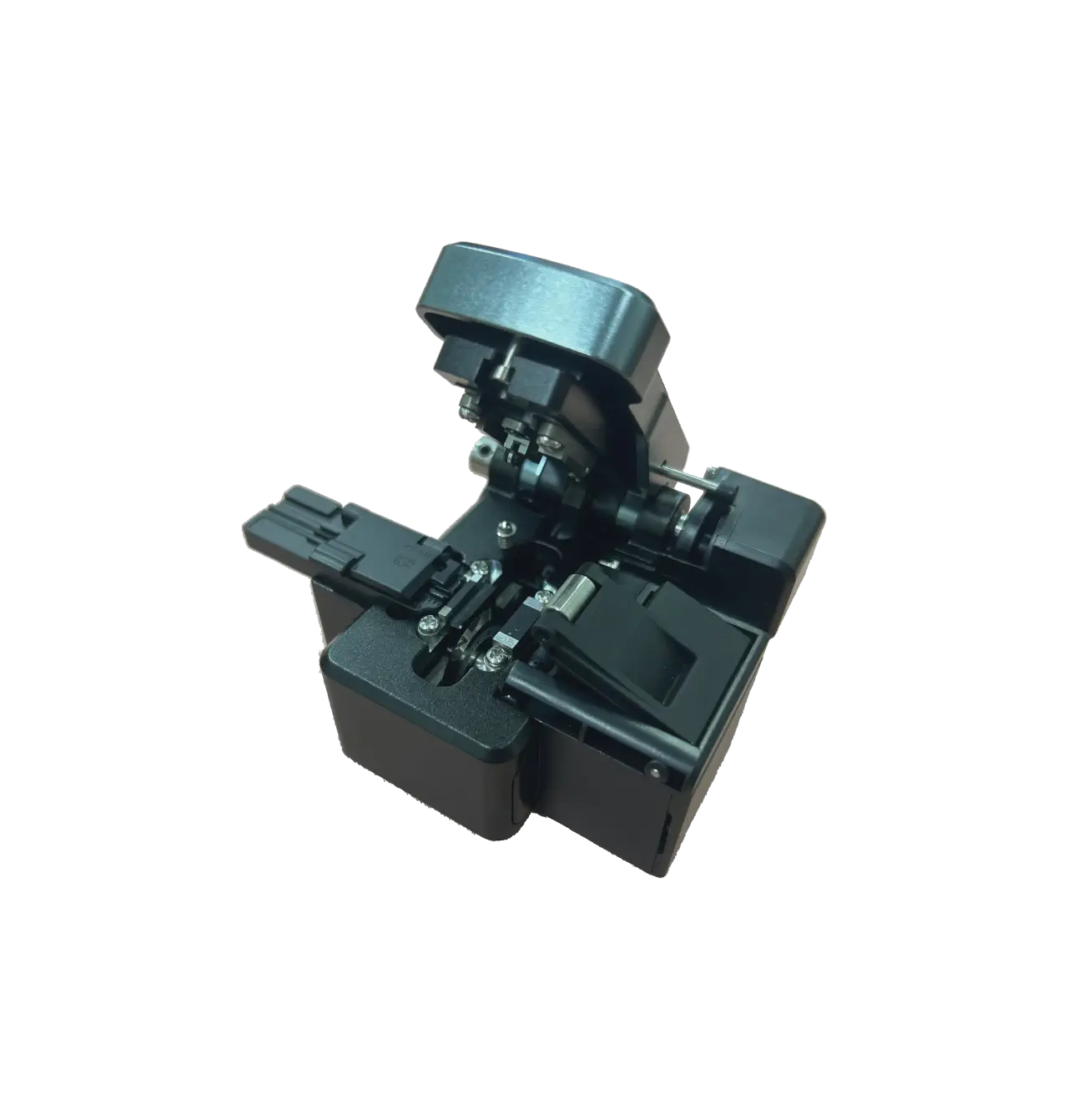

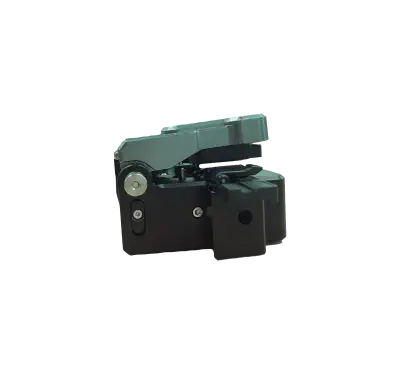

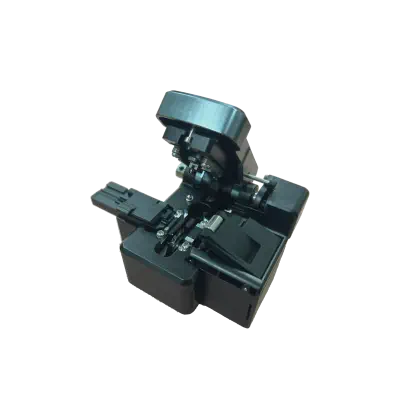

The FiberFox Mini 60A is a compact precision cleaver engineered for fast, repeatable fibre preparation across field and production workflows. The mechanism uses a single push action to tension and cleave the fibre in one controlled motion. The platform maintains a consistent cleave angle within 0.5 degrees for single fibre and ribbon formats.
The base integrates a digital counter for accurate blade life tracking, along with an auto chip collector to contain fibre waste. A rotating blade wheel offers quick indexing across positions during the full 60,000 cut lifespan. The modular holders support 250 µm, 900 µm and 3 mm single fibre cable, and up to 12-fibre ribbon using the interchangeable ribbon holder.
Its compact form factor and stable chassis design support precise cleaving with minimal setup time for splicing, termination and ribbon preparation.
| Technical Specifications | |
| Type | Single and ribbon fibre cleaver |
| Operation Method | One-click cleaving |
| Weight and Dimensions | 265 g / 105 × 108 × 56 mm with chip collector, 105 × 90 × 56 mm with trash bin |
| Cladding Diameter | 80 to 125 µm |
| Cleaving Length | Single fibre 10 to 20 mm / Ribbon fibre 10 mm |
| Cleaving Angle | Single fibre 0.3 to 0.9 degrees (0.5 degrees average) Ribbon fibre 0.3 to 1.2 degrees (0.5 degrees average) |
| Typical Blade Life | 60,000 cleaves |
| Holder Types | Universal 0.25 to 3.0 mm / Ribbon holder (2, 4, 6, 8, 12 cores) |
| Integrated Functions | |
| Digital Counter | Cleave count display for blade indexing and maintenance |
| Blade Rotation | Indexed rotation for uniform blade wear |
| Chip Collection | Automatic chip collector for controlled debris capture |
| FiberFox Mini 60A Variants | |
| FOX-60A | FiberFox Mini 60A High Precision Cleaver |
