- Bluetooth (BLE) connectivity to Smartphone App
- NFC Tagging for closure information
- Digital Marking Sheet replaces paper to prevent errors
- One-hand operation reduces disconnection risk
- Security via NFC encryption and App log-in
- Ultra-lightweight 120g design
- Low Insertion Loss (< 0.5 dB @ 1310 nm)
- Real-time status uploading and cloud storage
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

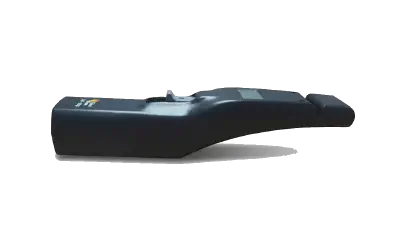

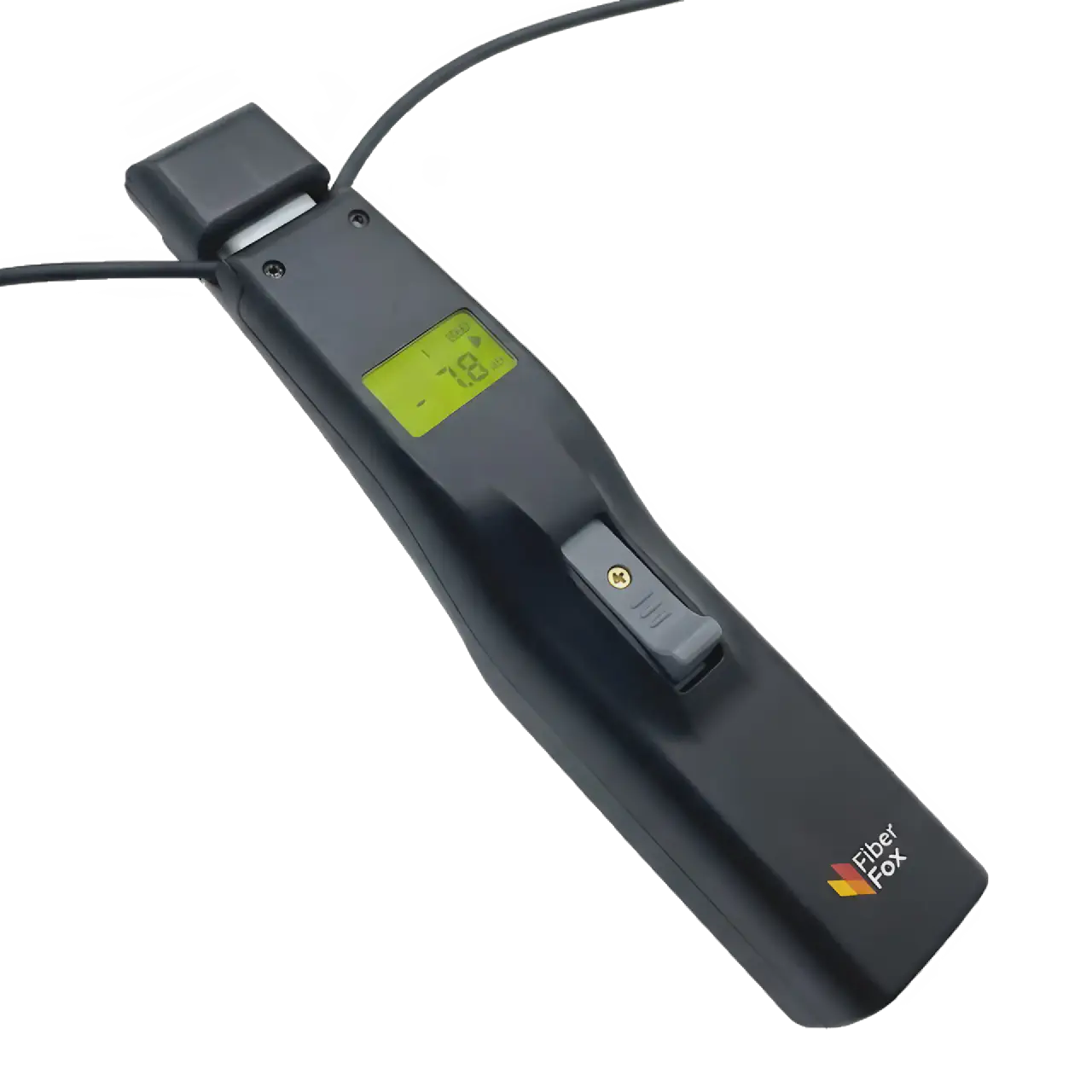

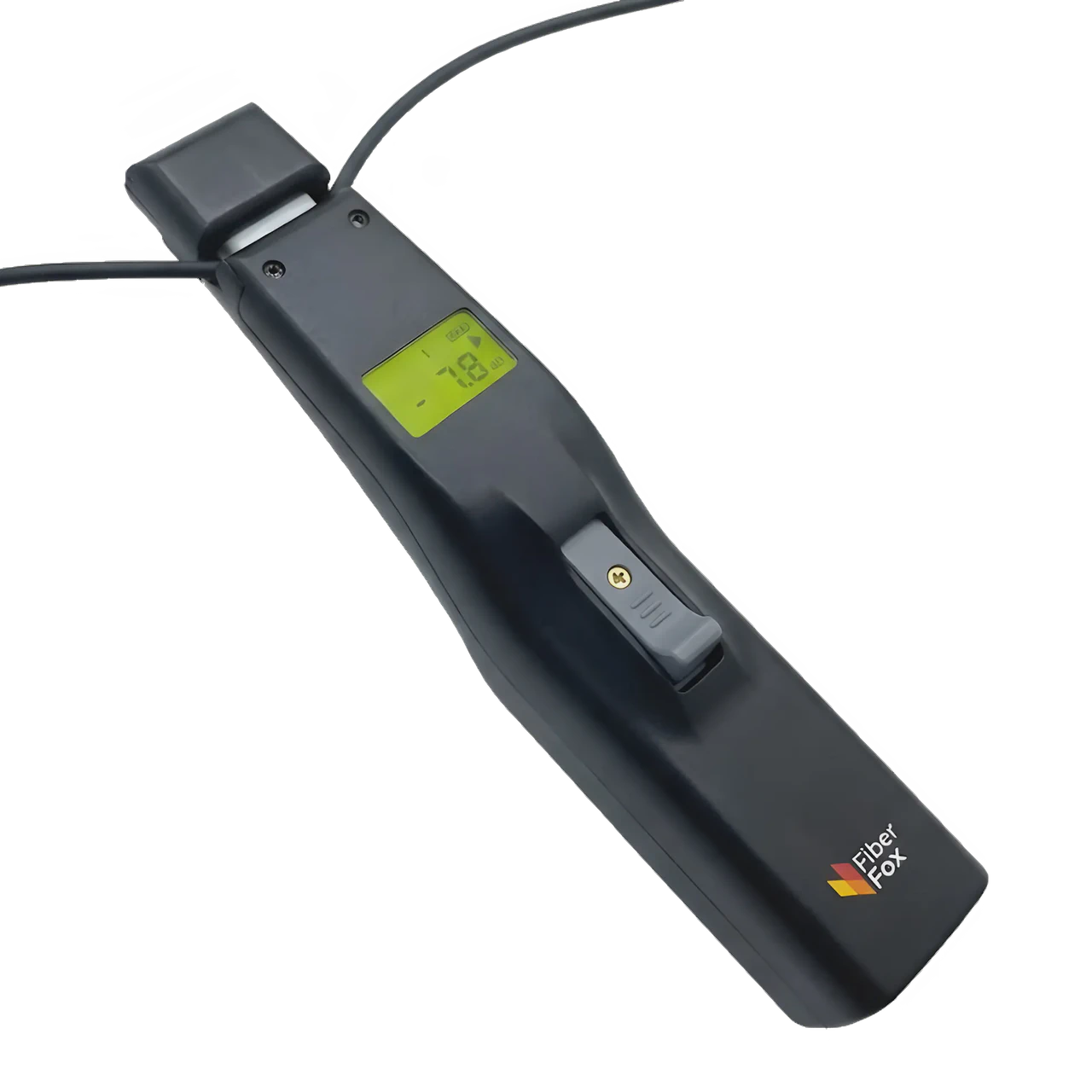

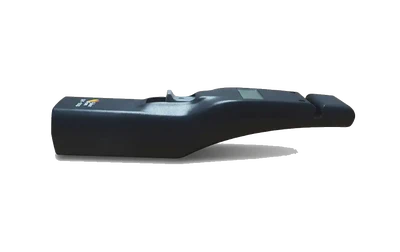

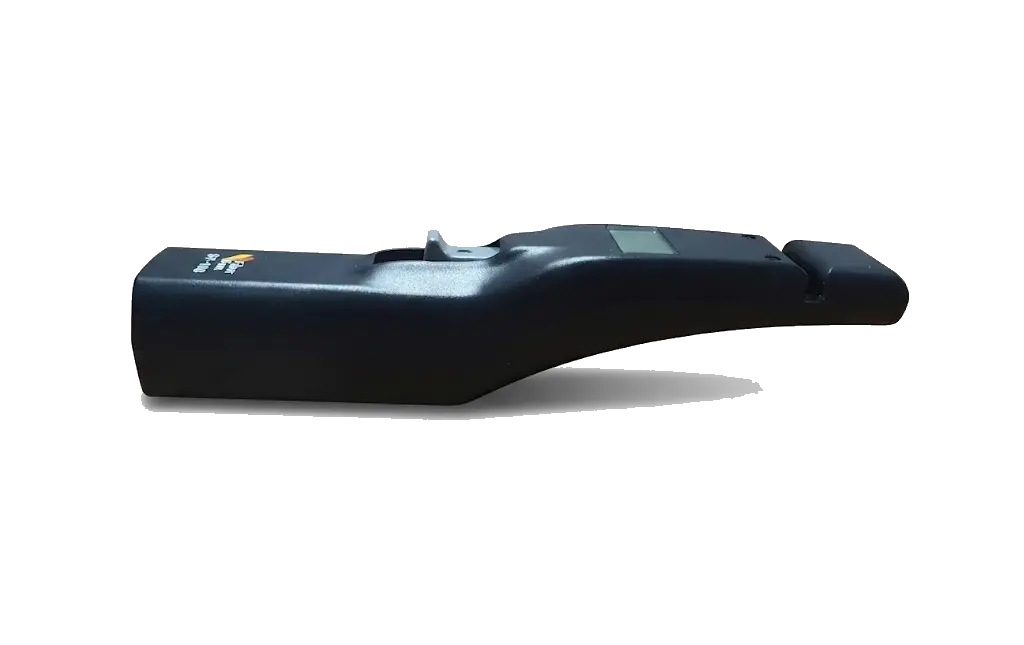

The FiberFox SFI-10B is a smart, intelligent optical fiber identifier designed to modernise field maintenance. By integrating NFC and Bluetooth (BLE) technology, it connects directly to a smartphone app, enabling a "Digital Marking Sheet" workflow. This allows technicians to upload real-time status updates and record line information immediately to NFC tags on closures, replacing traditional paper records.
Engineered for safety and efficiency, the SFI-10B allows for true one-hand operation. It eliminates the need to manually hold the fiber during testing, significantly reducing the risk of accidental disconnection. The digital integration prevents human errors associated with handwriting (loss, damage, or humidity) and enhances security through NFC tag encryption and app login requirements.
Weighing only 120g (160g with batteries), the SFI-10B is highly portable while delivering professional performance. It features a low insertion loss of < 0.5 dB (at 1310nm), a wide detection range of 800–1700nm, and supports various signal tones. Powered by standard AA batteries, it provides over 5,000 readings, making it a reliable tool for extensive field use.
| General Specifications | |
| Interface | Bluetooth (BLE) via Smartphone APP / NFC via Closure |
| Dimensions | 194 x 38 x 34 mm |
| Weight | 120g (160g with batteries) |
| Power Supply | 3V (AA x 2 alkaline) |
| Battery Life | > 5,000 readings |
| Optical Performance | |
| Detection Sensitivity | -45 dBm @ 1310 nm, -50 dBm @ 1550 nm |
| Measurement Range | -50 to +10 dBm |
| Insertion Loss | < 0.5 dB @ 1310 nm, < 2.0 dB @ 1550 nm |
| Detected Wavelengths | 800 – 1700 nm |
| Detected Tones | 270Hz, 330Hz, 1kHz, 2kHz |
| Signal Direction | Left, Right |
| Cable Diameter Range | 250 µm – 3 mm |
| SFI-10B Configuration | |
| FOX-SFI-10B | FiberFox SFI-10B Smart Optical Fiber Identifier |
